500 SERIES INSTALLATION MANUALJULY 2016 PAGE 51

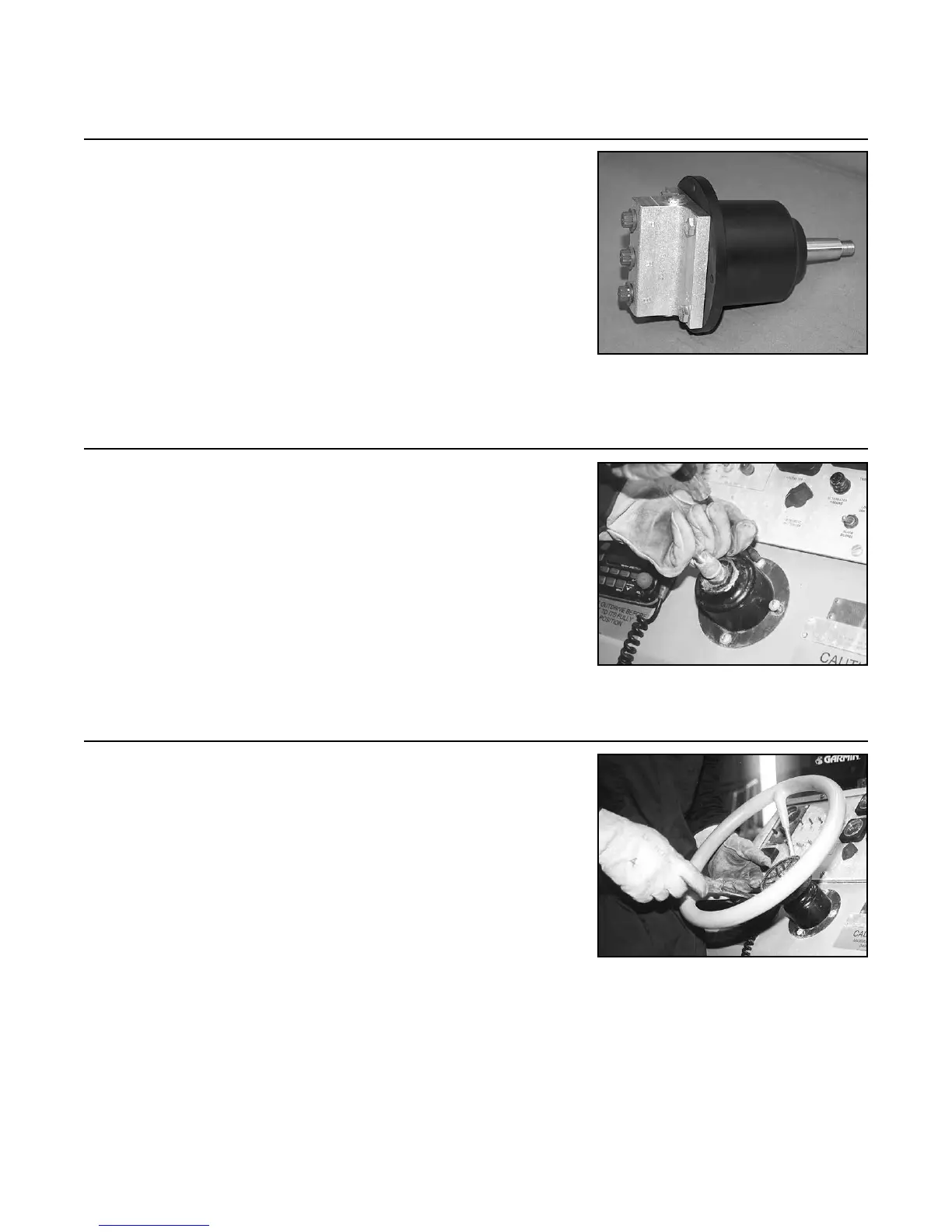

13.5 Determine the correct mounting location for the helm
assembly.
NOTE: Be sure there is adequate clearance under the
dash for the helm assembly and hoses.
NOTE: Be sure there is adequate clearance above the
dash for the steering wheel.
Lay out and cut/drill the appropriate area described by the
template provided from the manufacturer.
13.6 Install the helm assembly with the hardware provided.
13.7 Install the steering wheel with the hardware provided.
Step 13: Manual Hydraulic Steering Installation (continued)
FIGURE 13E
FIGURE 13G
FIGURE 13F
