500 SERIES INSTALLATION MANUAL JULY 2016PAGE 52

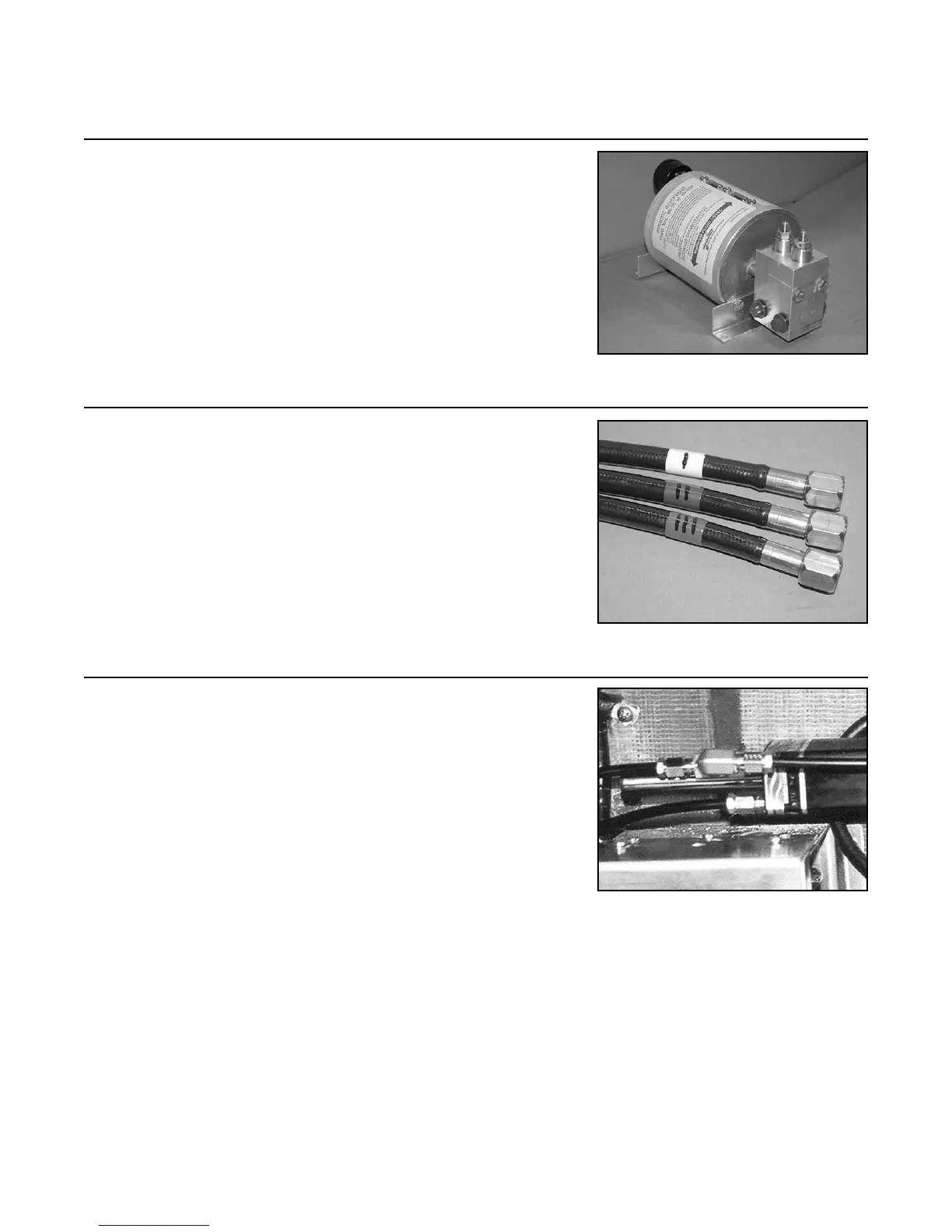

13.8 Determine the correct location and mount the reservalve.
13.9 Mark/identify the two (2) steering lines/hoses (port
and starboard). Run the two (2) lines from the steering
cylinder to the reservalve. Mark/identify the three (3)
steering lines/hoses (port, starboard and reservalve). Run
the three (3) lines from the reservalve forward through
the starboard raceway, and up to the helm assembly.
Fasten lines as necessary. Bundle/coil excess and secure
if necessary.
13.10 Attach the two (2) hydraulic steering lines to the steering
cylinder assembly, observing port and starboard identi-
cation.
NOTE: Please refer to the 30-462R routing diagram
(Figure H on page 54 in this manual) for assistance and
further explanation.
Step 13: Manual Hydraulic Steering Installation (continued)
FIGURE 13J
FIGURE 13I
FIGURE 13H
To Next Page
