500 SERIES INSTALLATION MANUALJULY 2016 PAGE 59

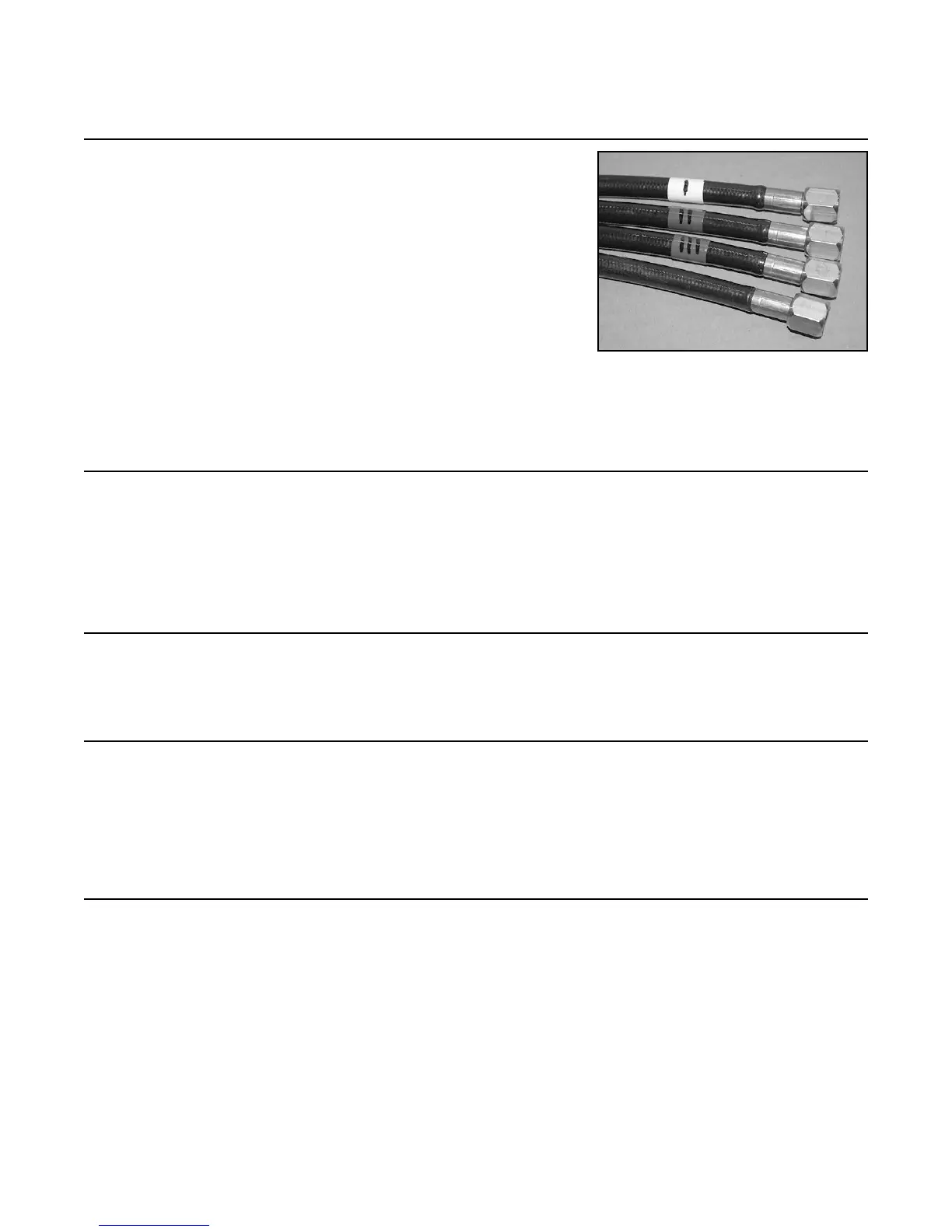

FIGURE 14O
Step 14: Power Steering System Installation (continued)
14.13 Mark/identify each of the four (4) steering lines/hoses
(high pressure, return, port and starboard) that run forward
from the engine compartment. Run the four (4) lines from
the engine compartment forward through the starboard
raceway, and up to the helm and lock valve assembly.
Fasten lines as necessary. Bundle/coil excess and secure
if necessary.
14.14 Using the routing diagram 30-390R (Figure I on page 60
in this manual), connect the four (4) lines/hoses run in
the previous step. Also using the diagram, hook up the
remaining ve (5) hoses, numbered 1, 2, 7, 8 and 9.
14.15 Fill the steering uid reservoir and power steering pump
with the appropriate uid.
14.16 Bleed system per manufacturer’s specications.
NOTE: Additional uid may need to be added during the
bleeding process.
14.17 Check system for leaks.
