19.3 Mount Konrad transom assembly (30-014) to outside of
transom plate (12-268). Be sure appropriate hoses and
cable are fed through plate and cutout. Tighten washer
(10-415) and nut (10-334) to the top two (2) and bottom
two (2) studs on the gimbal housing.
Torque to 35 lb-ft (48 Nm).
19.4 Slide tailhousing mount assembly (30-450) onto middle
four (4) studs of gimbal housing. Tighten washer (10-
415) and nut (10-334) to the middle four (4) studs on the
gimbal housing.
19.5 Connect tiller arm continuity cable to inner steering plate
using the small Phillips head screw (if applicable).
Step 19: Rear Mount / Tailpiece Installation

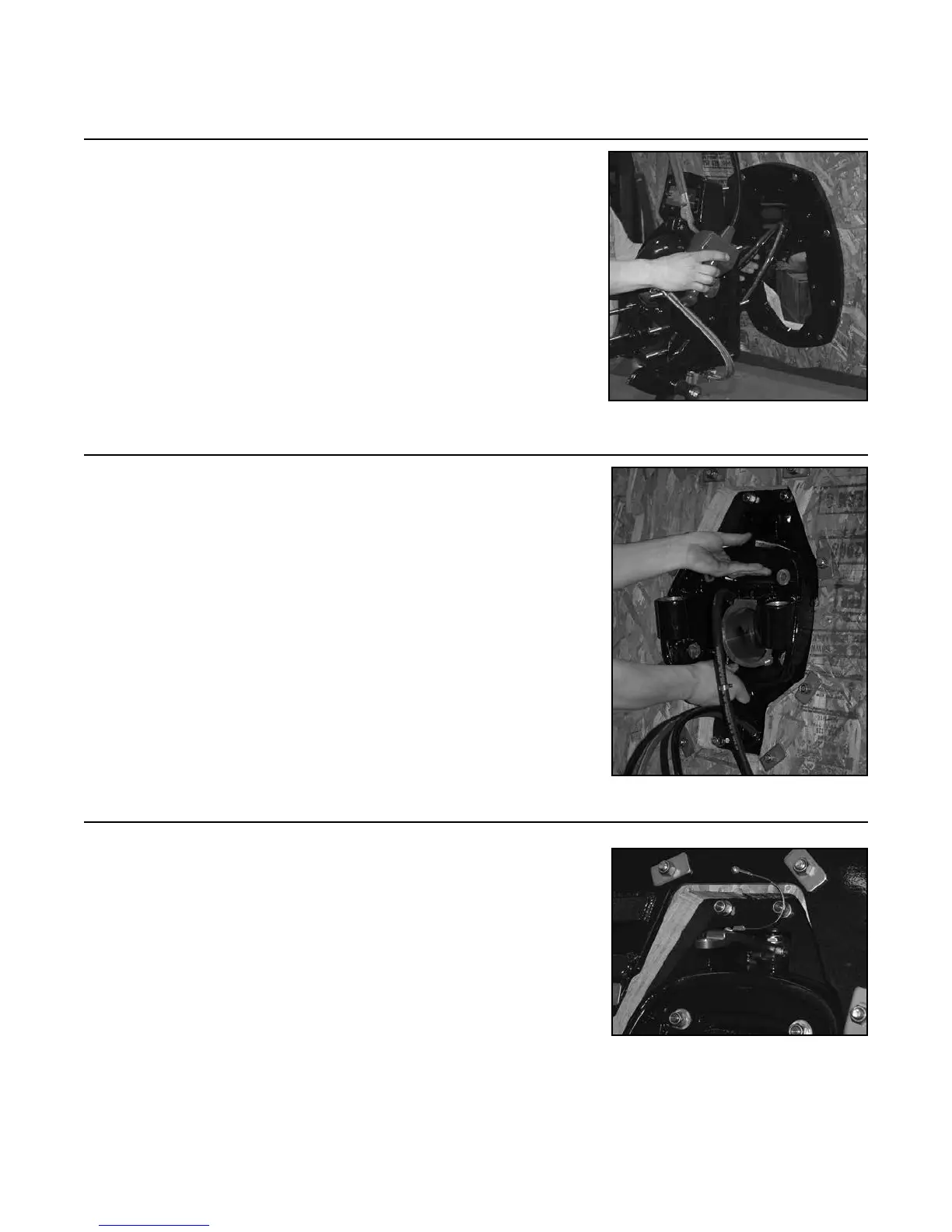

FIGURE 19D
FIGURE 19E
FIGURE 19F
