500 SERIES INSTALLATION MANUAL JULY 2016PAGE 76

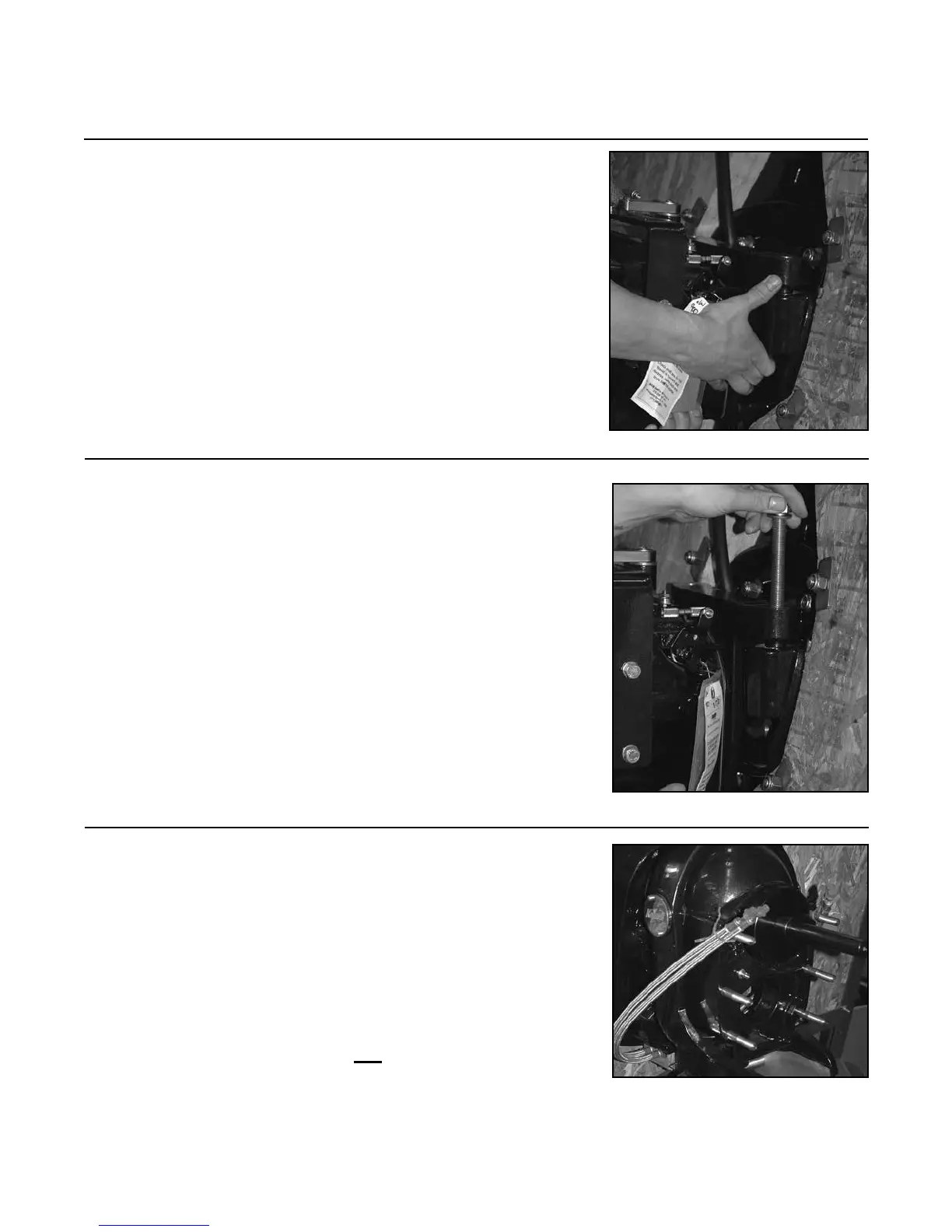

19.6 With Konrad tailpiece assembly (30-807) mounted on the
transmission and the transmission mounted on the engine,
position the tailpiece on the bore and move into place
until the ears on the tailpiece align with the mounts on the
tailpiece mount (30-450).
NOTE: It is recommended that Steps 3 and 4 of this
manual are completed prior to proceeding with 19.6.
19.7 Insert washer (12-085) and bolt (12-084) through tailpiece
ears in two (2) places. Secure with washer (12-085) and
nut (12-086) on bottom side of tailpiece mount.
Tighten and torque two (2) bolts to 90 lb-ft (120 Nm).
19.8 For nal alignment, slide rod of alignment tool (TO-094)
through bell housing and into tailpiece (30-449). Slide
disc of alignment tool (TO-094) over rod. Adjust front
engine mounts until disc fully slides into bore of bell
housing.
The Rear Mount / Tailpiece Installation is complete.
Please continue with Step 5 OR Step 3 if not completed
yet of this manual to proceed with installation
Step 19: Rear Mount / Tailpiece Installation
FIGURE 19G
FIGURE 19H
FIGURE 19I
