Connecting the Optional FC6 Foot Controller
The optional FCE Foot Controller can be connected to the At to control program changes
and individual effect ON and OFF commands.
The A1 can be controlled by the FC6 in either of the following manual modes.
Manual 1: Program Change Mode: Program changes on the A1 are triggered by the FC6.
Manual 2: Effect ON/OFF Mode: Individual effects in A1 programs can be turned ON and
OFF from the FC6.

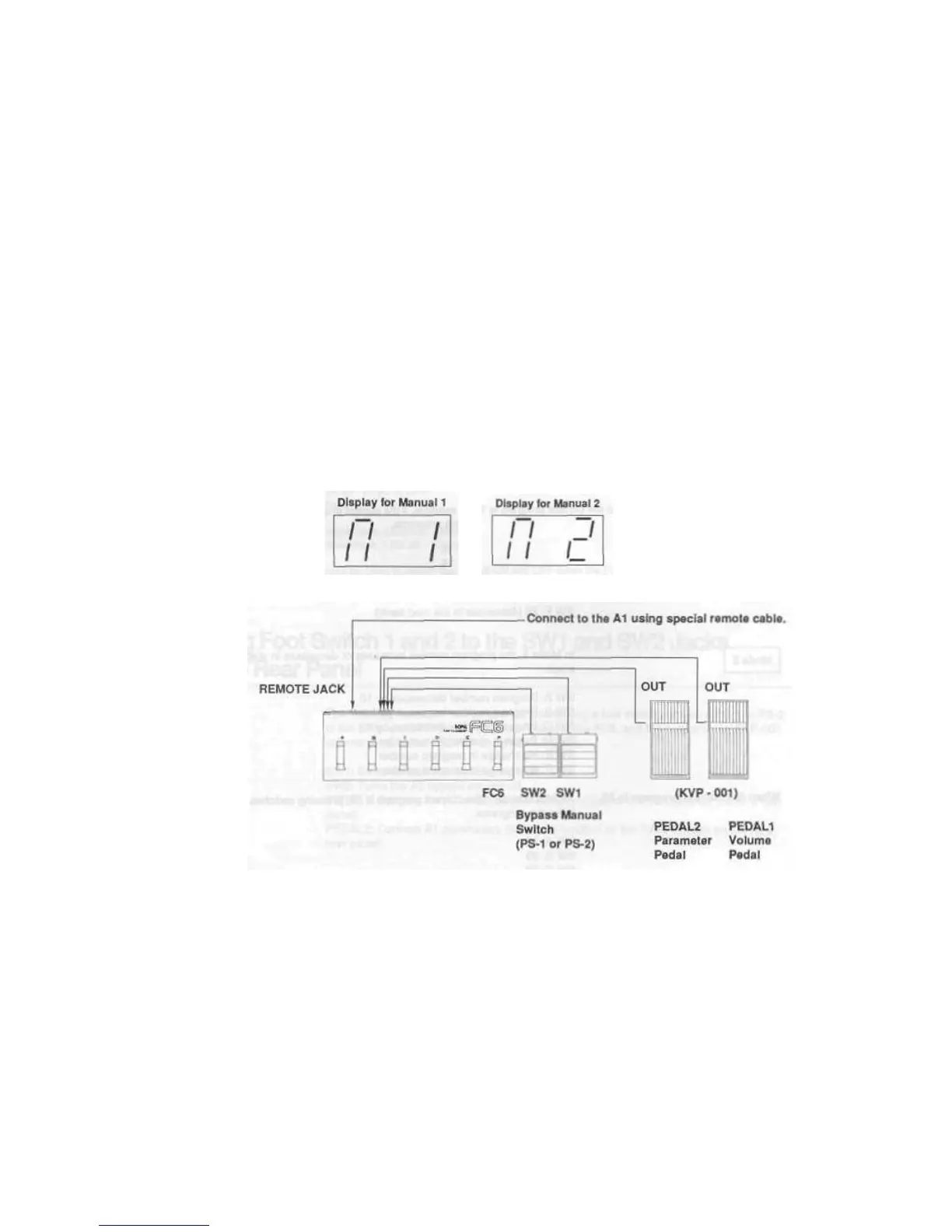

1. Switching between Manual 1 and 2 using a foot switch such as the PS-1
● Connect the foot switch (PS-1, etc.) to the SW1 jack on the rear panel of the FC6.
● Manual 1 and 2 are alternated each time the foot press is pressed.
2. Switching between Manual 1 and 2 without a foot switch
● Press the UTILITY Mode key on the FC61O show the manual mode status on the
display.
● Press any of the pedal switches (A to F) to switch between Manual f and Manual 2.
● After selecting the manual mode, press the UTILITY Mode key again.
