CardioCoach PRO User Manual | Page 90

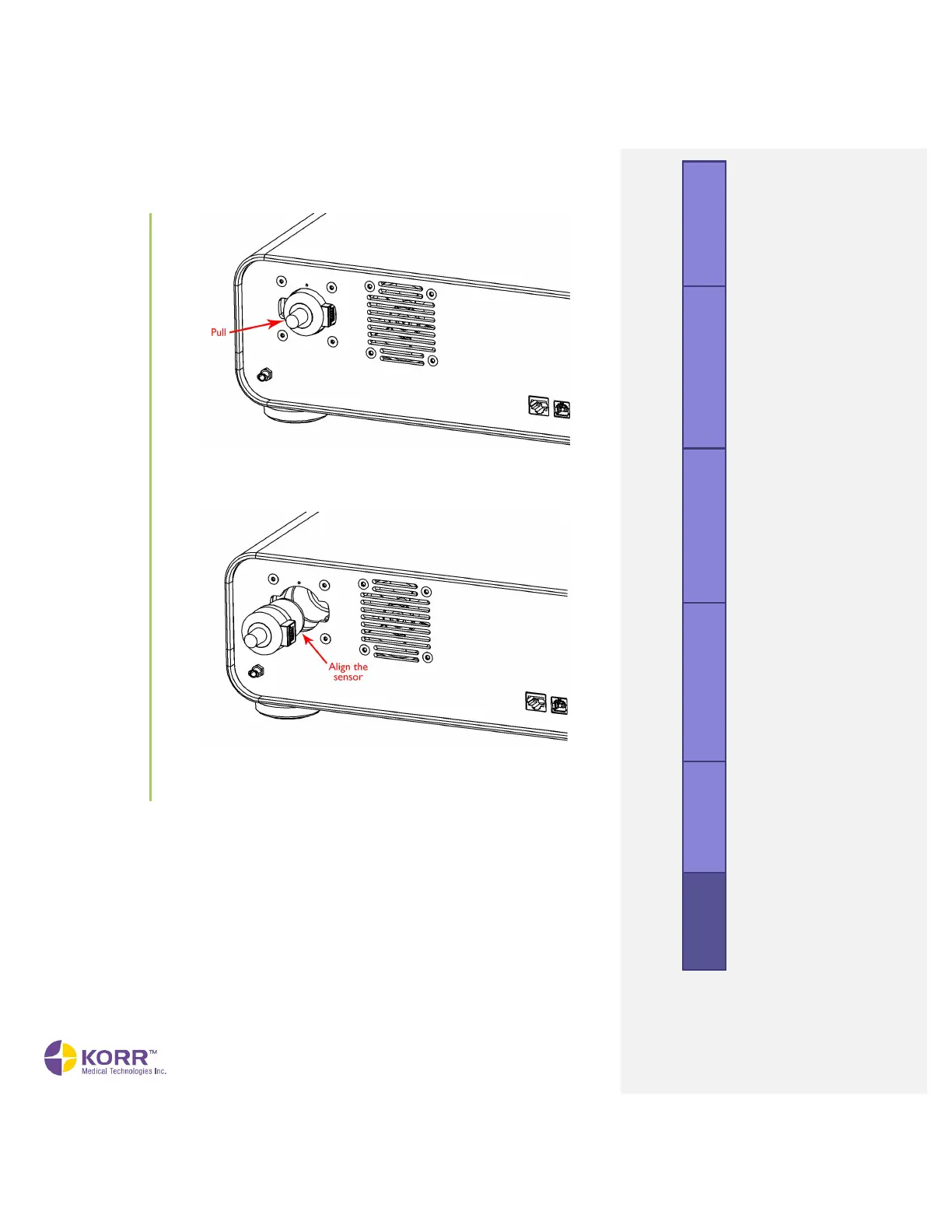

6. Remove the new O
2
sensor assembly from the packaging. Align the
bump-out with the electrical contacts to the groove on the right side
of the sensor housing.
7. Push the O
2
sensor assembly straight in until it comes to a stop.
There will be a little resistance as the electrical contacts seat before
the hard stop.
