Self-consumption
8.3 Active power control with a
ripple control receiver
The active power of the inverter can be controlled
directly by the energy supply company via a ripple con-
trol receiver.
With this technology, the generated power can be
regulated at four levels:
n
100 %
n
60 %
n
30 %
n
0 %
100 %
EVU
60 %
30 %
0 %

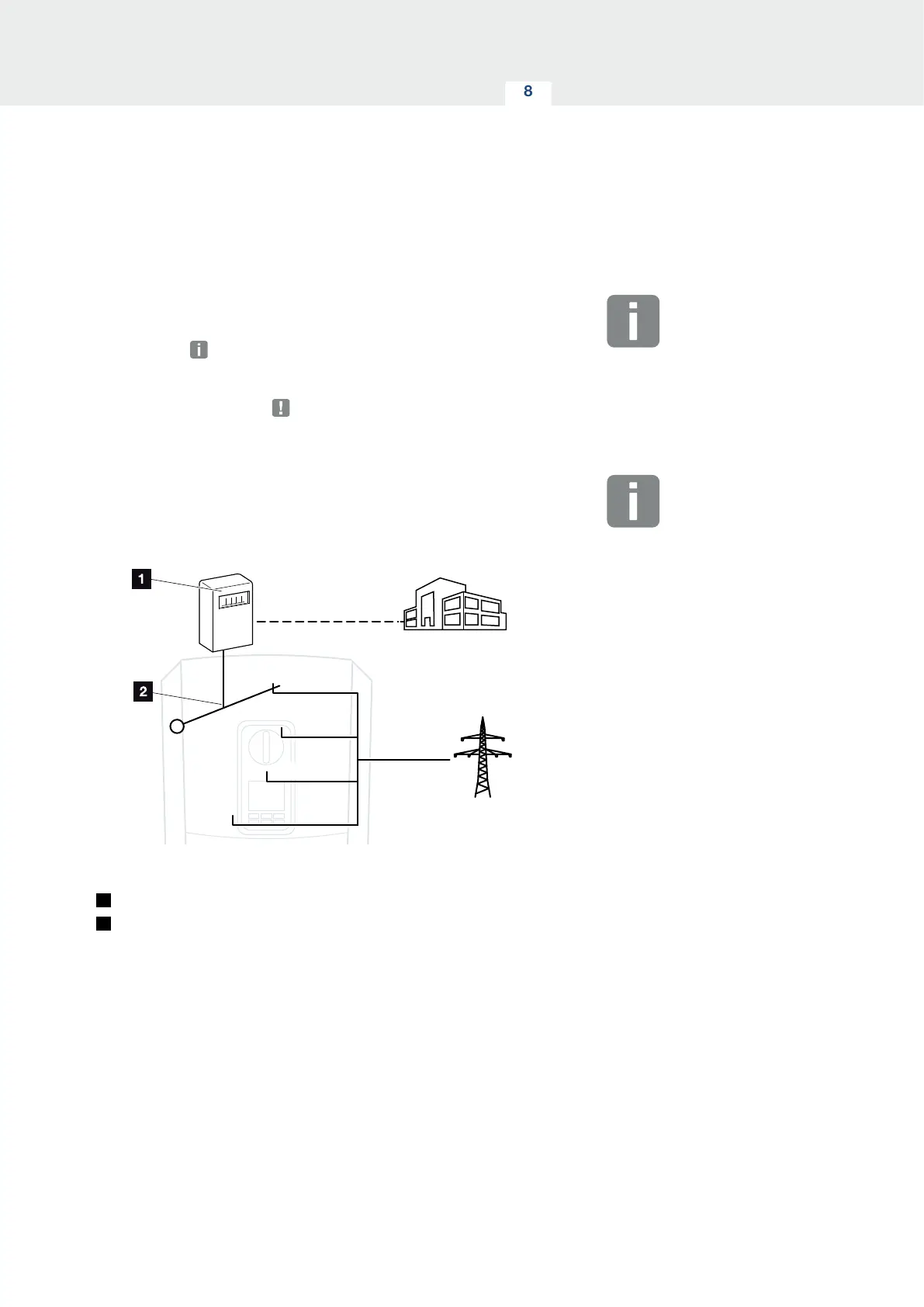

Fig. 58: Active power control with ripple control receiver
1
Ripple control receiver
2
Control electronics of the inverter
INFO
The ripple control receiver can be
connected directly to the inverter’s
Smart Communication Board.
INFO
The four standard specifications for
the power limitation can be changed
using the Webserver. However, the
provisions of the energy supply com-
pany must be observed.
