Installation
3.8 Connection for self-consumers
max
250 V/100mA
230 V ≈
X461
X461

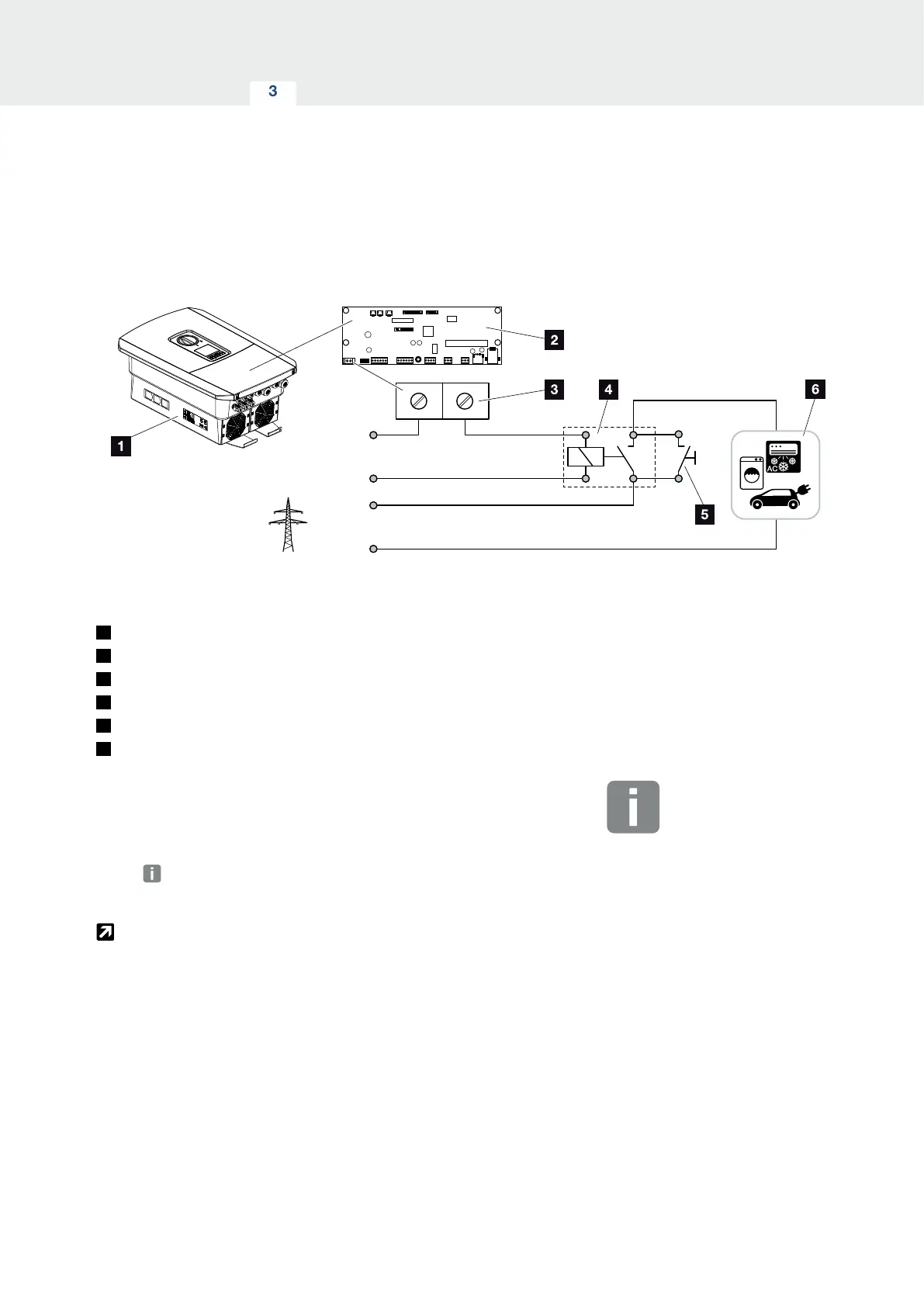

Fig. 31: Connection for self-consumers
1
Inverter
2
Smart Communication Board
3
Terminal for self-consumption
4
Load relay
5
Jumper switch
6
Consumer device
The inverter allows consumers to be connected to it via
an external load relay. The consumers can then be
switched on when there is sucient PV power and
thereby access the PV energy generated at that point in
time.
More information about the connection and configuration
Ch. 9.
H
Self-consumers connected.
INFO
The control line is subject to the fol-
lowing requirements:
n Wire cross-section of
0.14 - 2.5 mm
2
(rigid)
0.14 - 1.5 mm
2
(flexible)
n Max. length 30 m
n Length of stripped insulation
5.5-6.5 mm
