Device and system description
2.2 The inverter
Exterior view of the inverter

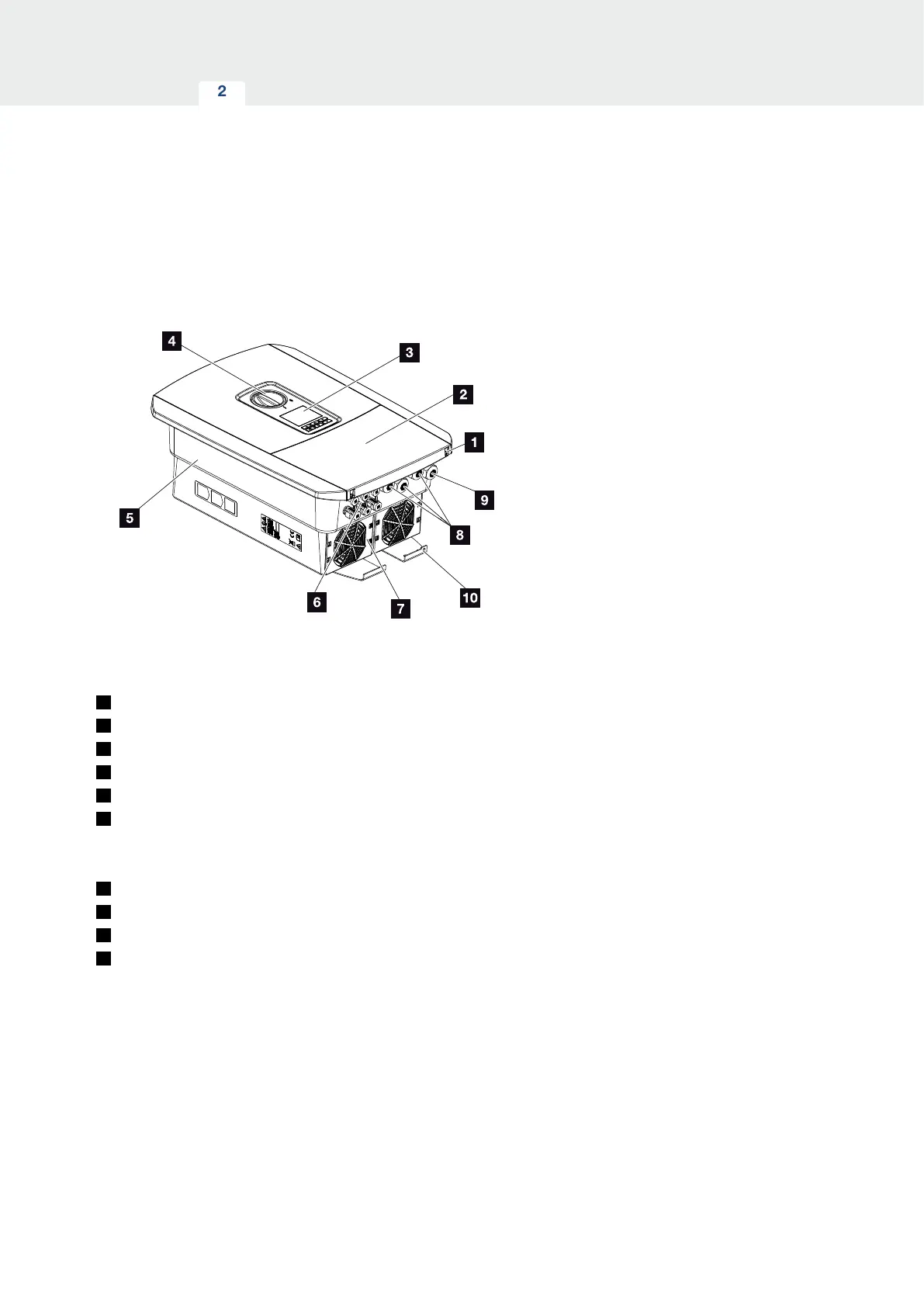

Fig. 9: Inverter (exterior view)
1
Cover screws
2
Cover (terminal compartment)
3
Display
4
DC switch
5
Housing
6
Plug connector for connecting the PV generators
and battery system (battery connection only available
after activation)
7
Fan
8
Cable openings for communication
9
Cable opening for mains cable
10
Additional PE connection, outside
