Installation
1. Tighten all cable glands and check that they are
properly sealed.
2. Check the fit of connected wires and strands in the
inverter.
3. Remove any foreign objects (tools, wire cuttings, etc.)
from the inverter.
4. Install the terminal compartment cover and screw it
tight (2.0Nm).
5. Fit cover on inverter and screw it tight (1.5Nm).
2,0 Nm
1,5 Nm

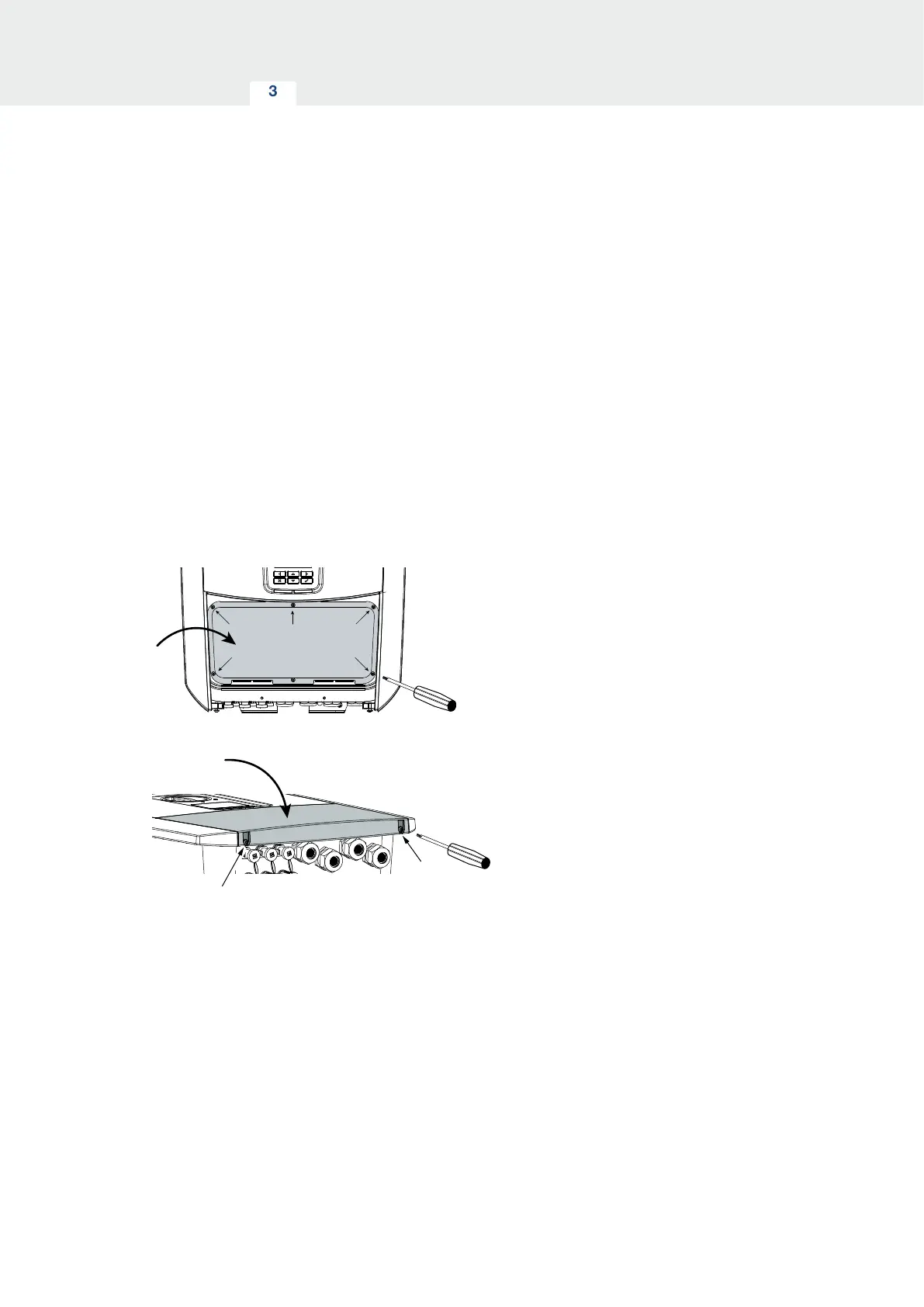

Fig. 36: Closing the inverter
3.11 Closing the inverter
