Appendix
13.1 Type plate
XXXXXXXXXXXXXXXX
Item no.: XXXXXXXX
XXXXXABCXXXXX
Hanferstraße 6 – D-79108 Freiburg, +49 (0) 761-47744-100
www.kostal-solar-electric.com
DC input: AC output:Vmpp: = XXX...XXX V
Vdcmac = XXX V
Idcmax = XX.X A
Iscmax = XX.X A
VBatt_max = XXXV
IBatt_max XX.X A
Protective Class I, IP 55, -20°C...60°C, OVC DC:II / AC:III, VDE V 0126-1-1
Made in Germany
WARNING: dual supply
Isolate on-site generator at:
isolate mains supply at:
Do not work on this equipment until it is isolated from both mains and on-site generation
supplies:
Art. No.: NNNNNNNN
Ser. No.: XXXXXABCXXXXX
HW: YYXXXX PAR: XX.XX
FW: XX.XX UI: XX.XX
Service update: XXXXXXXX
Master key: XXXXXXXXXX
3N~
Vac,r = XXX V
fr = XX Hz
Iacmax = max. XX.X A
Sac,r = XXXXX nVA
cos φ = X.X...1
xxxxxxxxxxxxx
5 min.

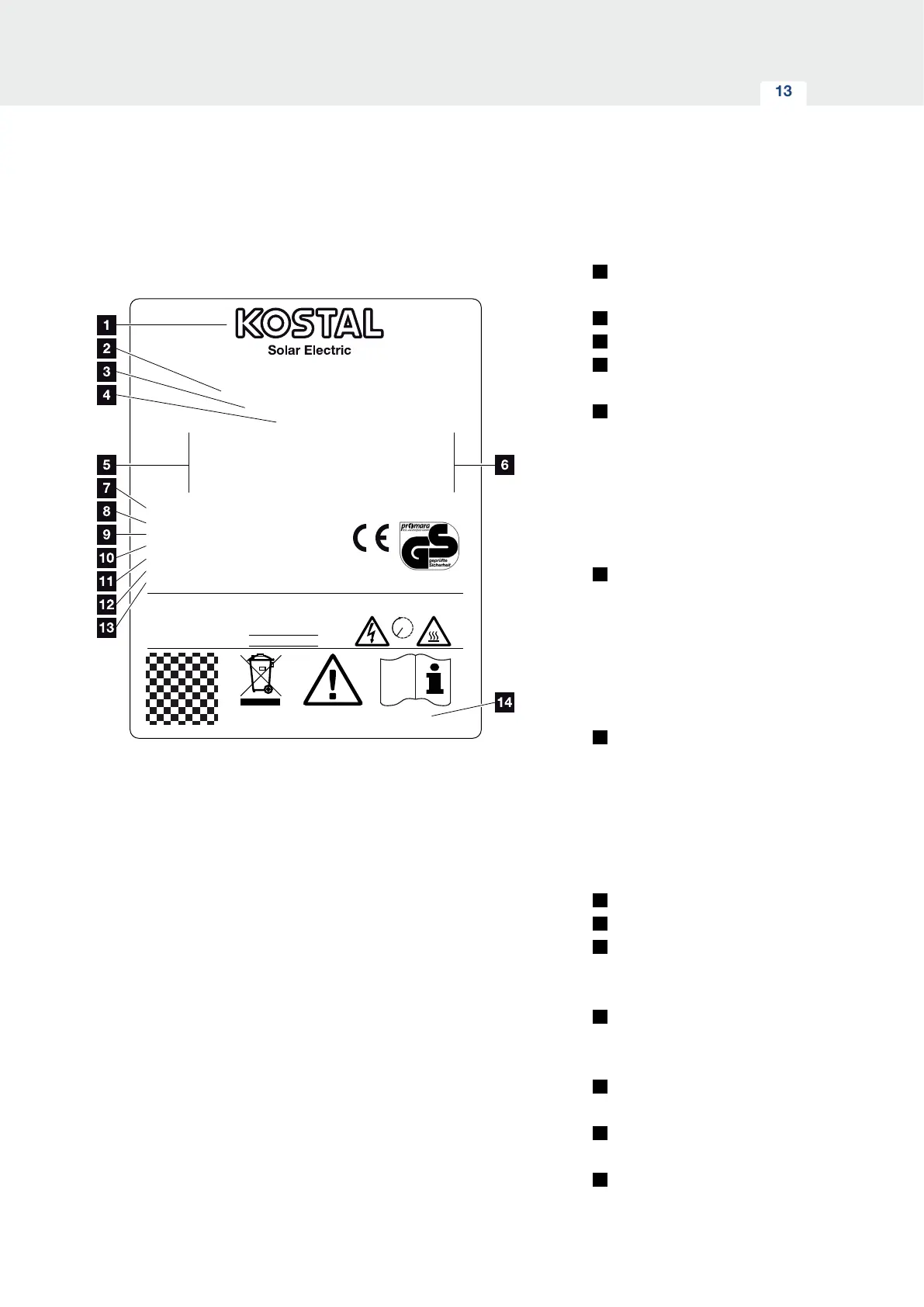

Fig. 75: Type plate
The type plate is located on the inverter. You will find the
device type and the most important technical data listed
on the type plate.
1
Name and address of
manufacturer
2
Device type
3
Article number
4
Additional designation
(e.g. service device)
5
Details of the DC input:
- MPP control range
- max. DC input voltage
- max. DC input current
- max. DC short-circuit current
- max. DC battery input voltage
- max. DC battery input current
6
Details of the AC output:
- number of feed-in phases
- output voltage (nominal)
- grid frequency
- max. AC output current
- max. AC power
- setting range of power factor
7
Protective class in accordance
with IEC 62103, protection
class, ambient temperature
range, overvoltage category,
requirements with which the
integrated grid monitoring
complies
8
Internal article number
9
Serial number
10
Version number of hardware,
version number of parameter
set
11
Version number of the firmware,
version number of the user
interface of the device
12
Date of last update
(only for service devices)
13
Master key password for install-
er’s Webserver login
14
Removable warranty label
