19.14.2 Setting the Lateral Plunger Blades
Pos: 93.83.10 / BA/Einstellunge n/Großpackenpr esse/Presskol beneinstellung/ Seitliche Presskolb enmesser einst ellen Bild 129 0 HDP II / 870 / 4x4 @ 354\mod_ 14381783117 37_78.docx @ 2645226 @ @ 1
X
1
Fig.
201

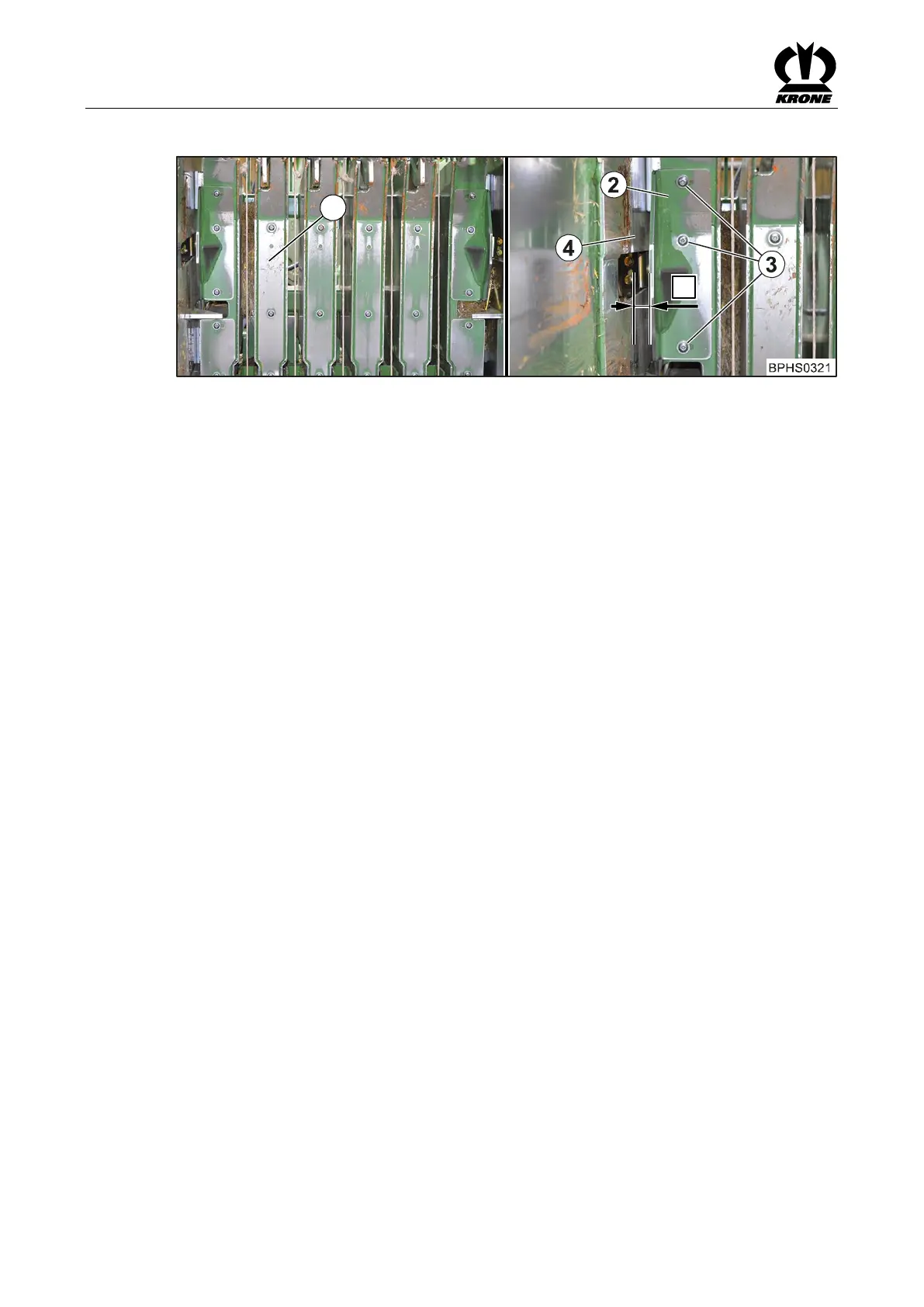

1) Plungers
3) Screw
2) Lateral plunger blades
4) Bale channel wall
The lateral plunger blades are set equally for left-hand and right-hand side of plungers. The
procedure described below to set the lateral plunger blades therefore applies to both sides of
the plungers.
• To secure the plungers (1), tighten flywheel brake.
• Measure the dimension X between lateral plunger blades (2) and bale channel wall (4) at the
narrowest point.
If the dimension is X=3-5 mm at the narrowest point, the lateral plunger blades (2) are
correctly set.
If the dimension is not X=3-5 mm at the narrowest point, the lateral plunger blades (2)
must be set.
• Loosen the screws (3).
• Set dimension X=3-5 mm.
• Tighten the screws (3).
• Loosen flywheel brake and turn flywheel manually in the working direction.
• To secure the plungers (1), tighten flywheel brake.
If the dimension is X=3-5 mm at the narrowest point, the lateral plunger blades (2) are
correctly set.
If the dimension is not X=3-5 mm at the narrowest point, repeat the process until the
dimension is X=3-5 mm.
