8.7 Setting the bale chute

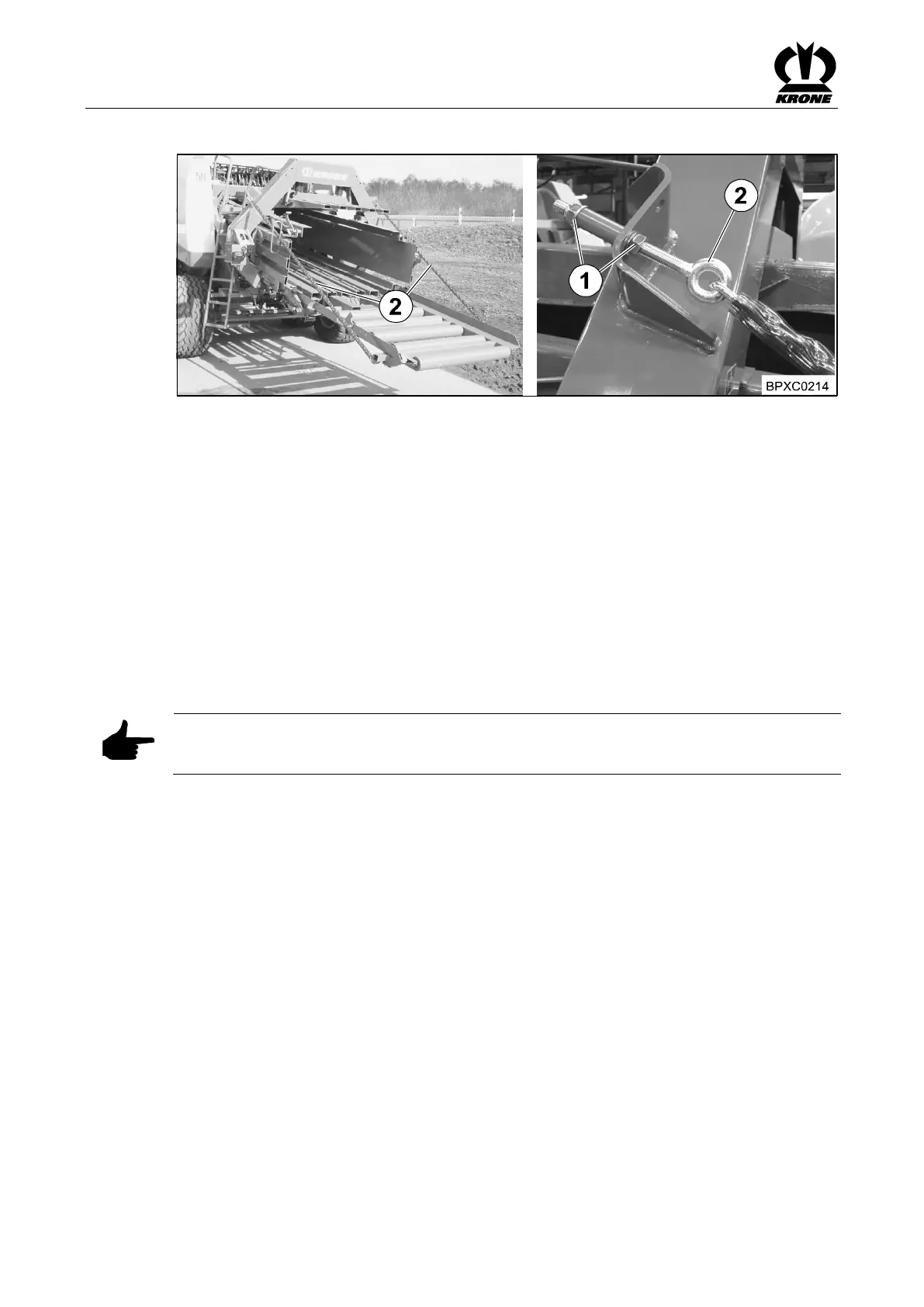

Fig.
When it is unfolded, the bale chute represents an extension of the bale channel chamber. For
big bales to be set down on the ground correctly, the back edge of the bale chute must not be
too high above the ground. Otherwise the bales will be damaged when they are placed on the
ground.
• The inclination of the bale chute to the ground can be sued to adjust the length of the
retaining chain (2) of the bale chute
• To do this, adjust the nut (1) on either side of the baling channel
Pos: 77.47 /BA/Ei nstellungen/Groß packenpres se/Ballensc hurre einstellen b ei Ausführung B allenwaage @ 3 09\mod_1417 596361061_7 8.docx @ 2397 461 @ 3 @ 1
8.7.1 With Bale Scale Design
The setting of the inclination of the normal chute to the bale scale is different. In case of the
normal chute, the bale should leave the chute quickly. In case of bale scale (optional), the bale
should remain on the chute for weighing for a short time.
• Reduce the inclination of the bale chute to the ground by means of the length of the bale
chute supporting chain (2).
• To do this, adjust the nut (1) on both sides of the bale channel.
Pos: 77.48 /BA/Ei nstellungen/Groß packenpresse/Hi nweis Ballen waage kalibrier en @ 92\ mod_13267821 25428_78.doc x @ 781789 @ @ 1
Note
If the inclination of the bale chute is changed, the bale scale must be recalibrated if the machine
has one (see chapter on KRONE ISOBUS terminal CCI "Calibrating the Bale Scale").
