11 KRONE ISOBUS Terminal [Medium/Comfort Version Electronics]
Pos: 103.2 /BA/Sic herheit/7. G efahrenhinweise alt/Achtung - T erminal schütz en @ 377\mo d_144318312 1000_78.docx @ 2736996 @ @ 1
CAUTION! Protect the terminal
Water, high air humidity and overvoltage can cause damage to the terminal.
• Protect the terminal from water.
• If the machine is not used for an extended period of time (for example in winter),
the terminal must be stored in a dry place.
• For mounting and repair jobs, especially for welding jobs on the machine, disconnect the
power supply to the terminal. The electronics of the terminal may be damaged due to
overvoltage.
Pos: 103.3 /BA/I nfo-Center/Iso-B edienung/All gemeines zu ISO BUS Systeme n_Hinweis Ko mpatibilitätstest @ 364\mod _144008277011 6_78.docx @ 26 76446 @ @ 1
Note
KRONE ISOBUS systems are regularly subject to ISOBUS COMPATIBILITY TEST (AEF
Conformance Test). The operation of this machine at least requires implementation level 3 of
ISOBUS system.
Pos: 103.4 /BA/I nfo-Center/Iso-B edienung/All gemeines zu ISO BUS Systeme n_Einführte xt @ 362\mod_1 43953741084 6_78.docx @ 266 9401 @ @ 1
The ISOBUS system is an internationally standardized communication system for agricultural
machines and systems. The designation of the related series of standards is: ISO 11783. The
agricultural ISOBUS system makes an information and data exchange between tractor and
device of different manufacturers possible. To this end, both, the necessary plug connections
and the signals are standardized which are necessary for the communication and command
transmission. The system also enables the operation of machines with control units (terminal)
which are already existent on the tractor or have been attached in the tractor cabin. The
relevant details can be found in the technical documentation of the control unit or on the device
itself.
Those KRONE machines which are ISOBUS equipped are adapted to this system.
Pos: 103.5 /BA/I nfo-Center/CCI-I SOBUS-Ter minal/CCI-BiG P ack/Allgemeine Beschreibung (D ie elektronisc he Ausstattung der Maschine .. ......) Text/Bil d @ 377\mod_ 14431726694 18_78.docx @ 2736562 @ @ 1
1
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11F11
F12
ESC
2
Fig.

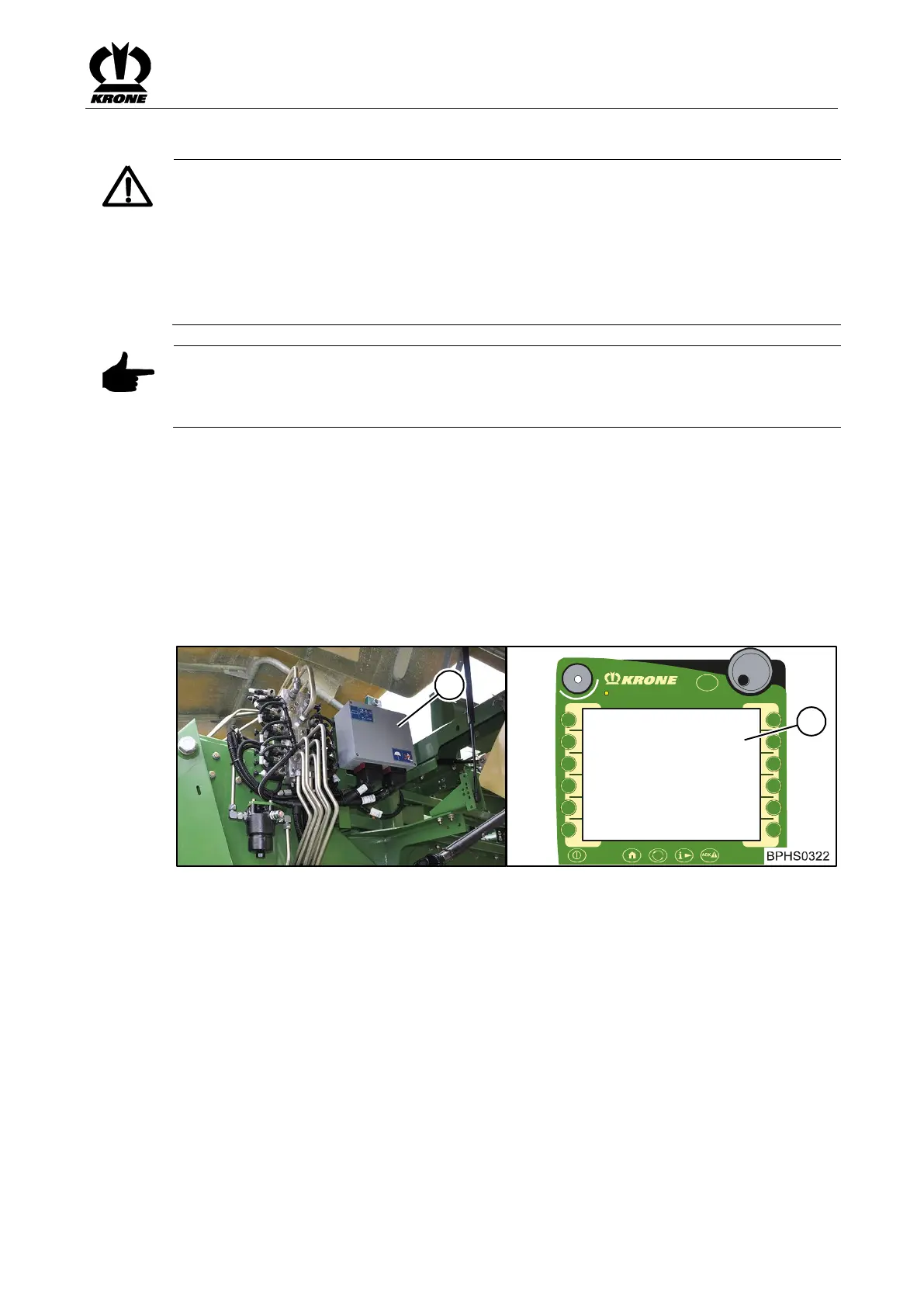

The electronic equipment of the machine consists essentially of the job computer (1), the
terminal (2) and the control and function elements.
The job computer (1) is located on the front left of the machine under the twine box.
Function of the job computer:
• Control of the actuators installed on the machine.
• Transfer of alarm messages.
• Evaluation of the sensors.
• Diagnostics of sensors and actuators.
The terminal (2) communicates information to the driver and performs settings to operate the
machine. This information is received and further processed by the job computer.
