Settings
294
Pos: 109.62 /BA /Einstellungen/Gr oßpackenpress e/Garnriegel/Gar nriegel Überg riff am 2ten Knot en prüfen HD P II @ 170\ mod_1369666 372743_78.doc x @ 1467026 @ @ 1

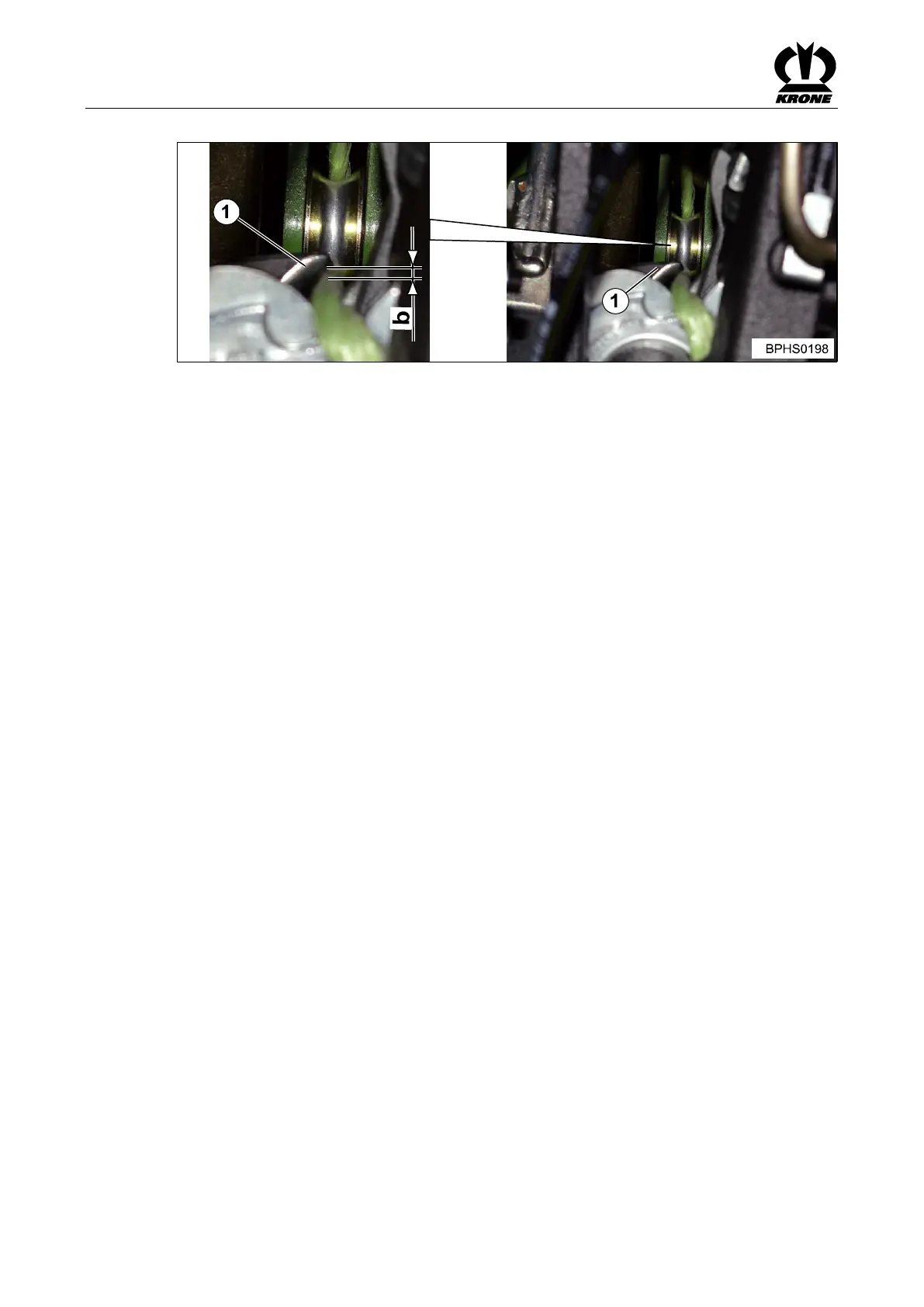

Checking the overreach of the twine bars on the second knot
Fig.
Prerequisite:
– The first knot (closing knot) must have been made manually.
Checking
• Turn the flywheel manually in the working direction until the twine bar (1) swivels over the
channel slots for the second time.
• As soon as the twine bar grasps the twine, tighten the flywheel brake to lock the needles in
this position.
Measuring the overreach (distance twine tip to twine)
The twine bar is correctly adjusted if the dimension „a“ is between 5 and 10 mm.
If the dimension „a“ is not 5 - 10 mm, the twine bar must be re-adjusted; refer to chapter
Settings “Setting Twine Bar to Lower Needle (needle yoke)”.
Check the overreach on all twine bars.
