Start-up
129
Pos: 99.61.8 /B A/Info-Center/CCI-I SOBUS-Ter minal/Termin al anschließen ( vorgerüsteteter I SO Schlepp er)_Bild @ 391\ mod_14458461 27735_78.doc x @ 2799397 @ @ 1
6
5
1
2
3
4
CC00014
1
4
7
3
6
9
7
9
10
11
13
12
5
14
8

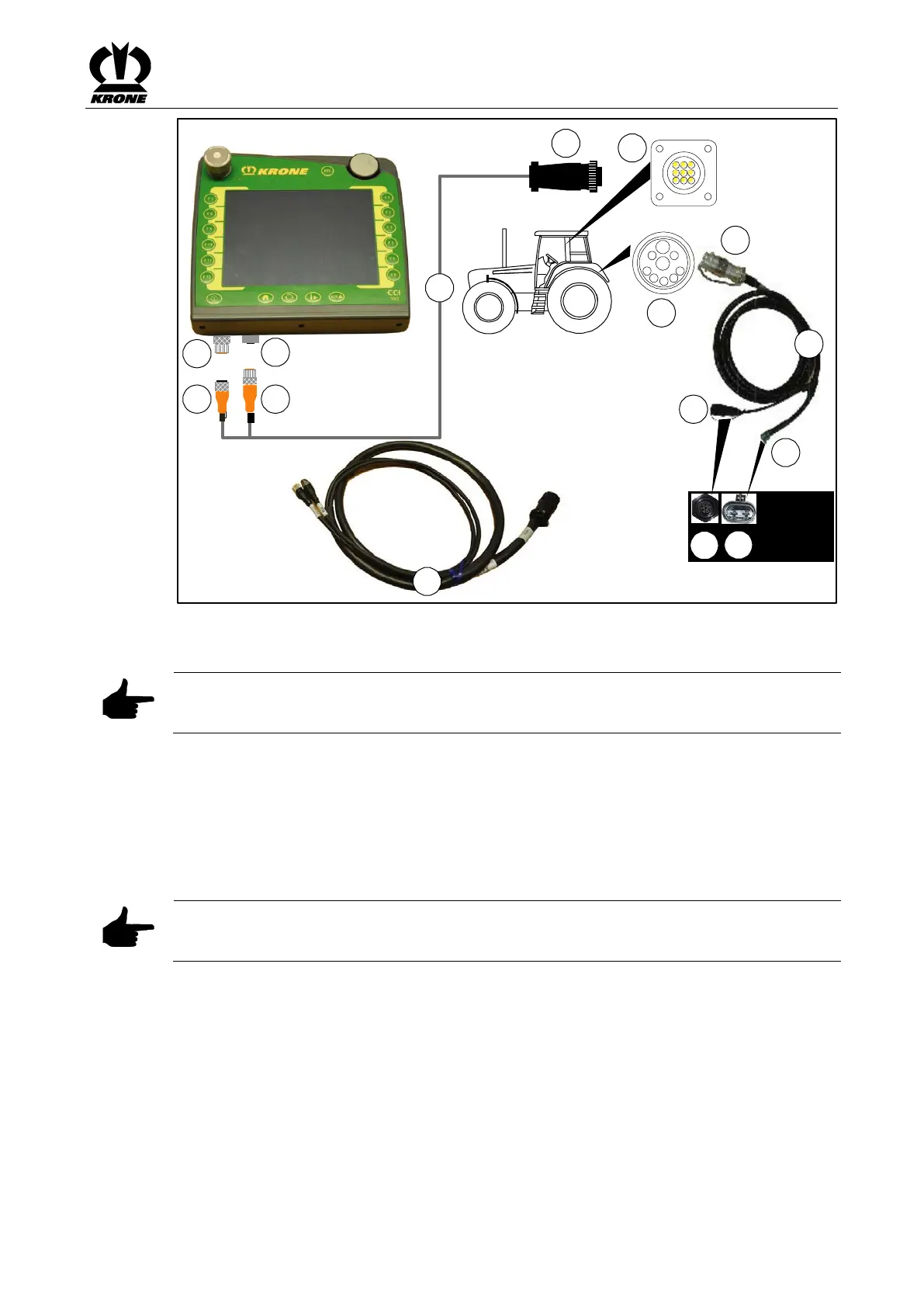

Fig.
67
Pos: 99.61.9 /B A/Info-Center/CCI-I SOBUS-Ter minal/Termin al anschließen ( vorgerüsteteter I SO Schlepp er)_Text1-Verbin dung Terminal z um Traktor @ 391\mod_14 45846257840 _78.docx @ 27996 18 @ @ 1
Connecting terminal to tractor
Note
The terminal is connected to the tractor via a special cable set (5) which can be ordered by
stating the KRONE article no. 20 081 223 0.
• Connect the plug (2) of the cable set (5) with the socket (1) (CAN1-IN) of the terminal.
• Connect the plug (4) of the cable set (5) with the socket (3) (CAN1-out) of the terminal.
• Connect ISOBUS plug (6) (9-pole) of cable set (5) with the ISOBUS socket (7) (9-pole)
located in the tractor cabin.
Pos: 99.61.10 / BA/Info-Center /CCI-ISOBUS-T erminal/Termi nal anschließen (vorgerüstetet er ISO Schlep per)_Text2-Ver bindung Trakt or zur Maschine @ 391\mod_1 445846351788_ 78.docx @ 2799 649 @ @ 1
Connecting tractor to machine
Note
The tractor is connected to the machine via cable set (14) which can be ordered by stating
KRONE article no. 20 080 384 0.
• Connect ISOBUS plug (9) (9-pole) of cable set (14) with the outer ISOBUS socket (8)
(9-pole) on tractor side.
• Connect plug (10) (7-pole) of cable set (14) with socket (11) (7-pole) of the machine.
• Connect plug (12) (2-pole) of cable set (14) with socket (13) (2-pole) of the machine.
