19.13 Knotter
Pos: 93.76 /BA/Sic herheit/7. G efahrenhinweise alt/Großpac kenpresse/WARNUNG - Lebensg efahr durch ungewolltes A uslösen der Bi ndeeinrichtung. @ 273\mod_140 3694855615_ 78.docx @ 205 4965 @ @ 1
WARNING!
Danger to life due to unintentional triggering of the twine tying device.
If the tying process is not locked to facilitate maintenance, adjustment and repair work on the
knotter, the tying process may be triggered unintentionally. As a result, people may be seriously
injured or killed.
• To facilitate maintenance, adjustment and repair work on the knotter, always secure the
knotter shaft with the safety lever to prevent unintentional triggering of tying.
Pos: 93.77 /BA/Ei nstellungen/Groß packenpresse/ Knoter/Bind evorgang sp erren HS @ 273 \mod_14036967 68365_78.doc x @ 2055170 @ 3 @ 1
19.13.1 Locking/releasing the tying process
1
2 2
a
b
BPHS0059
b
a
1

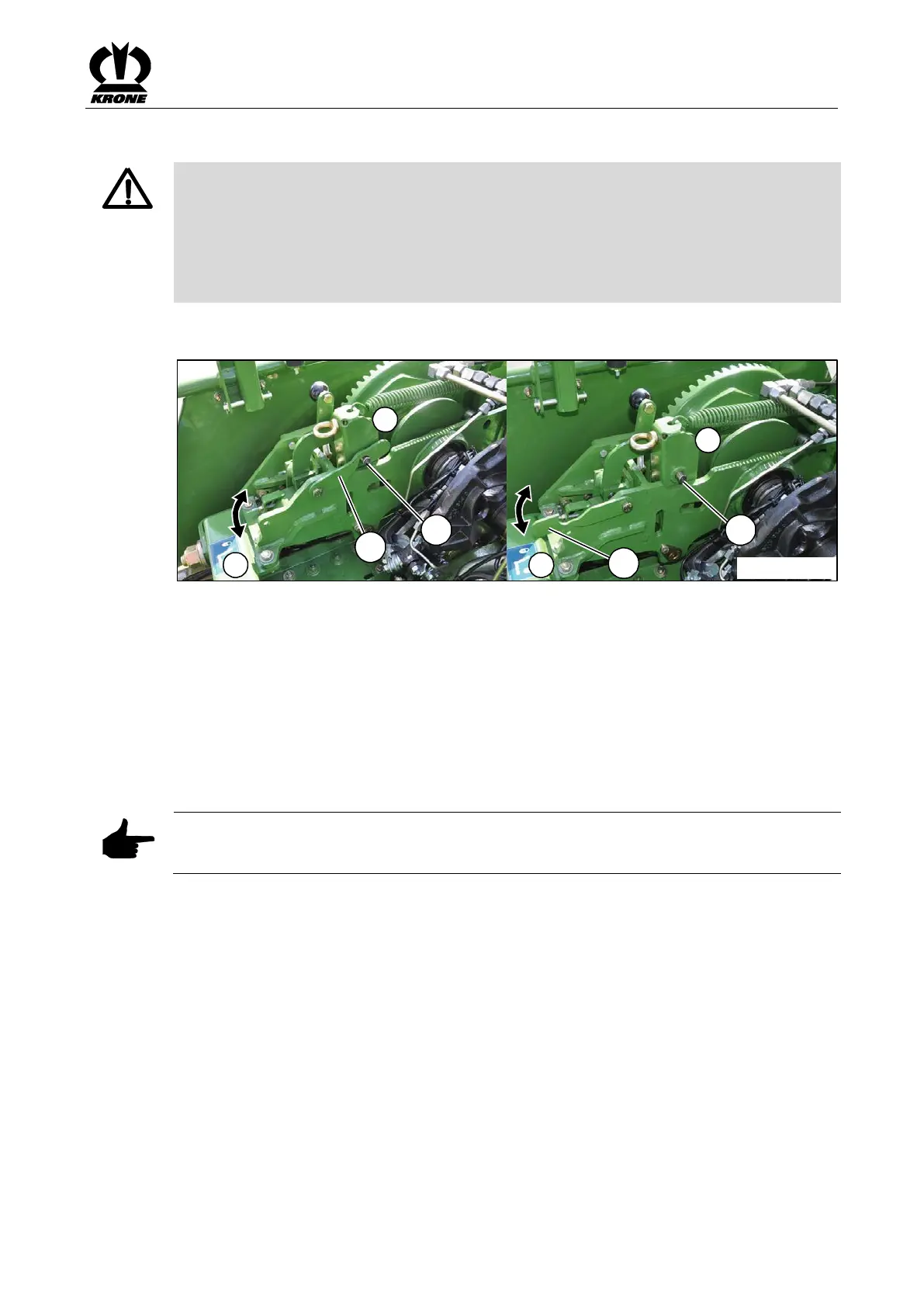

Fig.
193
To avoid unintentionally triggering the tying process during maintenance, adjustment and repair
work on the knotter, the tying process must be locked.
Locking the tying process
• To lock the tying process, move the safety lever (1) from position (a) to position (b) and set
it down on the journal (2).
Releasing the tying process
• To release the tying process, move the safety lever (1) from position (b) to position (a).
Pos: 93.78 /BA/Ei nstellungen/Groß packenpresse/ Bindegarn ei nfädeln/Hinweis Endlosballen g epresst @ 92\ mod_13267 28080272_78.d ocx @ 781560 @ @ 1
Note
The safety lever (2) must be in position (a) for the baling process! Otherwise an endless bale
will be formed when the knotter shaft is secured.
