5.16.2 For Comfort Version Electronics Design:
1
3
4
5
5
2
Fig.
44

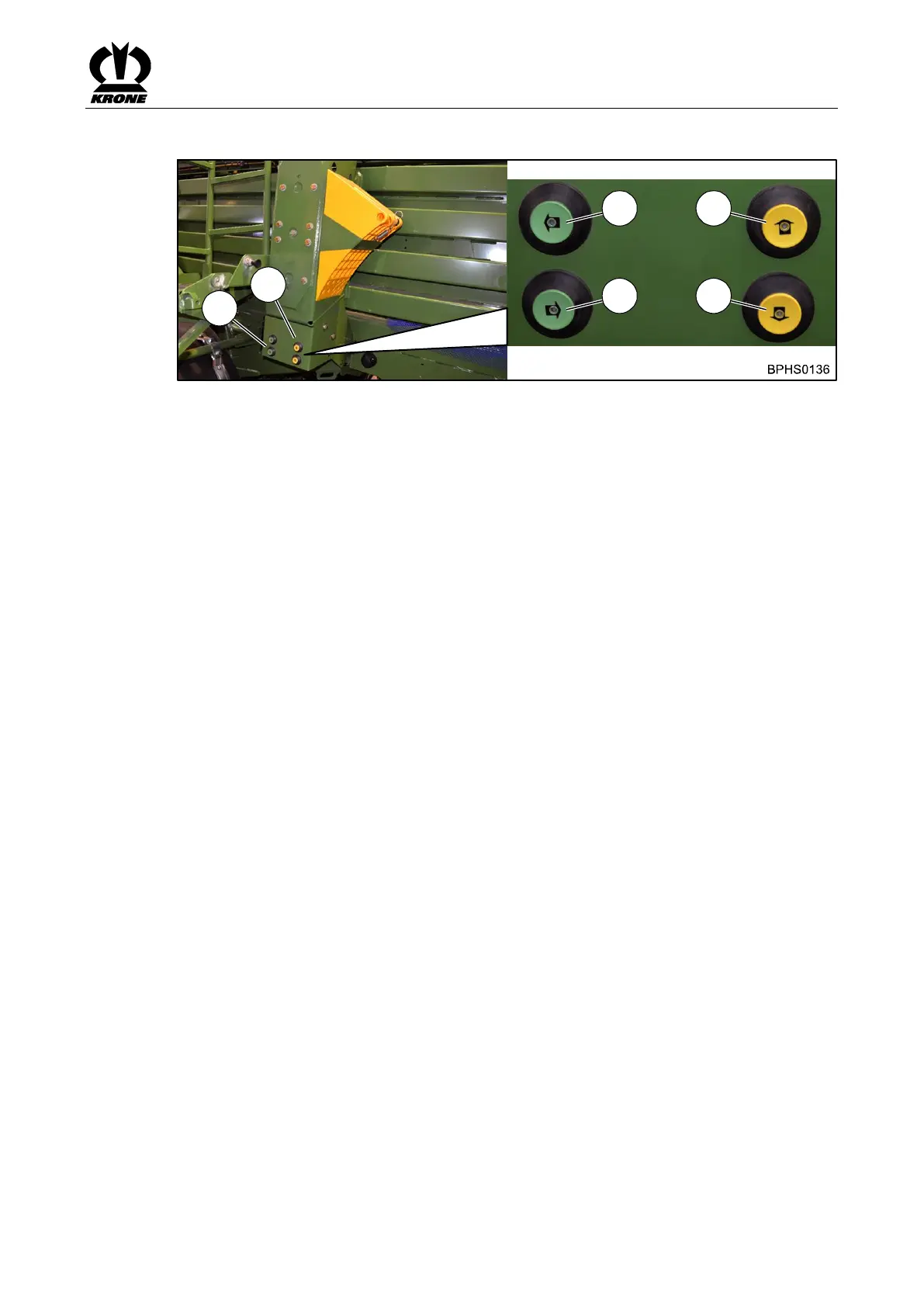

On machines with comfort version electronics, external buttons (1, 2) are installed on the rear
left machine side. The bale ejector is manually actuated via the buttons (3, 4). The bale chute is,
however, manually actuated via the buttons (5, 6).
Actuating the bale ejector
The bale ejector is moved to the front via button (3).
Button (4) has several functions.
If the bale channel flaps have not been released, then they can be released now by pressing
the button.
If the bale channel flaps have been released, 10 bale ejection processes are carried out by
pressing the button.
The bale ejector moves backward when the bale channel flaps are released and the button is
pressed and held.
Activating bale chute
The bale chute is lifted to transport position via button (5).
The bale chute is lowered into working position via button (6).
