19.5.4 Setting the locking (frame)
Fig.
178

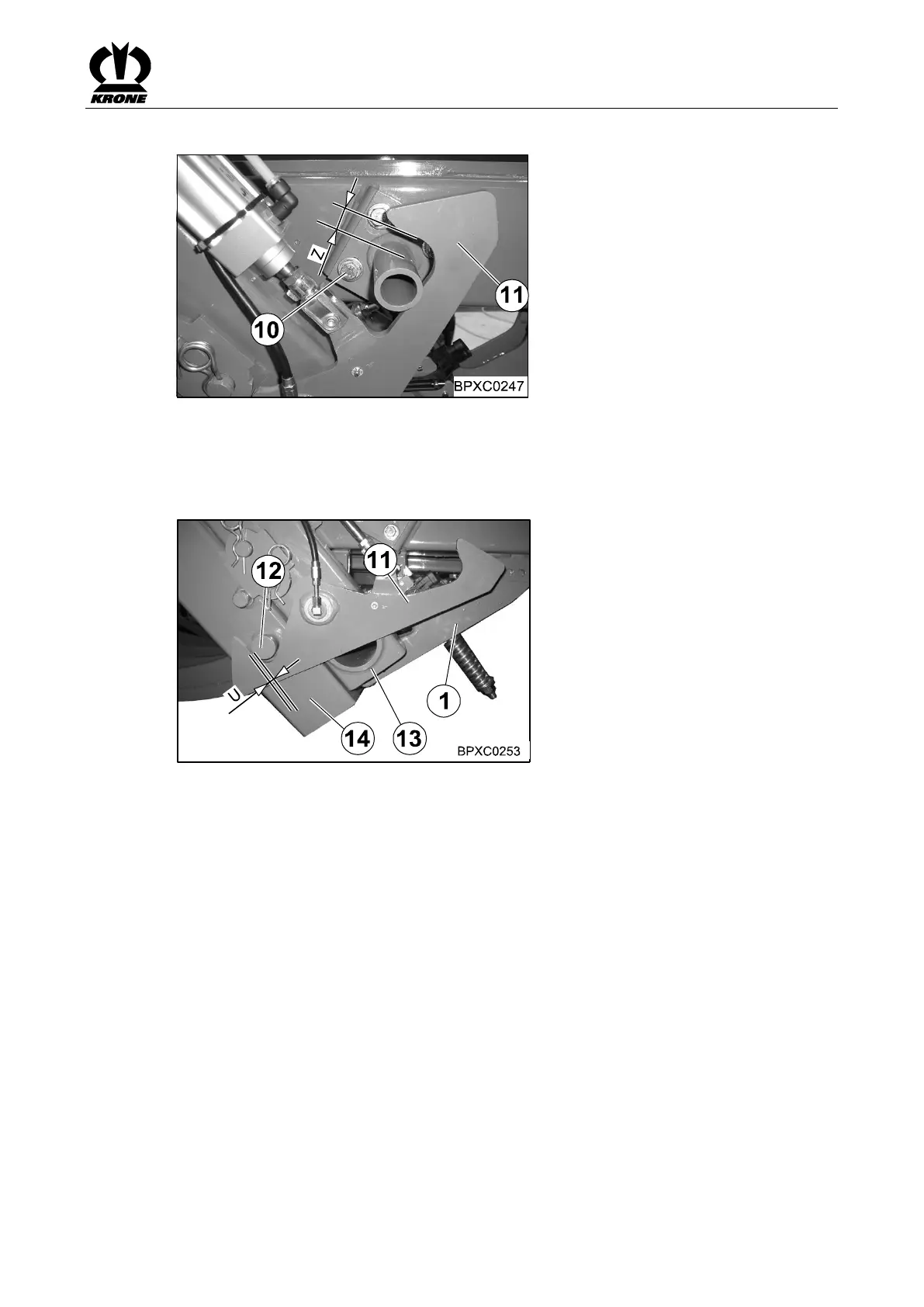

• Set the support tube (10) so that the distance between the locking (11) and the support tube
(10) is Z = 15-35 mm
Pos: 93.45.8 /B A/Einstellungen/ Großpackenpress e/MutiBale/Eins tellung Verrieg elungen der Na delschwinge n @ 24\mod_ 12415017360 55_78.docx @ 2 45306 @ 3 @ 1
19.5.5 Setting the lockings of the needle yoke
Fig.
179
In order to ensure a safe lock of the second needle yoke (13), the locking (11) (as shown in the
figure above) has to have a distance of U = 3 – 7 mm to the pin (12) of the needle yoke (14).
