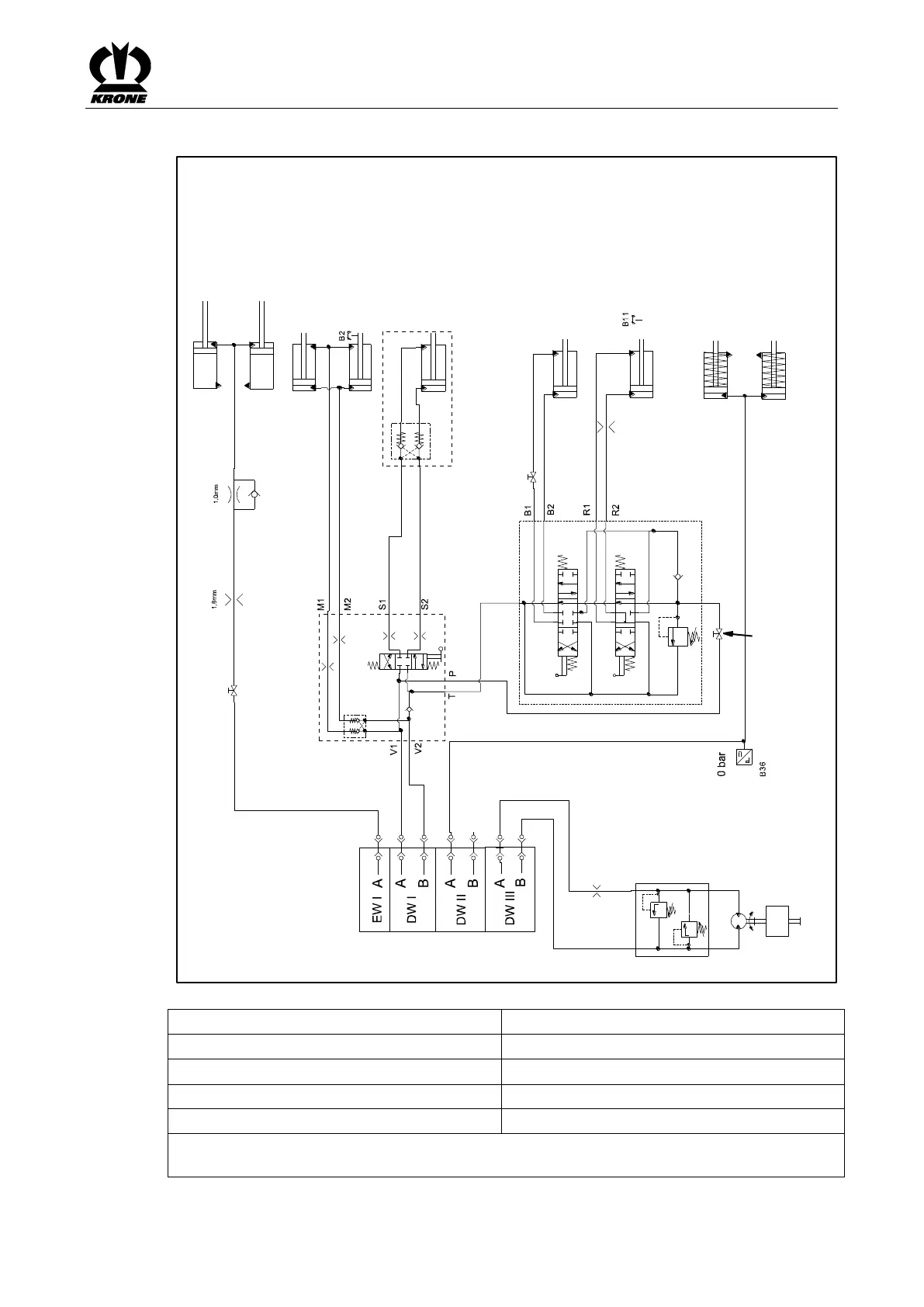

31.4 Work Hydraulics Medium Version Electronics
Pos: 174 /BA/An hang/Großpacke npresse/Arbeits hydraulik für Me dium-Elektro nik HS Baurei he Bild @ 36 8\mod_14417 00579778_78.d ocx @ 2700894 @ @ 1
10)
3)
4)
5)
6)
7)
8)
1)
2)
11)
9)
Fig.
260
Pos: 175 /BA/An hang/Großpacke npresse/Arbeits hydraulik für Me dium-Elektro nik HS Baurei he Legende @ 368\mod_1 441701780651_78 .docx @ 2701 043 @ @ 1
1. Starting aid
2. Main gearbox flywheel
3. Input block
4. Raising/lowering the support jack
5. Locking the steering axle
6. Raising/lowering the blade bar
7. Move bale ejector in/out
8. Raising/lowering the bale chute
9. Raising/lowering the pick-up
10. Standard tractor hydraulics
11. Open ball valve only to use the bale ejector and the bale chute! Close during baling
process.
