3.9 Flywheel brake
Pos: 51.20 /BA/Ers tinbetriebna hme/Großpacken pressen/Sch wungradbremse/Sc hwungradbre mse Bild BiG P ACK 870 Baurei he @ 246 \mod_139636084 4078_78.docx @ 1923687 @ @ 1
1
1
BPHS0268
Fig.
10
Pos: 51.21 /BA/Ers tinbetriebna hme/Großpacken pressen/Sch wungradbremseSc hwungradbre mse Text @ 400\ mod_144 7403468990_78.d ocx @ 2833 521 @ @ 1

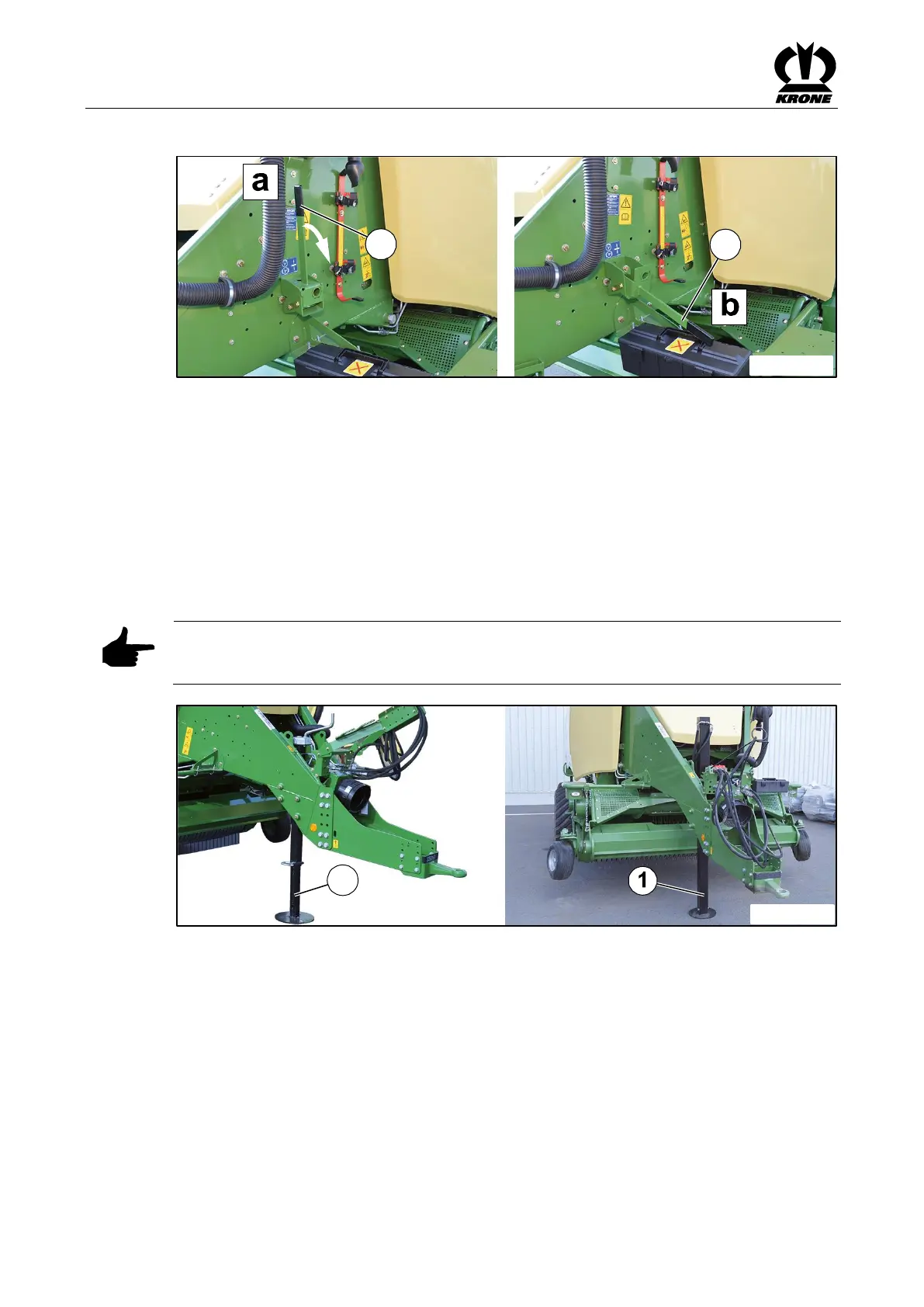

Pos. a = flywheel unbraked
Pos. b = flywheel braked
The flywheel brake of the flywheel is located on left-hand machine side on the drawbar.
The flywheel brake (1) prevents unexpected start-up of mobile parts of the baler when
eliminating malfunctions, carrying out setting work, cleaning work, repair work or maintenance
work. The flywheel is held by means of brake strap.
• To activate the flywheel brake, move brake lever (1) on the flywheel from position (a =
unbraked) to position (b = braked). The flywheel is now braked.
When the electronics of the machine is turned on, a hoot will sound.
Pos: 51.22 /Übersc hriften/Üb erschriften 2/P-T/S Stützfuß @ 1 75\mod_1372 676754261_78. docx @ 15023 29 @ 2 @ 1
3.10 Parking Jack
Pos: 51.23 /BA/Ers tinbetriebna hme/Großpacken pressen/Abst ellstütze/Abstellst ütze Standfläc he vergrößern_Hi nweis @ 302 \mod_1413 968281921_7 8.docx @ 235350 3 @ @ 1
Note
In order to increase the base of the support jack when the ground is soft, use a suitable
support.
Pos: 51.24 /BA/Ers tinbetriebna hme/Großpacken pressen/Abst ellstütze/Abstellst ütze / Hydraulisc her Stützfuß Bil d BiG PACK @ 304\mod _14145720888 21_78.docx @ 2362563 @ @ 1
1
BPHS0313
Fig.
11
With parking support design
With hydraulic support jack design (optional)
Pos: 51.25 /BA/Ers tinbetriebna hme/Großpacken pressen/Abst ellstütze/Auf Abst ellstütze abgest ellt @ 17\ mod_1236318 204666_78.docx @ 204361 @ @ 1
As long as the machine is not connected to the tractor, the drawbar is supported on the parking
support.
