19.6 Checking / Setting the Needle Yoke Brake
Pos: 109.49.2 / BA/Einstellunge n/Großpackenpr esse/Nadeleinst ellungen/Einstell ung der Nad elschwingenbre mse 890/1270/ 1290 HS Baur eihe_Grafi k @ 304\mod_141 4737802447_ 78.docx @ 236 4493 @ @ 1
2
1
8
X
Y
Z
5
6
7
9
10
3
4
11
12
Fig.
189
Pos: 109.49.3 / BA/Einstellunge n/Großpackenpr esse/Nadeleinst ellungen/Na delschwingenbrem se Voraussetz ung 890/1270/1 290 HS Baurei he @ 310\ mod_141760097 7246_78.doc x @ 2397492 @ @ 1
Prerequisite:
– The machine is disconnected from the tractor.
– The height of the needles on the knotter is checked or set, refer to chapter Settings “Setting
the Height of the Needles on the Knotter”.
– The upper dead point of the needles is checked or set, refer to chapter Settings “Upper
Dead Point of the Needles”.
– Before you perform settings on the needle yoke brake, the needle yoke must be in the idle
position (this means that the crank arm (1) and the needle connecting rod (2) are in the
extended position). It can be recognized by the trigger roller (8) which is in the recess of the
knotter gear.
Pos: 109.49.4 /Ü berschriften/Z wischenüberschrift en/K-OMaß e für Nadelsch wingenbremse @ 324\mod_142 5476492672_ 78.docx @ 2 494345 @ @ 1

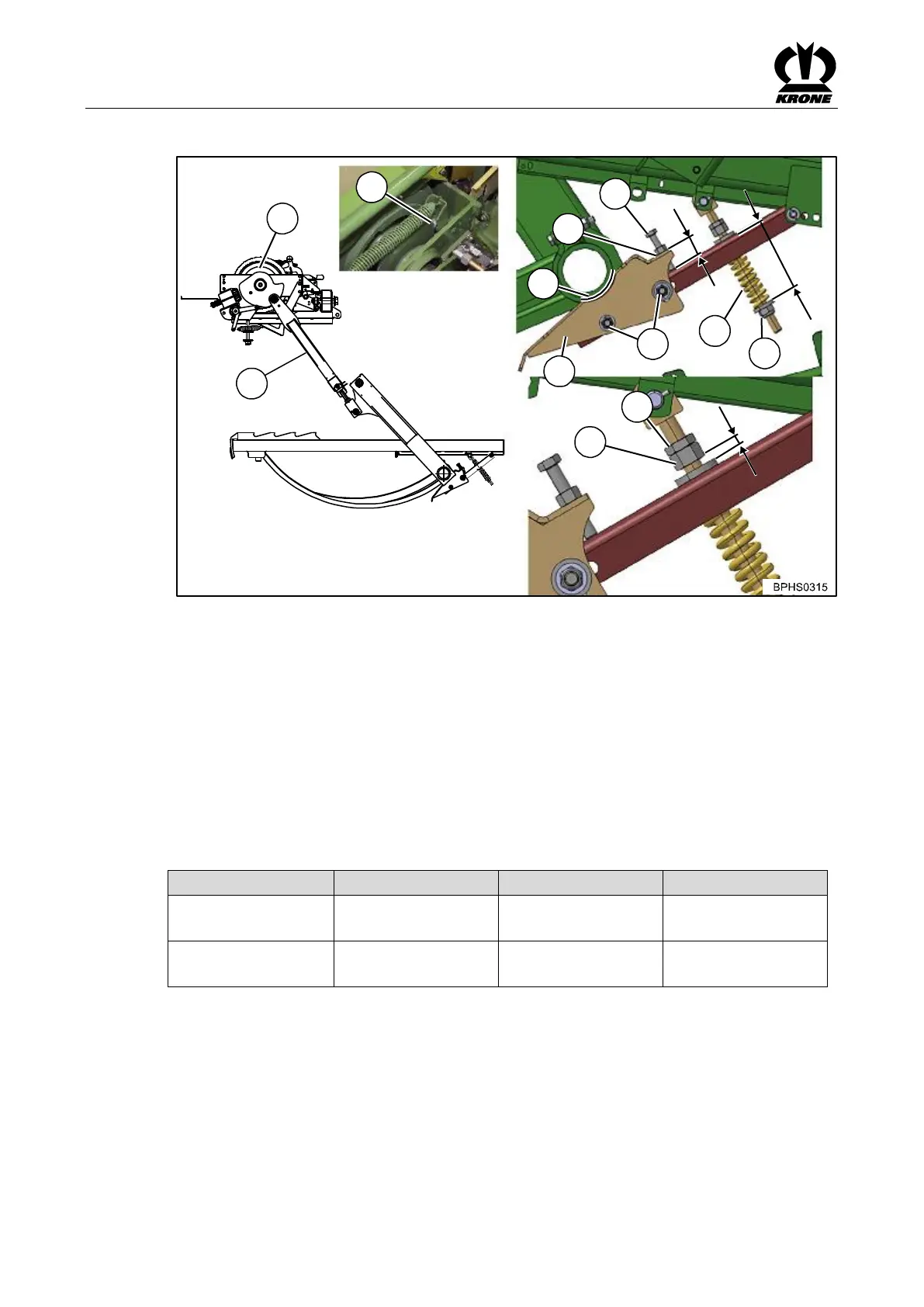

Dimensions for needle yoke brake
Pos: 109.49.5 / BA/Einstellunge n/Großpackenpr esse/Nadelei nstellungen/M aße Nadelsch wingenbremse_Ta belle @ 324\ mod_14254760 86668_78.doc x @ 2494315 @ @ 1
X
Y
Z
1270 (XC)
35 mm
105 mm
6 mm
890 (XC) /
1290 (HDP/XC)
40 mm
105 mm
6 mm
