Krone Big Pack 1270 - Driving with Pick-Up in Fixed Position

Operation
253
Pos: 107.17.7 /Ü berschriften/Ü berschriften 3/U- Z/Unterfad en einfädeln @ 1 54\mod_1363 274391674_78. docx @ 1369094 @ 3 @ 1

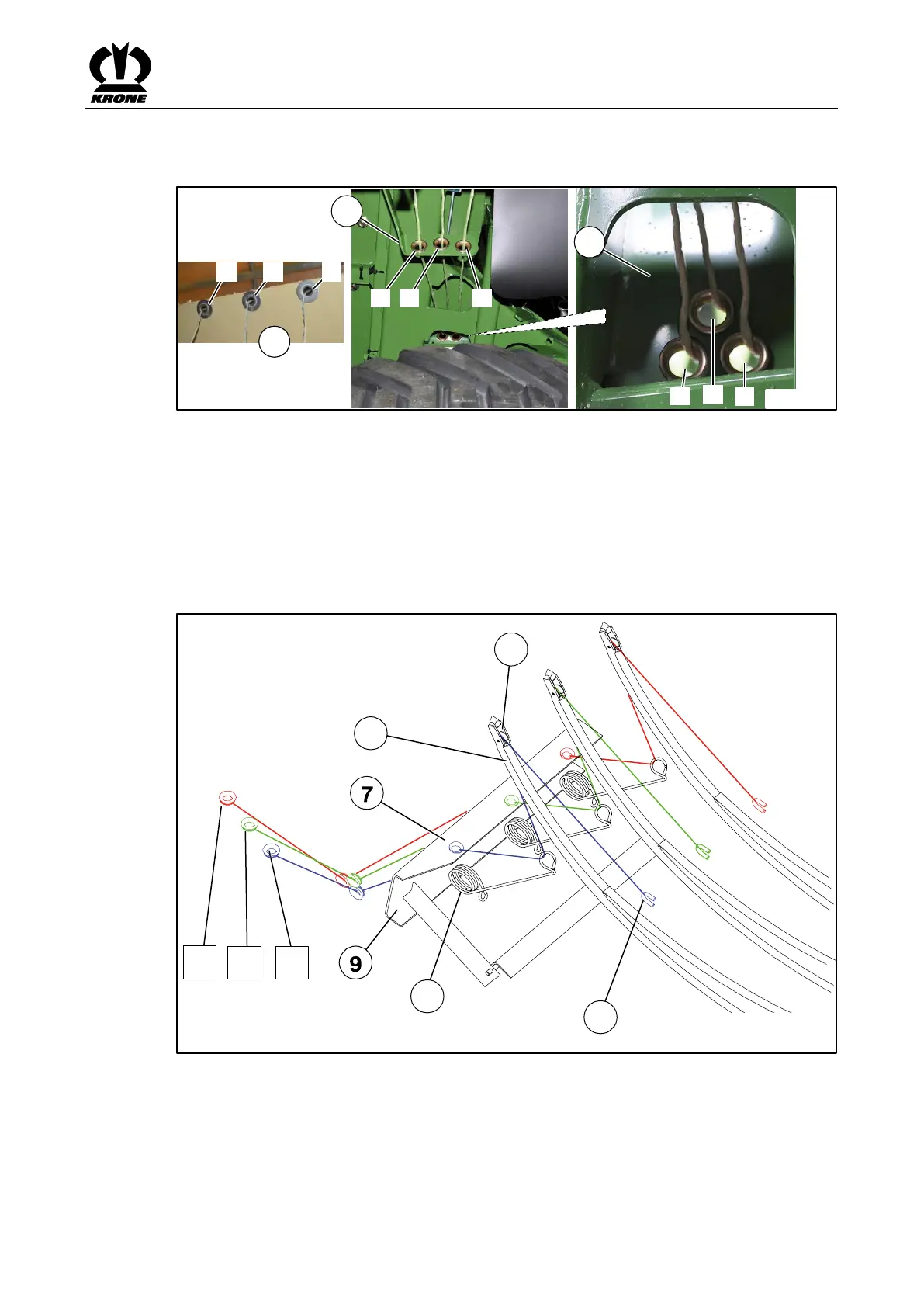

18.2.2 Threading in the Lower Twine
Pos: 107.17.8 / BA/Einstellunge n/Großpackenpr esse/Bindegarn einfädeln/Unterf aden vom Gar nkasten zur u nteren Garnführung weiterfü hren. @ 154\ mod_136327450 2562_78.docx @ 1369122 @ @ 1
Then guide the lower twine from the twine box to the lower twine guide.
Pos: 107.17.9 / BA/Einstellunge n/Großpackenpr esse/Bindegarn einfädeln/Bi ndeeinrichtung 6 Doppelknoter/Un terfaden einfäd eln Bild 1 BiG PACK 1270 HS/1290 HS/ 1 290 HDP HS @ 176\mod_137 2839792475_ 78.docx @ 1 505347 @ @ 1
BPHS0251
86
3 2 1
1 2 3
2
1
3
8
8
7
Fig.
149
Pos: 107.17.10 /B A/Einstellung en/Großpackenpre sse/Bindegar n einfädeln/Bin deeinrichtung 6 D oppelknoter/U nterfaden einfä deln T1 3 U nterfäden @ 3 04\mod_1414 480574885_7 8.docx @ 236066 5 @ @ 1
Make certain the lower twines never cross.
• Guide the three lower twines (1, 2, 3) coming from the twine box (6) to the twine guide (7).
• Guide the three lower twines (1, 2, 3) from above through the eyes of the twine guide (7)
and guide them further to the twine guide frame (8).
• Guide the three lower twines (1, 2, 3) from the outside through the eyes of twine guide
frame (8) and then guide them to the lower twine brakes.
Pos: 107.17.11 /B A/Einstellung en/Großpackenpre sse/Bindegar n einfädeln/U nterfaden von der unteren Gar nführung zu de n Nadeln weiterführen @ 154 \mod_1363274 809338_78.doc x @ 1369226 @ @ 1
Then guide the lower twine from the lower twine guide to the needles.
Pos: 107.17.12 /B A/Einstellung en/Großpackenpre sse/Bindegar n einfädeln/ Bindeeinrichtu ng 6 Einfachknot erUnterfaden einfädeln Bild 2 Ein fachknoter @ 303\mod_1 414406899518_ 78.docx @ 2358 575 @ @ 1
12
3
10
13
11
12
BPHS0263_1
Fig.
150
Pos: 107.17.13 /B A/Einstellung en/Großpac kenpresse/Bindegar n einfädeln/ Bindeeinrichtu ng 6 Einfachknot er/Unterfaden ein fädeln T2 Ei nfachknoter @ 2 08\mod_13 86859404107_7 8.docx @ 17194 21 @ @ 1
• Guide the lower twine coming from the twine guide frame through the lower eye (7) of the
twine brake (8) through the twine brake and then to the upper eye (9) of the twine brake.
• Guide the lower twine further through the eye of the twine tension springs (10).
• Pull the lower twine upwards and guide it over the rollers (11) of the needle (12).
• Pull the lower twine down to the frame (13) and knot it on the frame.
