3.11 Shut-Off Valve Pick-up
Pos: 51.43 /BA/Ers tinbetriebna hme/Großpacken pressen/Absperr hahn Pick- up Bild mit Leg ende @ 155\ mod_1363682181 297_78.doc x @ 1373728 @ @ 1

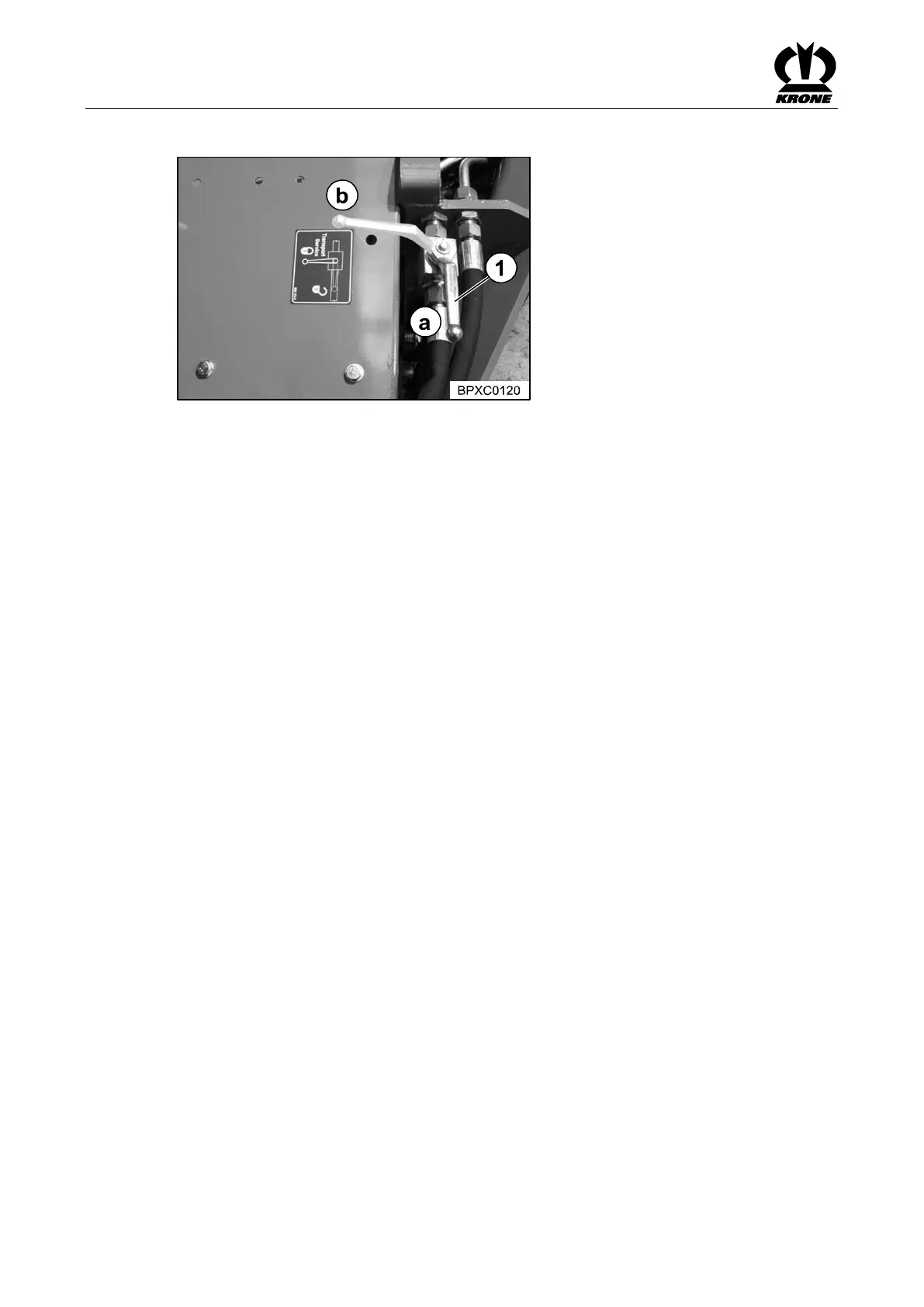

Fig.
15
Position (a) pick-up released
Position (b) pick-up locked
Pos: 51.44 /BA/Ers tinbetriebna hme/Großpacken pressen/Absperr hahn Pick- up sperren Te xt @ 152\mod_1 36273827522 6_78.docx @ 1 357414 @ @ 1
Always lock the pick-up via shut-off valve (1) when transporting the machine or when working
under the baler.
The shut-off valve is located on the left front machine side on the drawbar.
