Machine Description
76
Pos: 55.116 /BA /Maschinenbeschrei bung/Masc hinenübersicht/Fu nktionsweise/ Großpackenpres sen/Ball enausschieber / Ballenschurre b etätigen Einführt ext BP 890_1 270_1290_12 90 HDP_4x4 @ 1 73\mod_137 1025842883_78.d ocx @ 1484 464 @ 2 @ 1

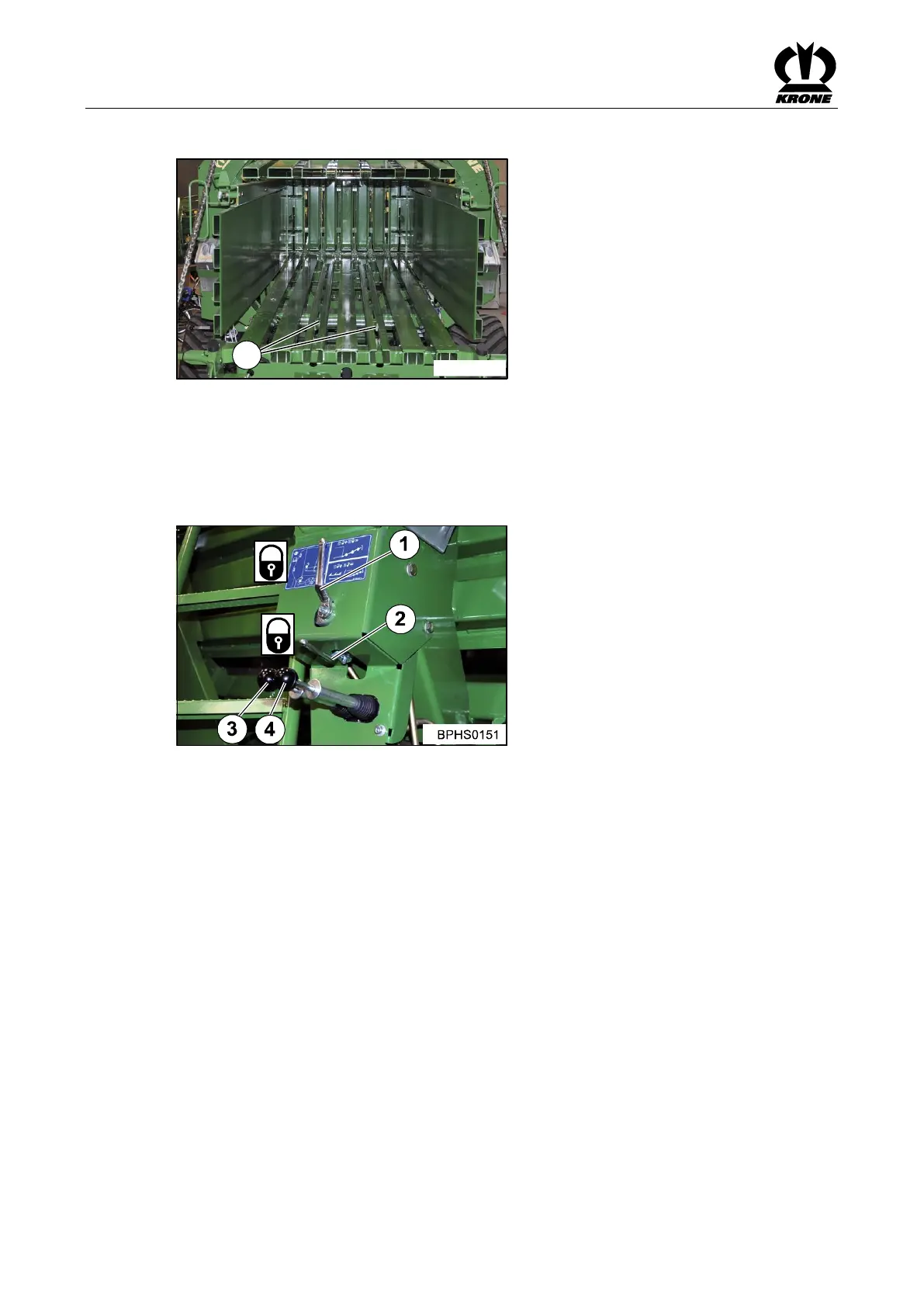

5.16 Bale Ejector / Bale Chute
Fig.
Bale ejector (1)
The operation of the bale ejector or the bale chute depends on the machine design (medium
version electronics or comfort version electronics), refer to chapter Operation “Operating the
Bale Chute”.
Pos: 55.117 /BA /Maschinenbeschrei bung/Masc hinenübersicht/Fu nktions weise/Großpac kenpressen/Ballen ausschieber / R ollenschurre betätigen bei Ausfü hrung Medi um-Elektroni k @ 152\mod_136 2724438588_ 78.docx @ 135 7153 @ 3 @ 1
5.16.1 Medium Version Electronics Design
Fig.
The operating control device is located on the rear left machine side on the yoke.
The control levers (3, 4) are released or locked via shut-off valves (1, 2).
The bale chute is lowered or lifted via control lever (3).
The bale ejector is moved to the rear or to the front via control lever (4).
Pos: 55.118 /Layo ut Module /---------------Seitenumbruch---------------- @ 0\mod_1196 175311226_0.d ocx @ 4165 @ @ 1
