Machine Description
75
Pos: 55.114 /BA /Bedienung /Groß packenpresse/ Knotergetri ebe / Ruhestellu ng / Bindevorg ang von Hand au slösen @ 16 8\mod_1367993 844032_78.doc x @ 1452575 @ 2 @ 1
5.15 Knotter Gear

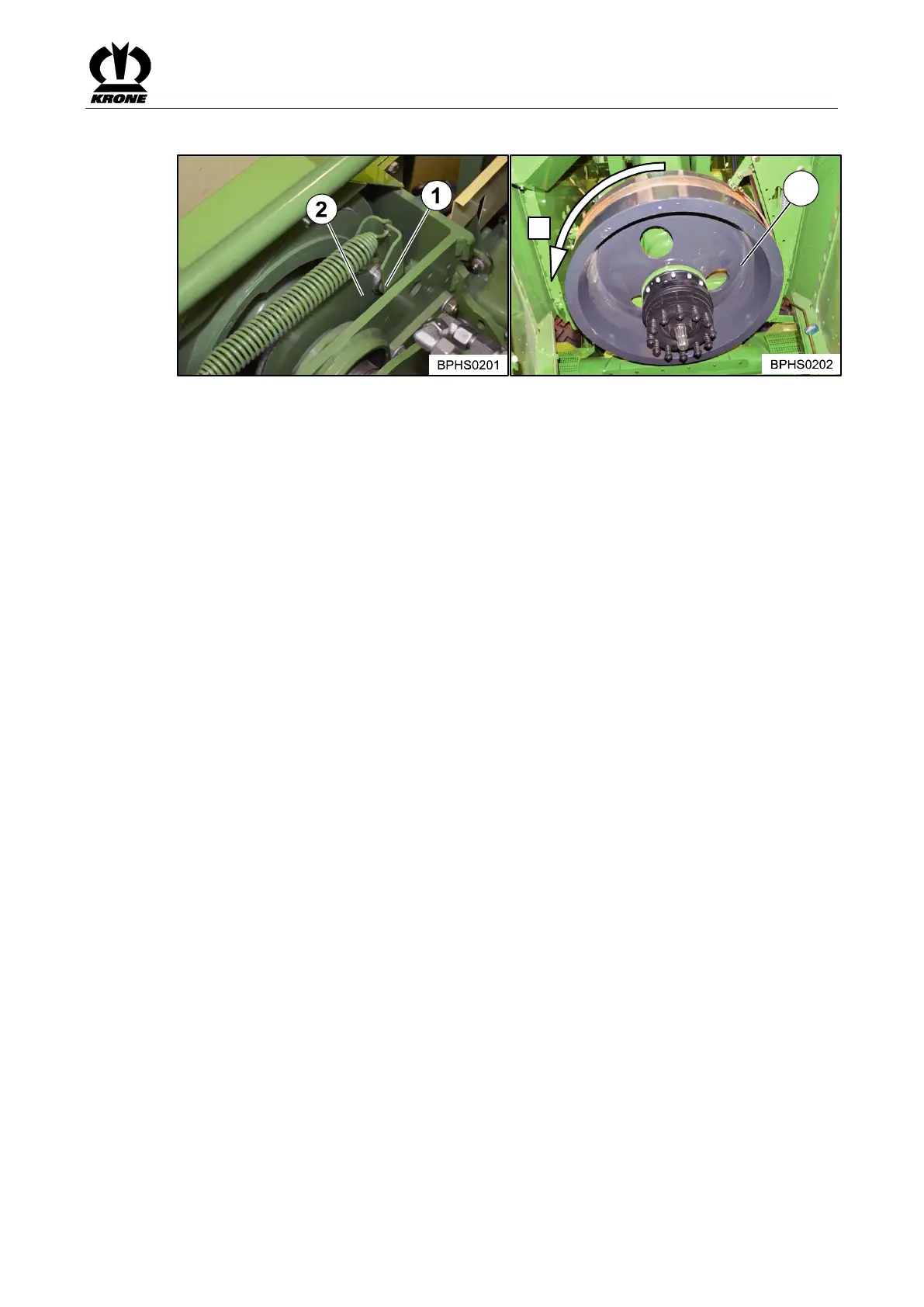

Fig.
Knotter gear in idle position
The knotter gear is in idle position if the trigger roller (1) is located in the recess of the cam disc
(2) of the knotter gear.
The tying process
The tying process consists of a rotation of the cam disc (2).
The system automatically triggers the knotting mechanism after the set bale length has been
reached. In this process, the cam disc rotates, presses the trigger roller out of the recess and
continues to rotate until the trigger roller slides into the recess again. While the cam disc
rotates, the first knot (closing knot) is tied at first and immediately after that, the second knot
(starting knot) is tied.
First knot = closing knot, ties the pressed bale
Second knot = starting knot, ties the starting knot for the next bale
Initiating the tying process manually
In case of maintenance, setting or repair work, the tying process can be manually initiated when
the tractor is not connected. The tying process is carried out by manually turning the flywheel
(3) in the direction of working (a); refer to chapter Operation “Initiating Tying Process Manually”.
