Machine Description
74
Pos: 55.109 /BA /Bedienung /Groß packenpresse/ Garnlaufanzeige Oberfaden (D oppelknoter) @ 20\mod_ 1238741788902 _78.docx @ 224 916 @ 3 @ 1

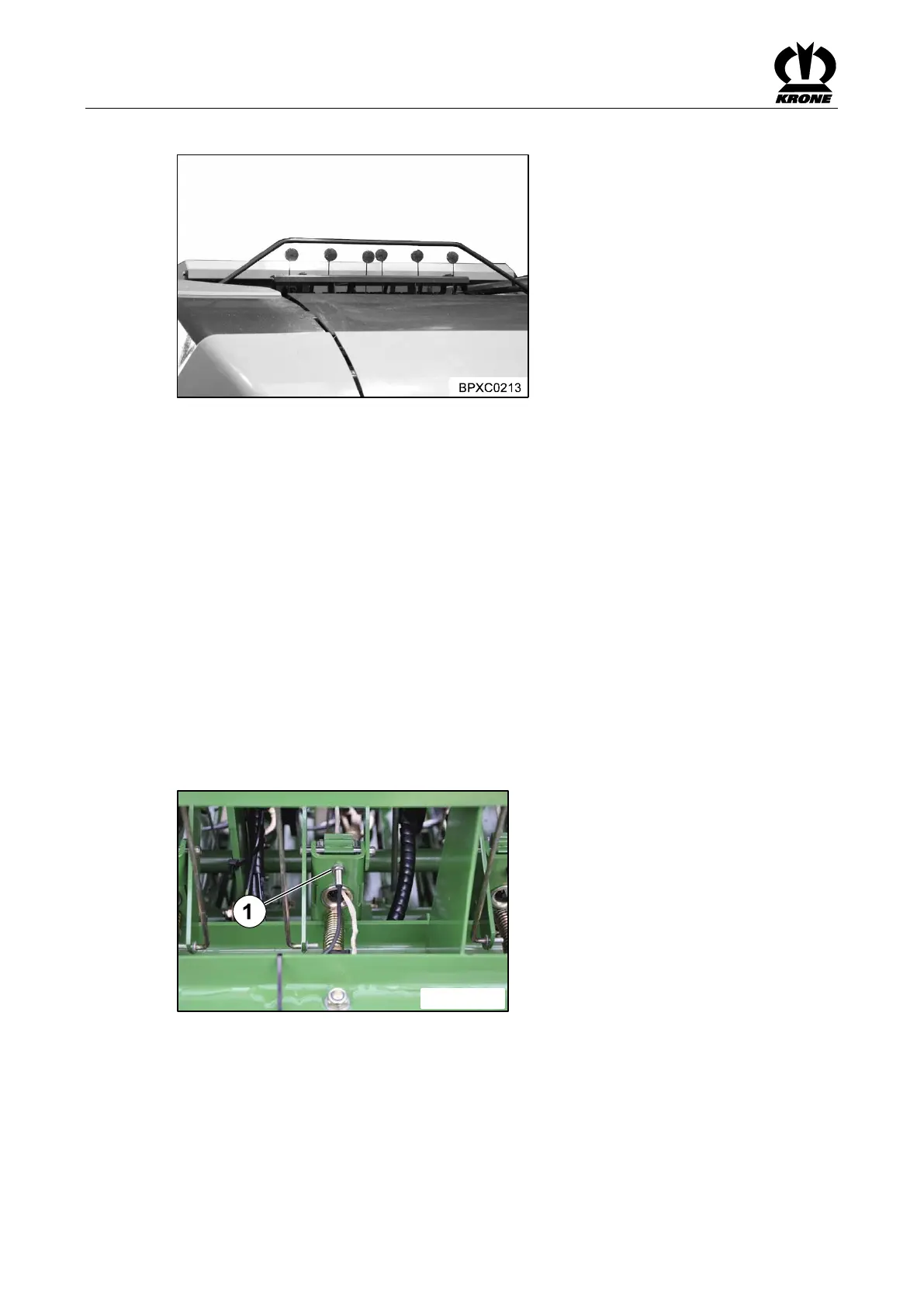

5.14.2 Twine motion indicator upper twine (double knotter)
Fig.
The upper twine motion is monitored by reflectors (twine motion indicator) positioned above the
machine. While the bale is being formed, the twine motion indicator should move back and forth
in a pulsing cycle. All indicators generally rise and lower at the same time except in the event of
a malfunction. A malfunction of this nature is indicated by the fact that the twine motion indicator
that is featuring a malfunction will not be in the same position as the other indicators.
The following malfunctions can be indicated:
The twine motion indicators are staying up:
• Twine has wound around the knotter hook
• The needle has not caught the upper strand of twine (twine will not be cut through)
• The knot has been left hanging on the knotter hook (after the tying is complete, one twine
motion indicator remains down longer than the other)
The twine motion indicators are staying down:
• Twine tension is too low
• The upper twine strand is torn
• The knotter hook has not tied a knot
Pos: 55.110 /Übers chriften/Übersc hriften 3/A- E/E/Elektrisch e Knoterkontrolle @ 168\mo d_1367993462294 _78.docx @ 1 452492 @ 3 @ 1
5.14.3 Electrical Knotter Monitoring
Pos: 55.111 /Übers chriften/Zwisc henüberschrift en/A-EAusfü hrung Komfort-El ektronik @ 32 5\mod_142555 0906427_78.d ocx @ 249765 1 @ @ 1
Comfort version electronics design
Pos: 55.112 /BA /Bedienung /Groß packenpresse/ Knoterkontrolle BiG PACK HS Baureihe @ 30 4\mod_141 4574586717_ 78.docx @ 2362 698 @ @ 1
Fig.
The machine is equipped with an electrical knotter monitoring. In this process, each knotter is
monitored individually by a sensor (1). If an error occurs on the knotter, the appropriate error
message appears in the display of the operation terminal.
The knotters are numbered from left to right from 1 to 6 (or from 1 to 4) (in direction of travel).
Pos: 55.113 /Layo ut Module /---------------Seitenumbruch---------------- @ 0\mod_1196 175311226_0.d ocx @ 4165 @ @ 1
