Maintenance – lubrication chart

110

Pos: 109.7 /Übersc hriften/Überschri ften 2/U-Z/Zwischengel enkwelle @ 3\mod_12047 02241039_78.docx @ 7148 1 @ 2 @ 1

14.3 Intermediate PTO shaft

Pos: 109.8 /BA/W artung/Gelenkwelle sch mieren/Abschmieren Zwisc hengelenkwelle Bi ld EasyCut F 360 CV/CR @ 245\mod_13 96000405369_78.doc x @ 1916385 @ @ 1

EC-505-0

Fig. 75

Pos: 109.9 /BA/W artung/Gelenkwelle sch mieren/Abschmieren Gele nkwelle Text @ 16\mod_12356 38171674_78.doc x @ 199556 @ @ 1

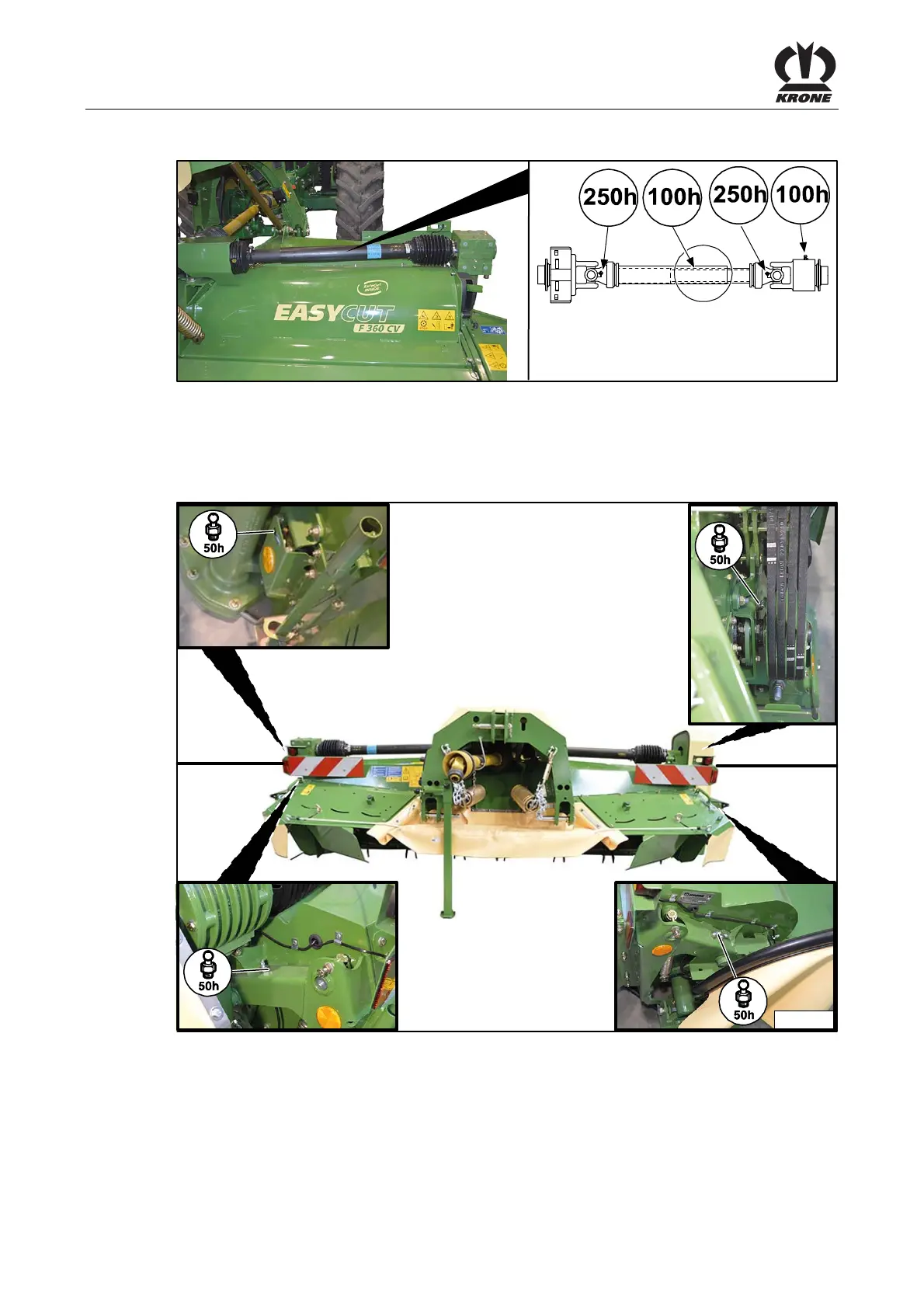

Lubricate the PTO shafts at the intervals indicated in the drawing with a multi-purpose grease.

Follow the operating instructions of the PTO shaft manufacturer.

Pos: 109.10 /Übersc hriften/Überschr iften 2/P-T/Schmierpla n @ 0\mod_1197361829026_ 78.docx @ 18495 @ 2 @ 1

14.4 Lubrication Chart

Pos: 109.11 /BA/W artung/Mähwerke/EasyCut / AM Mähwerke/Schmierpl äne/Schmierplan Easy Cut F 320 CV/F 360 CV/CR Bild @ 326\ mod_1426064110757_78. docx @ 2505685 @ @ 1

EasyCut F 320 CV

EasyCut F 360 CV

EasyCut 360 CR

EC-506-1

Fig. 76
