Krone EasyCut F 360 CV - Setting the Distance of the Rollers

Settings
78
Pos: 70.49 /Übersc hriften/Überschri ften 2/A-E/Abstand der W alzen einstellen @ 193\mod_13 83232082286_78.doc x @ 1647075 @ 2 @ 1
10.5 Setting the Distance of the Rollers
Pos: 70.50 /Abkürzun gen /CR-Ausführung @ 194\ mod_1383299073254_78. docx @ 1647987 @ @ 1
CR design
Pos: 70.51 /BA/Einste llungen/Mähwerke/ Rollen-Conditioner s/Einstellen de s Rollenabstandes Easy Cut CR-Ausführung @ 193\ mod_1383229458078_78. docx @ 1647015 @ @ 1
EC-452-0
2
1
CRI-0-001

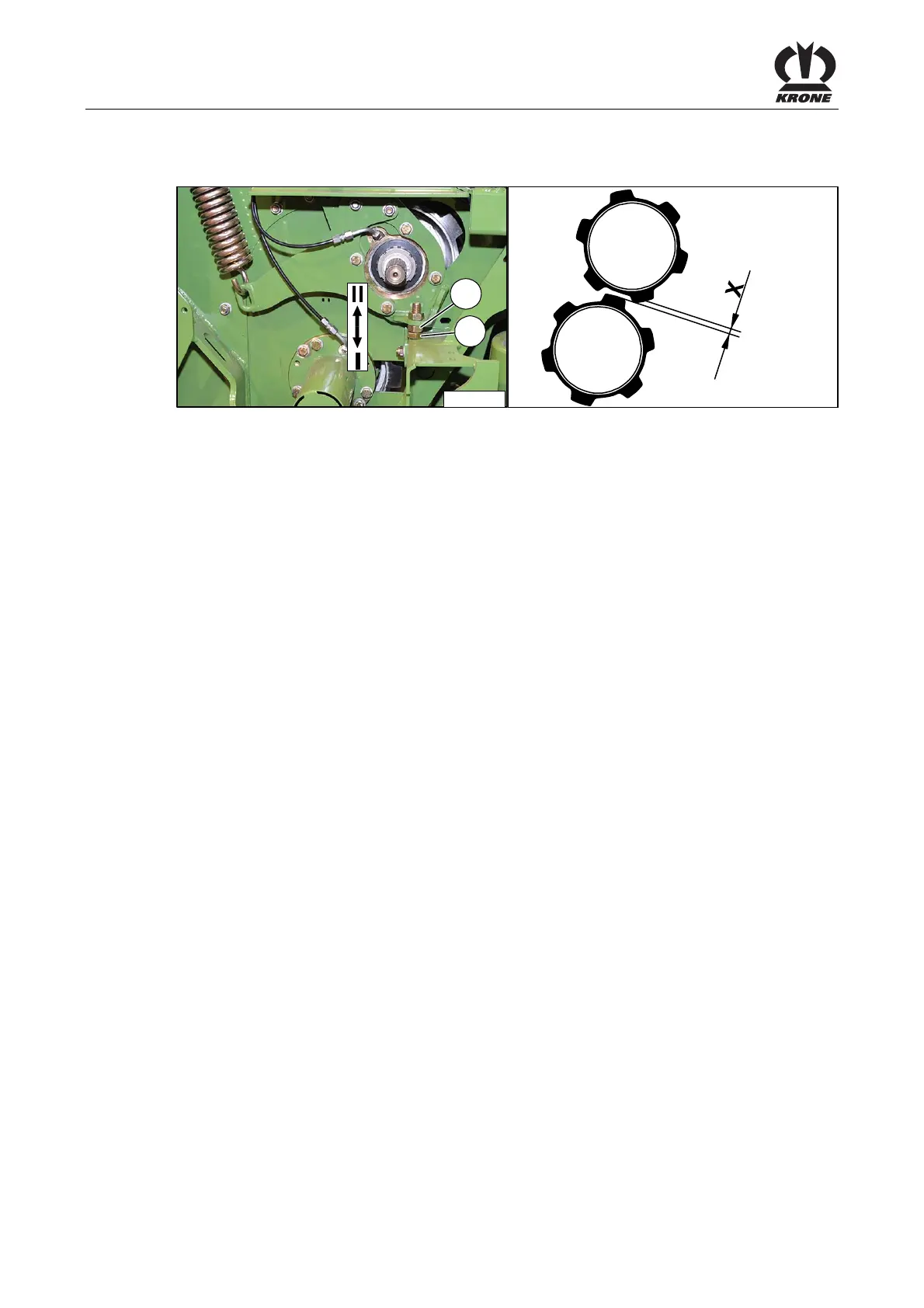

Fig. 50
The roller distance (X) can be adjusted by means of the screw (1), right and left side of the
machine. The dimension X = 2 mm must not be below this level to avoid high wear on the
rollers.
• Loosen the nuts (2).
Increasing the distance X
• Rotate the screw (1) in the direction (I) to increase the distance.
Reducing the distance X
• Rotate the screw (1) in the direction (II) to reduce the distance.
• Tighten the counter nut (2) again
