10.3.2 Replacing Pulley
Pos: 70.30 /BA/Sic herheit/7. Gefahrenhin weise alt/Einstel larbeiten / Einstel lungen/Gefahr - Einste llungen an der Maschine @ 0\ mod_1196668628056_78.doc x @ 10285 @ @ 1
Danger! - Settings on the machine
Effect: Danger to life, injuries or damage to the machine.
• Setting tasks must only be performed when the drive is switched off and the engine is at a
standstill! Remove the ignition key!
Pos: 70.31 /BA/Einste llungen/Mähwerke/ Zetterdrehzahl/ Montage der Keilrie menscheiben EC F 360 CV/CR Bild @ 248\mo d_1396527267816_7 8.docx @ 1930547 @ @ 1
1
2
EC-519-0
4
3
5
6
7
8
4
3

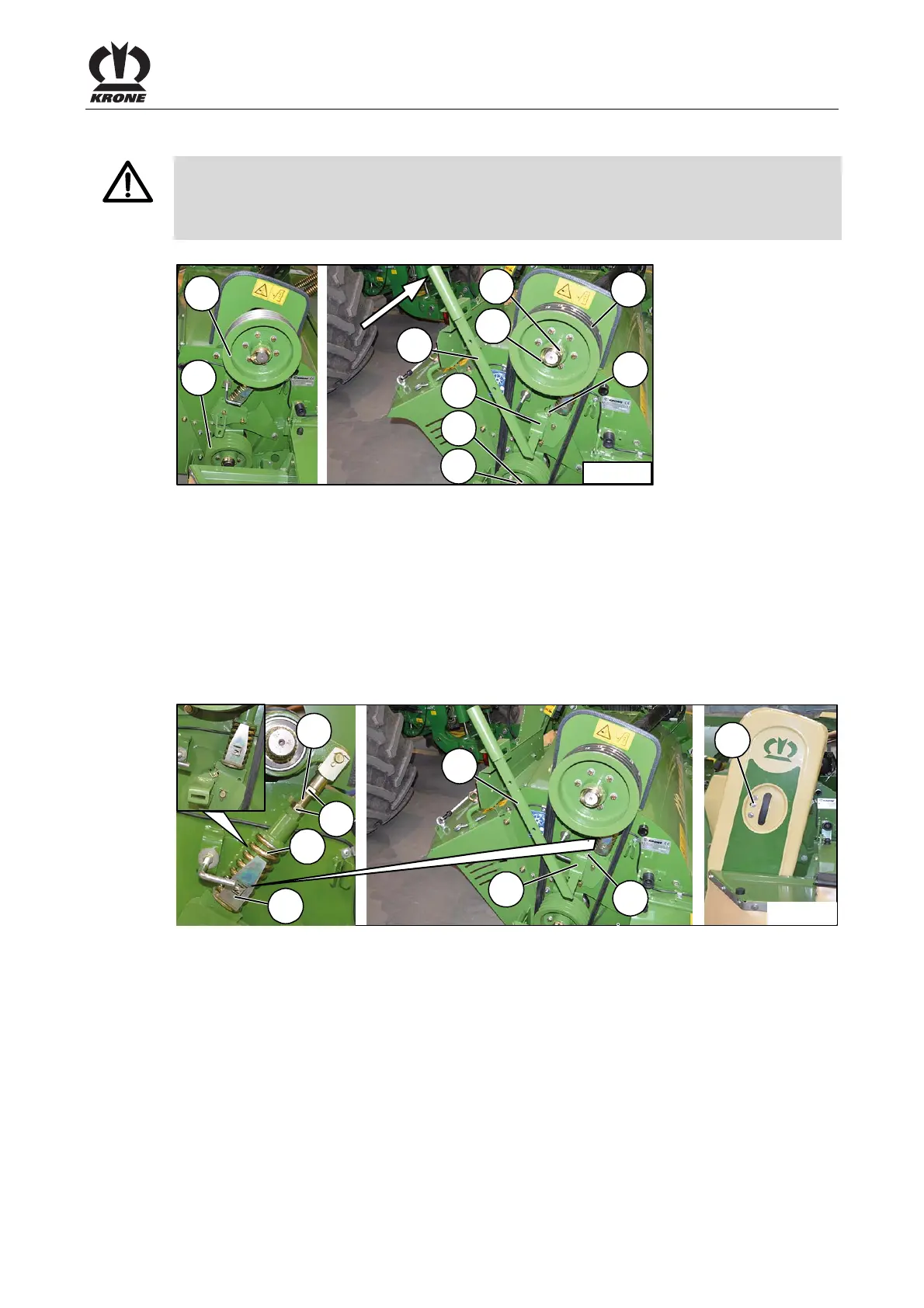

Fig. 45
Pos: 70.32 /BA/Einste llungen/Mähwerke/ Zetterdrehzahl/ Montage der Keilrie menscheiben EC F 360 CV/CR Text @ 245\mod_ 1396009090393_78. docx @ 1916768 @ @ 1
• Push pulleys (1) onto the shaft top and bottom.
Make certain the pulleys are flush with each other.
• Secure pulley with disc (3) and linch pin (4).
• Pull V-belts (5) onto the V-belt pulleys.
• To tension the belt drive, insert blade key (6) into the tensioning device (7) and push it to
the front until it engages.
• Secure tensioning device with linch pin (8).
Pos: 70.33 /Übersc hriften/Überschri ften 3/P-T/RRiemenantri eb spannen @ 328\mod_14266 86085413_78.doc x @ 2514945 @ 3 @ 1
10.3.3 Tensioning Belt Drive
Pos: 70.34 /BA/Einste llungen/Mähwerke/ Zetterdrehzahl/ Riementrieb spannen EC F 360 C V/CR Bild @ 248\mod_1396531120 669_78.docx @ 1930925 @ @ 1
EC-521-0
1
2
4
3
7
5
6
8
Fig. 46
Pos: 70.35 /BA/Einste llungen/Mähwerke/ Zetterdrehzahl/Sp annen des Riementiebes E C F 360 CV/CR Text @ 248\mod_1396531 113982_78.docx @ 1930716 @ @ 1
When tensioning the V-belts, make certain that the adjustment aid (1) is flush with the upper
edge of the tension spring (2).
• Loosen nuts (3) if the adjustment aid is not flush.
• Tension with threaded rod (4), tension spring (2) and lock with nuts (3) so that the
adjustment aid is flush with the upper edge of the spring.
• Mount V-belt guard (8).
