Start-up
56
Pos: 64.28 /Übersc hriften/Überschri ften 2/F-J/Federsi cherungskette prüfen @ 252\ mod_1397136427230_ 78.docx @ 1945436 @ 2 @ 1
7.4 Checking Spring Retaining Chain
Pos: 64.29 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Federsi cherungskette EC F 360 gesc hoben Bild @ 248\mod_13965 15215944_78.doc x @ 1930026 @ @ 1

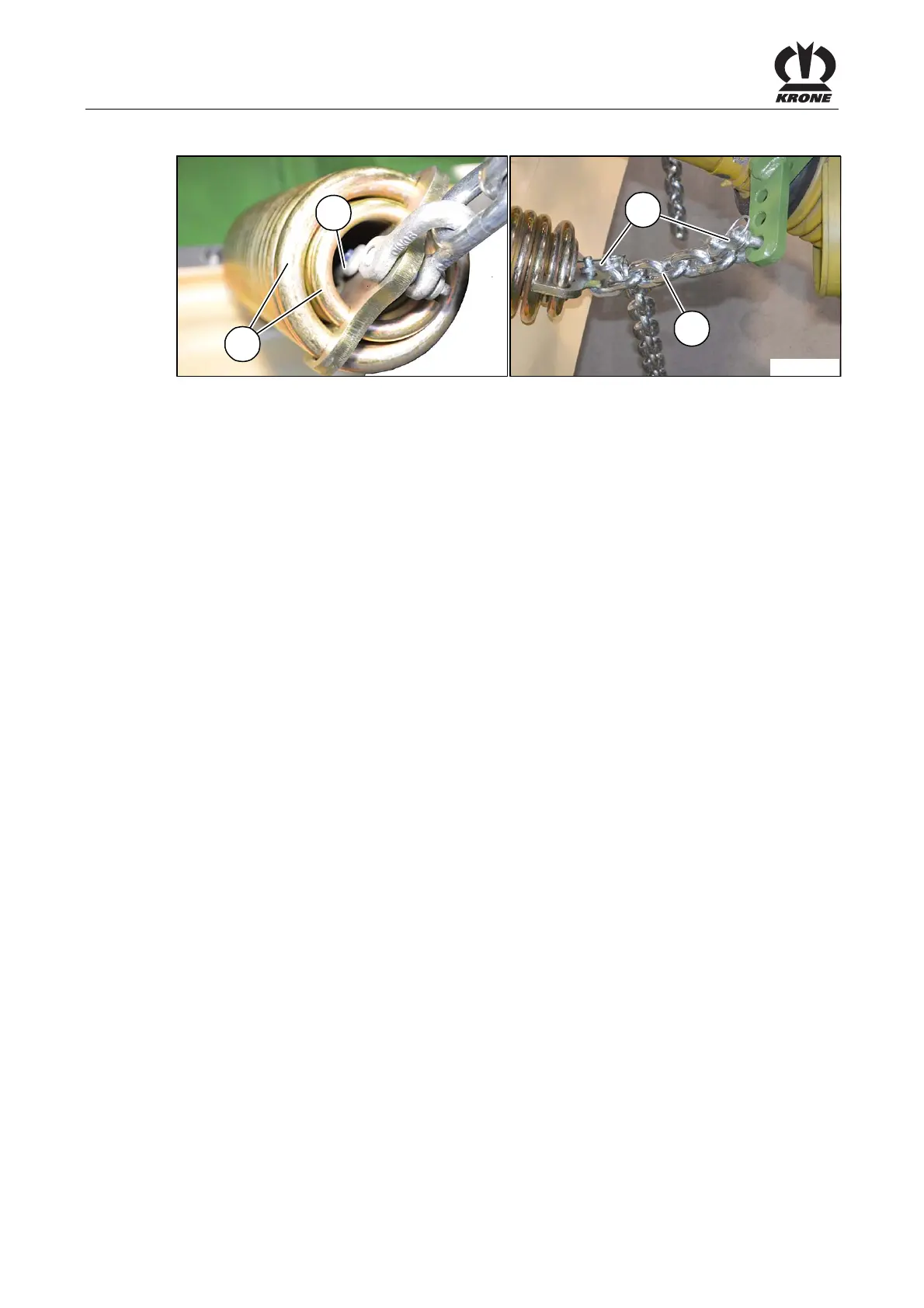

Fig. 26
Pos: 64.30 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Federsi cherungskette EC F 360 gesc hoben Text @ 248\mod_13965 15454546_78.doc x @ 1930145 @ @ 1
The spring safety chain (2) located in the relief spring (1) must not be tensioned in the mowing
position and it must be checked via visual inspection.
To do this:
• Move the mowing unit to working position.
• Check spring safety chain via visual inspection.
Everything is OK if the spring safety chain sags.
If the spring safety chain tensions, the retaining chain must be hooked in by one link
longer into the tension jack.
To do this:
• Move mowing unit to headland position.
• Hang retaining chain (3) by one link longer into the tension jack.
Repeat this process until the spring safety chain is no longer tensioned in working position.
Pos: 64.31 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0. docx @ 4165 @ @ 1
EC-515-0
2
1
EC-517-0
3
4
