Maintenance - Blade Changing
107
Pos: 106.28 /Übersc hriften/Überschr iften 3/K-O/Messersc hnellverschluss @ 0\mo d_1197271019859_78.doc x @ 16597 @ 3 @ 1
13.2.2 Blade Quick-Fit Device
Pos: 106.29 /BA/W artung/Mähwerke/Messer schraub / Messerschne llverschluss/Be schreibung Messer wechsel Messerschnell verschluss @ 0\mod_1 197271100500_78.doc x @ 16616 @ @ 1
EC-251-0
3 4
2
5

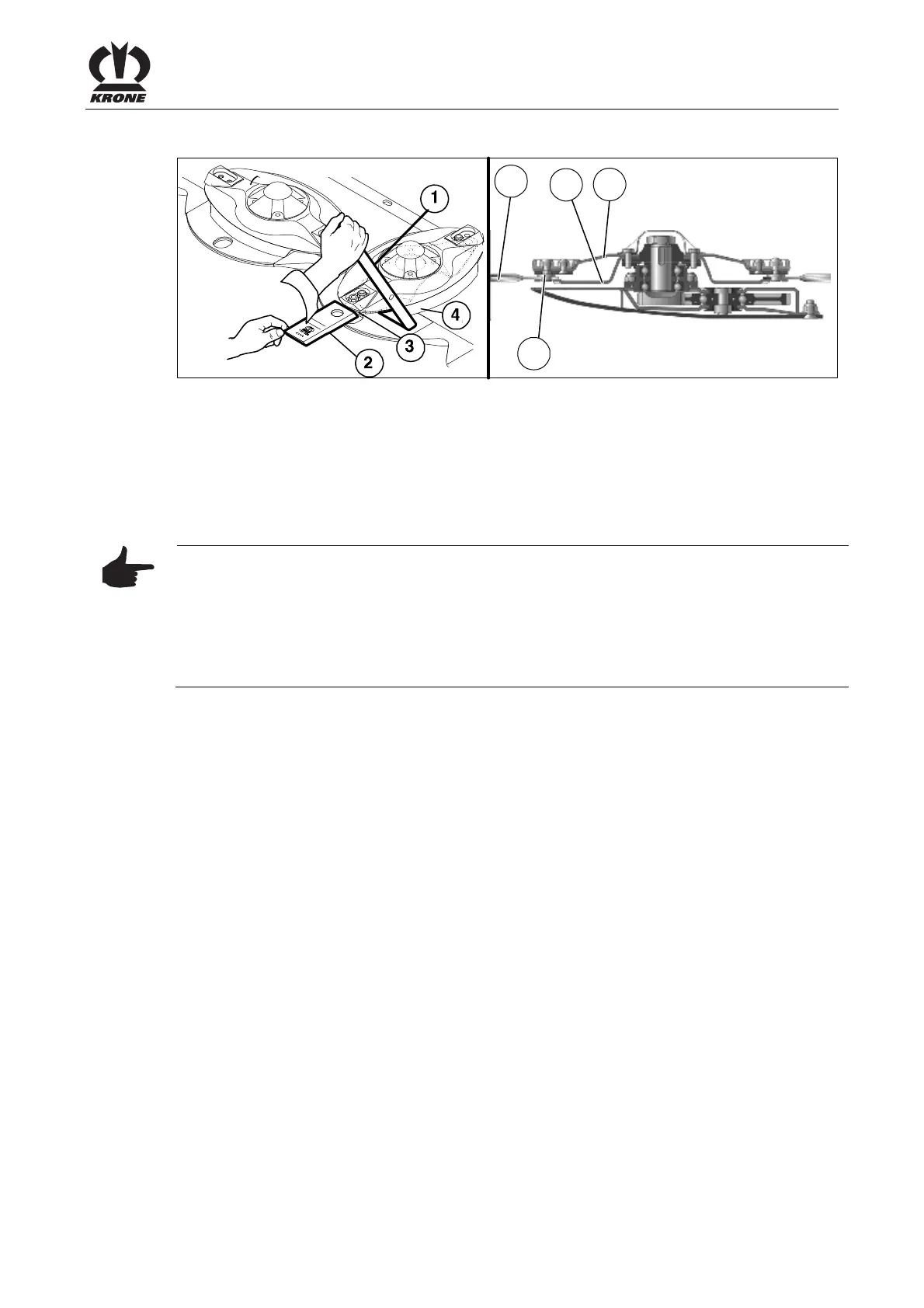

Fig. 71
• Clean the area.
• Remove damaged or worn blades.
• Push the special tool (1) {blade key} between the cutter disc (4) and leaf spring (3) and
press down with one hand.
• Guide a new blade (2) onto the retaining bolt and allow the blade key to return upwards.
• After fitting the blades, fold the protective device down again.
Note
• The cutter blades of anticlockwise rotating cutting discs / blade drums are different than
those of clockwise rotating ones. Make certain the direction of rotation is correct when
installing!
• The arrow on the cutter blades must match the direction of rotation of the corresponding
cutting discs / blade drums.
• The hex nut (4) used to secure the retaining bolts must not be used more than once.
Order No. for clockwise rotating blade: 139-889
Order No. for anticlockwise rotating blade: 139-888
