Maintenance - Gearbox

Pos: 91.1 /Überschri ften/Überschri ften 2/U-Z/Winkelgetr iebe @ 0\mod_11970059182 99_78.docx @ 15435 @ 2 @ 1

12.3 Angular gearbox

Pos: 91.2 /Abkürzung en /CR-Ausführung @ 194\ mod_1383299073254_78. docx @ 1647987 @ @ 1

CR design

Pos: 91.3 /Überschri ften/Überschri ften 3/K-O/Oberteil @ 10\ mod_1221639445993_78. docx @ 135690 @ 3 @ 1

12.3.1 Top part

Pos: 91.4 /BA/War tung/Hinweis Ölstandsk ontrolle in Arbeitsste llung und in waagerecht er Stellung der Maschi ne vornehmen @ 194\mod_138355 4973754_78.doc x @ 1649577 @ @ 1

Note

Perform oil level check and oil change while the machine is in a horizontal position!

Pos: 91.5 /BA/War tung/Ölkontrolle_Wec hsel/Mähwerke/Bi ld Winkelgetriebe Obertei l CRI @ 10\mod_12215558 31463_78.docx @ 135326 @ @ 1

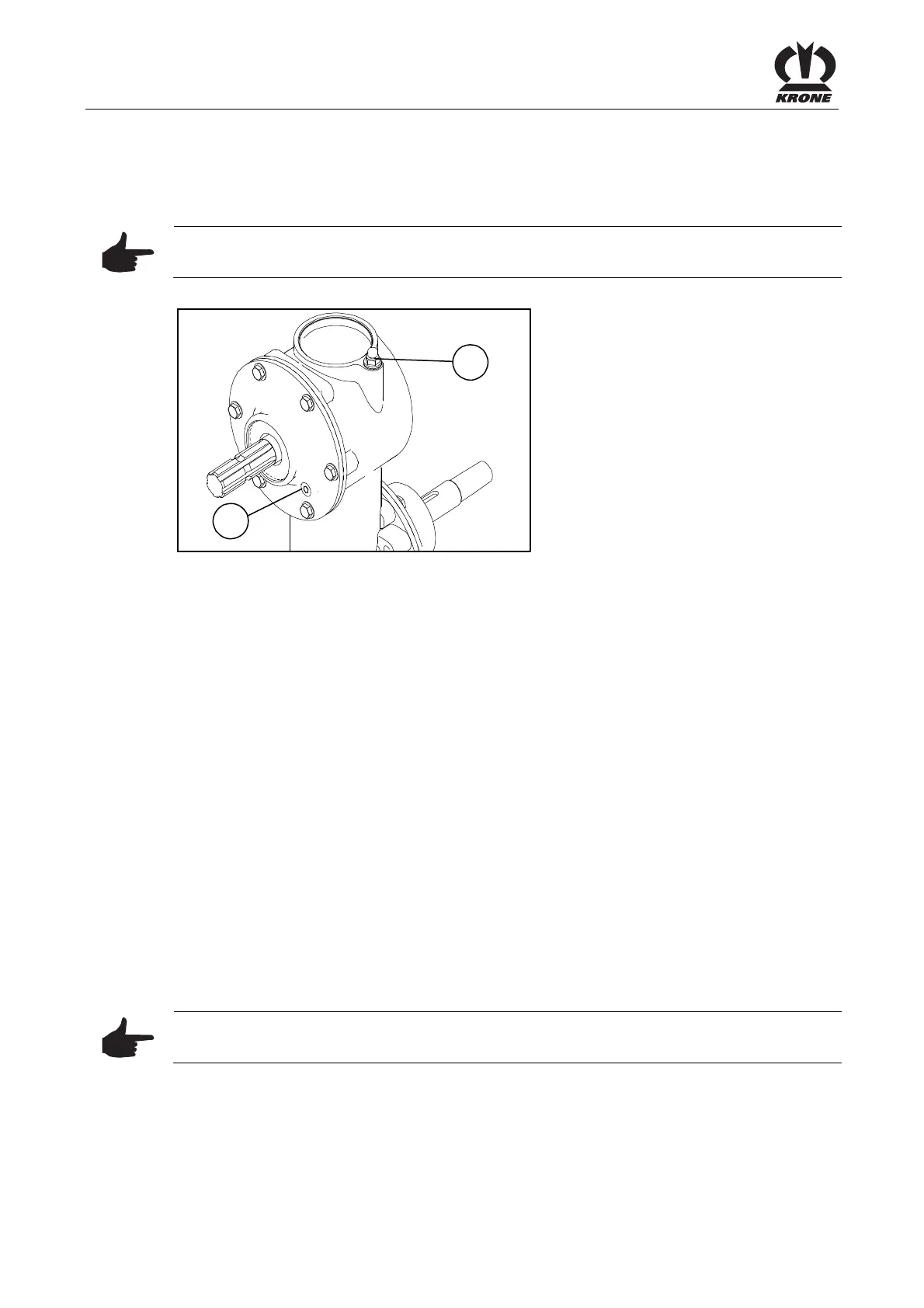

EC-210-0

Figure 57

Pos: 91.6 /BA/War tung/Ölkontrolle_W echsel/Ölwechsel / Ölkon trolle:Legende zu Graf ik Kontrollschraub e / Einfüllschraube @ 194\ mod_1383298407773_ 78.docx @ 1647929 @ @ 1

1) Inspection screw / control hole 2) Filler plug / oil filling hole

Pos: 91.7 /BA/War tung/Ölkontrolle_Wec hsel/Ölqualität /Ö lmenge: siehe Kapitel Techni sche Daten @ 134\mod_135 0483480921_78.doc x @ 1188085 @ @ 1

Oil Quality / Amount of Oil: Refer to Chapter Technical Data “Lubricants”

Pos: 91.8 /BA/War tung/Ölkontrolle_W echsel/Ölkontrolle / Ö lwechsel Intervall: si ehe Kapitel War tung „Wartungstabelle“ @ 134\ mod_1350483605921_78. docx @ 1188115 @ @ 1

Interval for oil level check and oil change: refer to chapter Maintenance “Maintenance Table”

Pos: 91.9 /BA/War tung/Ölkontrolle_Wec hselÖlkontrolle NEU über Kontrollschraube @ 140\ mod_1355141753680_7 8.docx @ 1244582 @ @ 1

Oil level check:

• Screw out inspection screw.

• Oil level up to control hole.

If the oil reaches the control hole:

• Screw in the inspection screw and tighten it securely.

If the oil does not reach the control hole:

• Screw out filler plug.

• Top up oil via oil filling hole until the control hole is reached.

• Screw in the inspection screw and the filler plug and tighten them securely.

Pos: 91.10 /BA/W artung/Ölkontrolle_Wec hsel/Ölwechsel NE U Kontrollschraube, Einf üllschraube Öl absauge n @ 207\mod_138677359965 1_78.docx @ 1716145 @ @ 1

Oil change:

Collect escaping oil in a suitable container.

• Screw out inspection screw and filler plug and drain the oil.

• Top up new oil via oil filling hole until the control hole is reached.

• Screw in inspection screw and filler plug and tighten them securely.

Pos: 91.11 /BA/W artung/Ölkontrolle_Wec hsel/Hinweis - Altöl ordn ungsgemäß entsorgen @ 0\ mod_1197008117002_78. docx @ 15550 @ @ 1

Note

The used oil must be disposed of correctly
