Krone EasyCut F 360 CV User Manual

Maintenance - Gearbox
90
Pos: 77 /Überschrif ten/Überschrif ten 1/U-Z/Wartung - Getriebe @ 2\ mod_1203058202823_78. docx @ 64495 @ 1 @ 1
12 Maintenance - Gearbox
Pos: 78.1 /Überschri ften/Überschri ften 2/A-E/Eingangsgetr iebe @ 0\mod_119700597 9596_78.docx @ 15454 @ 2 @ 1
12.1 Input gearbox
Pos: 78.2 /BA/War tung/Hinweis Ölstandsk ontrolle in Arbeitsste llung und in waagerecht er Stellung der Maschi ne vornehmen @ 194\mod_138355 4973754_78.doc x @ 1649577 @ @ 1
Note
Perform oil level check and oil change while the machine is in a horizontal position!
Pos: 78.3 /BA/War tung/Ölkontrolle_Wec hsel/Mähwerke/Bi ld Winkelgetriebe EC F 360 CV/ CR @ 245\mod_1395998936051_ 78.docx @ 1916180 @ @ 1
1
2
EC-503-0
4

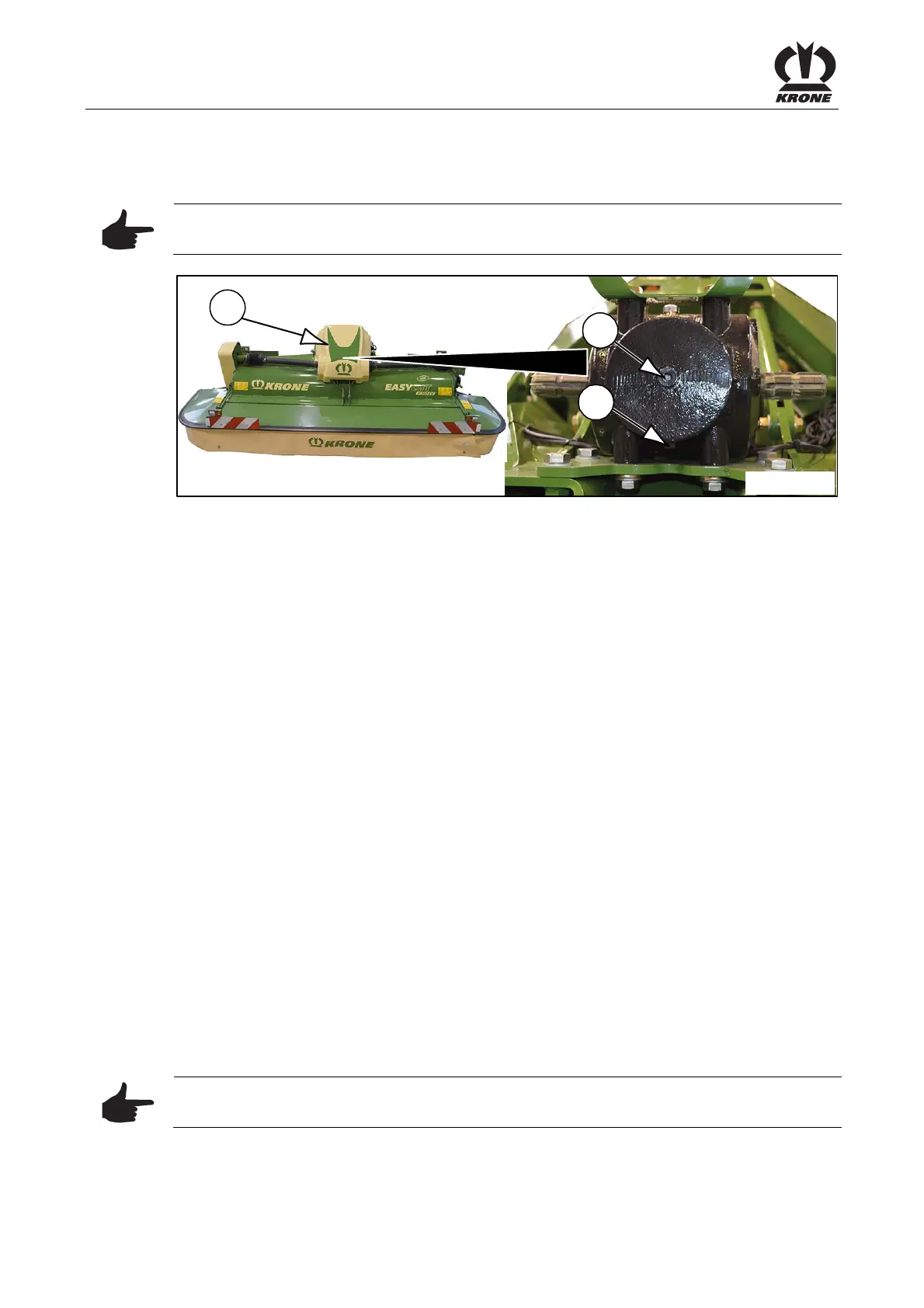

Fig. 55
Pos: 78.4 /BA/War tung/Ölkontrolle_W echsel/Ölwechsel / Ölkon trolle:Legende zu Graf ik Kontrollschraub e / Ablassschraube @ 194\mo d_1383299451132_78. docx @ 1648045 @ @ 1
1) Inspection screw / control hole 2) Drain plug
Pos: 78.5 /BA/War tung/Ölkontrolle_Wec hsel/Ölqualität /Ö lmenge: siehe Kapitel Techni sche Daten @ 134\mod_135 0483480921_78.doc x @ 1188085 @ @ 1
Oil Quality / Amount of Oil: Refer to Chapter Technical Data “Lubricants”
Pos: 78.6 /BA/War tung/Ölkontrolle_W echsel/Ölkontrolle / Ö lwechsel Intervall: si ehe Kapitel War tung „Wartungstabelle“ @ 134\ mod_1350483605921_78. docx @ 1188115 @ @ 1
Interval for oil level check and oil change: refer to chapter Maintenance “Maintenance Table”
Pos: 78.7 /BA/War tung/Ölkontrolle_Wec hsel/Ölwechsel_AL T/Schutz (4) demontieren @ 58\mod_129673539628 6_78.docx @ 553788 @ @ 1
• Remove the guard (4)
Pos: 78.8 /BA/War tung/Ölkontrolle_Wec hselÖlkontrolle NEU über Kontrollschraube @ 140\ mod_1355141753680_7 8.docx @ 1244582 @ @ 1
Oil level check:
• Screw out inspection screw.
• Oil level up to control hole.
If the oil reaches the control hole:
• Screw in the inspection screw and tighten it securely.
If the oil does not reach the control hole:
• Screw out filler plug.
• Top up oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
Pos: 78.9 /BA/War tung/Ölkontrolle_Wec hsel/Ölwechsel_AL T/Schutz (4) montieren @ 58\mod_1296735440474_ 78.docx @ 553814 @ @ 1
• Install the guard (4)
Pos: 78.10 /BA/W artung/Ölkontrolle_Wec hselÖlwechsel NEU @ 140\m od_1355142057277_7 8.docx @ 1244610 @ @ 1
Oil change:
Collect escaping oil in a suitable container.
• Screw out oil drain plug and drain the oil.
• Screw out inspection screw and filler plug.
• Screw in oil drain plug and tighten it securely.
• Top up new oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
Pos: 78.11 /BA/W artung/Ölkontrolle_Wec hsel/Ölwechsel_AL T/Schutz (4) montieren @ 58\mod_1296735440474 _78.docx @ 553814 @ @ 1
• Install the guard (4)
Pos: 78.12 /BA/W artung/Ölkontrolle_Wec hsel/Hinweis - Altöl ordn ungsgemäß entsorgen @ 0\ mod_1197008117002_78. docx @ 15550 @ @ 1
Note
The used oil must be disposed of correctly
Pos: 79 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
