Commissioning
49
Pos: 62.20 /BA/Er stinbetriebnahme/Easy Cut/Kuppelpunkte/ Oberlenker @ 236\mod_13 94445969901_78.doc x @ 1871543 @ @ 1

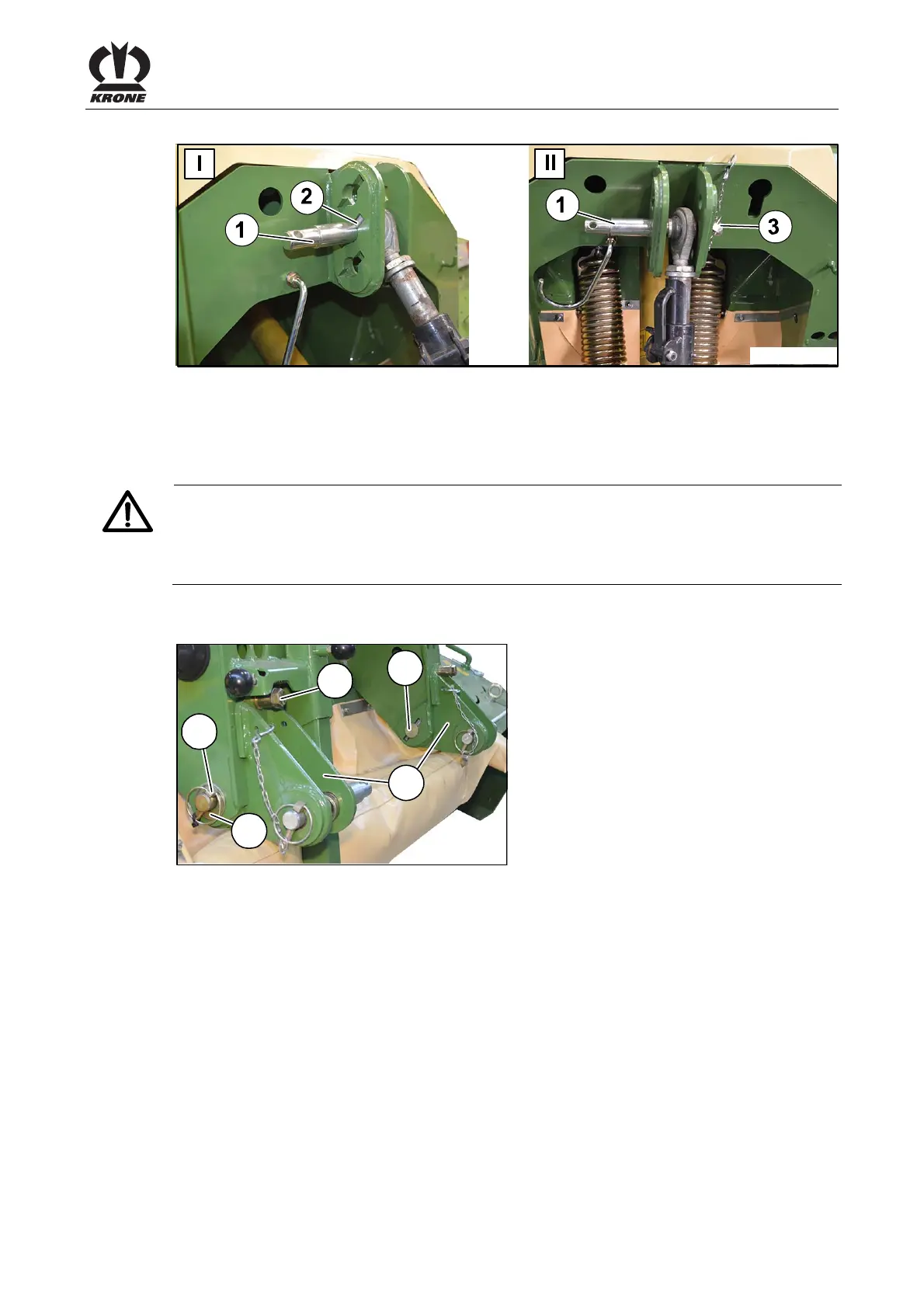

Top link
Pos: 62.21 /BA/Er stinbetriebnahme/Easy Cut/Kuppelpunkte/ Kuppelpunkte Oberlenk er Bild EC F 360 CV/CR @ 244\mod_1395 818138801_78.doc x @ 1910057 @ @ 1
EC00488-0
Fig. 16
Pos: 62.22 /BA/Er stinbetriebnahme/Easy Cut/Kuppelpunkte/ Auswahl Oberlenker loch Text EC B 360 CV/CR @ 244\mod_139 5820161255_78.doc x @ 1910403 @ @ 1
Depending on the length of the top link, the hole pattern for the top link in the three-point linkage
must be selected.
Pos: 62.23 /BA/Er stinbetriebnahme/Easy Cut/Kuppelpunkte/ Kuppelpunkte Text Oberl enker EC F 360 CV/CR Text @ 244\m od_1395818979649_78.doc x @ 1910266 @ @ 1
Insert top link bolt into the hole pattern so that the roll pin (2) engages in the groove.
Secure top link bolt with spring cotter pin (3).
Pos: 62.24 /BA/Inbetr iebnahme/EasyCut/Ac htung Abstand der Masc hine zum Traktor zu gering @ 89\ mod_1321957875595_7 8.docx @ 756771 @ @ 1
Caution! - The distance between the machine and the tractor is too small
Effect: damage to the tractor or the machine
Check free space for the front wheels at all steering angles. If the guards or swath flaps come
into contact with the front wheels of the tractor, lower suspension arm adapters must be
installed between the lower suspension arm and the Weiste triangle.
Pos: 62.25.1 /Überschr iften/Überschr iften 3/U-Z/Unterle nkeradapter @ 79\mod_1314 688743340_78.doc x @ 697532 @ 3 @ 1
6.4.2 Lower suspension arm
Pos: 62.25.2 /BA/I nbetriebnahme/EasyC ut/Unterlenkeradap ter/Unterlenker adapter Bild EC F 360 CV/CR @ 245\mod_1 395831662445_78. docx @ 1911716 @ @ 1
EC-489-0
2
3
1
4
5
Fig. 17
Pos: 62.25.3 /BA/I nbetriebnahme/EasyC ut/Unterlenkeradap ter/Unterlenker adapter fixieren EC F-360 CV/ CR @ 245\mod_139584422 3552_78.docx @ 1912755 @ @ 1
The lower link adapters (1) serve as extension to increase the distance from the machine to the
front wheels of the tractor.
Pos: 62.25.4 /BA/I nbetriebnahme/EasyC ut/Unterlenkeradap ter/Unterlenker adapter montieren Te xt @ 245\mod_1395844330614 _78.docx @ 1912784 @ @ 1
Mounting lower link adapter
Insert the lower link adapter (1) in the openings of the three-point linkage.
Insert bolt (2) from the inside of the three-point linkage into the hole.
Make certain that the roll pin is located in the groove.
Secure bolt (2) with disc (3) and linch pin (4).
Screw lower link adapter (1) with disc, sleeve, detent edged washer and disc (5) on the
three-point hitch.
