Operation
66
Pos: 68.7 /BA/Bedienung / EasyCut/Schutze/Sc hutztuch spannen EC F 360 CV/ CR @ 245\mod_139593476 7761_78.docx @ 1915511 @ 2 @ 1

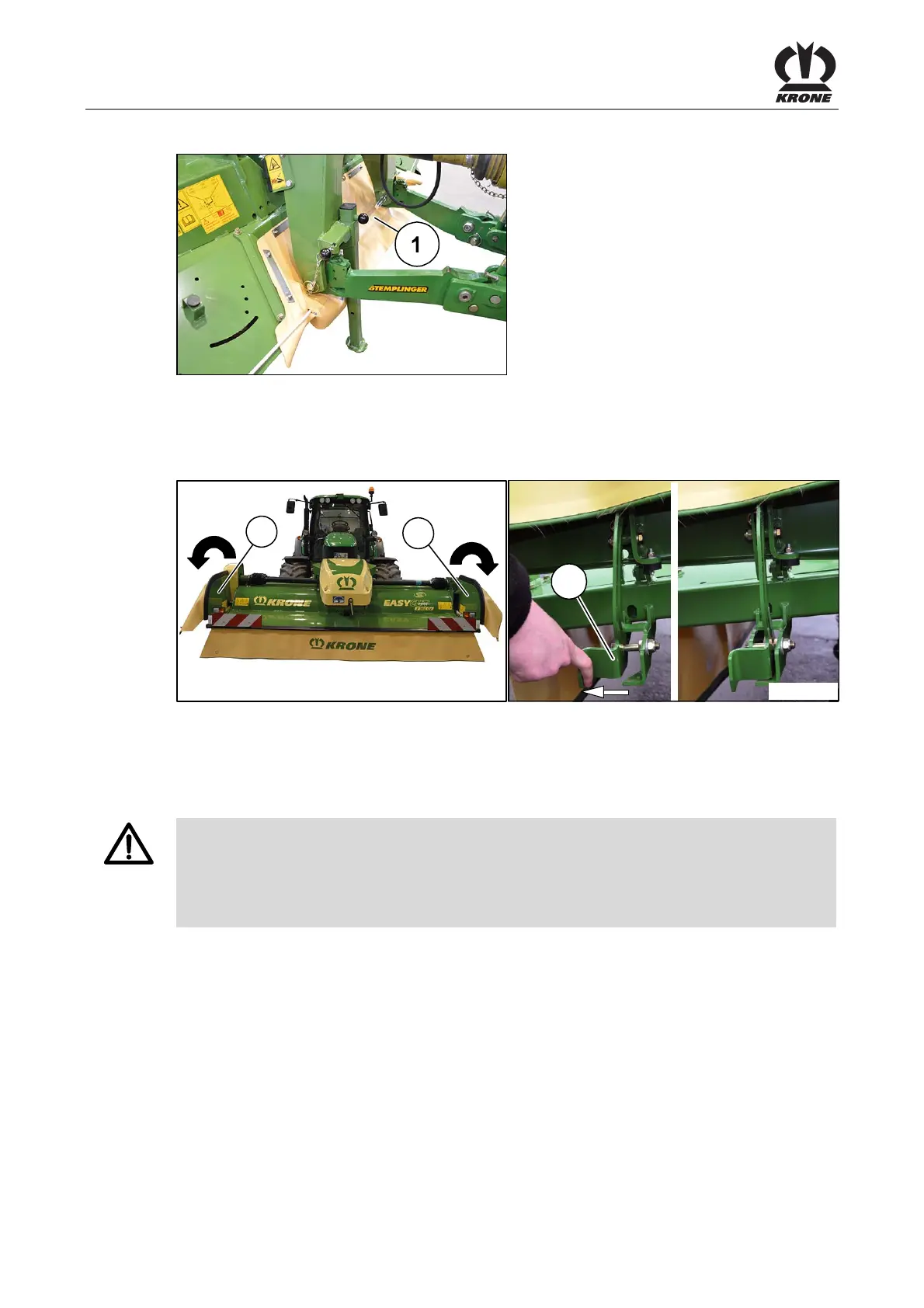

9.2 Tensioning Guard Cloth
EC-495-0
Fig. 35
Every time before using the mower, the guard cloth (1) must be tensioned so that it cannot be
caught by the CV roller.
Pos: 68.8 /Überschri ften/Überschri ften 2/P-T/Schutze in Ar beitsstellung bringe n @ 35\mod_1257499551281_ 78.docx @ 329310 @ 2 @ 1
9.3 Moving the guards into the working position
Pos: 68.9 /BA/Bedienung / EasyCut/Schutze/Sc hutze in Arbeitsst ellung bringen EC F 360 CV/CR @ 245\ mod_1395934916074 _78.docx @ 1915540 @ @ 1
1
EC-496-0
1
EC-428-0
2
Fig. 36
Move guard (1) right and left to working position before every use.
Loosen locking (2).
Fold down guard.
Pos: 68.10.1 /BA/Bedi enung /EasyCut/Sc hutze/Bei Ausführung hydr aulischer Seitensc hutz @ 332\mod_14283878 61893_78.docx @ 2536 837 @ @ 1
With hydraulic side guards design
Pos: 68.10.2 /BA/Si cherheit/7. Gefahr enhinweise alt/Mäh werke/Warnung Quetschgef ahr/Senken von Seitensc hutz @ 331\mod_14278026 96458_78.docx @ 2532405 @ @ 1
WARNING!
Crushing hazard when lowering the side guards
While lowering the hydraulic side guards, there is a danger of being crushed between side
guard and upper protective cover.
While lowering the side guards, make sure that there is no one in the danger zone.
Pos: 68.10.3 /BA/Bedi enung /EasyCut/Sc hutze/Absenken hydrau lischer Seitenschu tz_Text @ 332\mod_142838739 1162_78.docx @ 2536775 @ @ 1
Fold down the side guards by means of double-action control unit (red1/blue1) of the
tractor.
