Krone EasyCut F 360 CV User Manual

Maintenance - Gearbox
95
Pos: 97 /Überschrif ten/Überschrif ten 2/P-T/Riemenantrieb sp annen @ 248\mod_139653269 1160_78.docx @ 1931044 @ 2 @ 1
12.6 Tensioning Belt Drive
Pos: 98 /Abkürzungen / CV-Ausführung @ 95\mod_ 1328530180147_78.doc x @ 799128 @ @ 1
CV-Design
Pos: 99 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/W ARNUNG! – Verletzungsgefahr durch unter Federspannung steh ende Bauteile! @ 252\ mod_1397140836170_78. docx @ 1946524 @ @ 1
WARNING!
When tensioning and releasing, the blade key is under spring tension. If the blade key is
released too early, then it will spring back.
This may result in injuries.
• Do not release the blade key when tensioning and releasing.
Pos: 100 /BA/Einstel lungen/Mähwerke/ Zetterdrehzahl/Rie mentrieb spannen EC F 360 CV/ CR Bild @ 248\mod_139653112 0669_78.docx @ 1930925 @ @ 1
EC-521-0
1
2
4
3
7
5
6
8

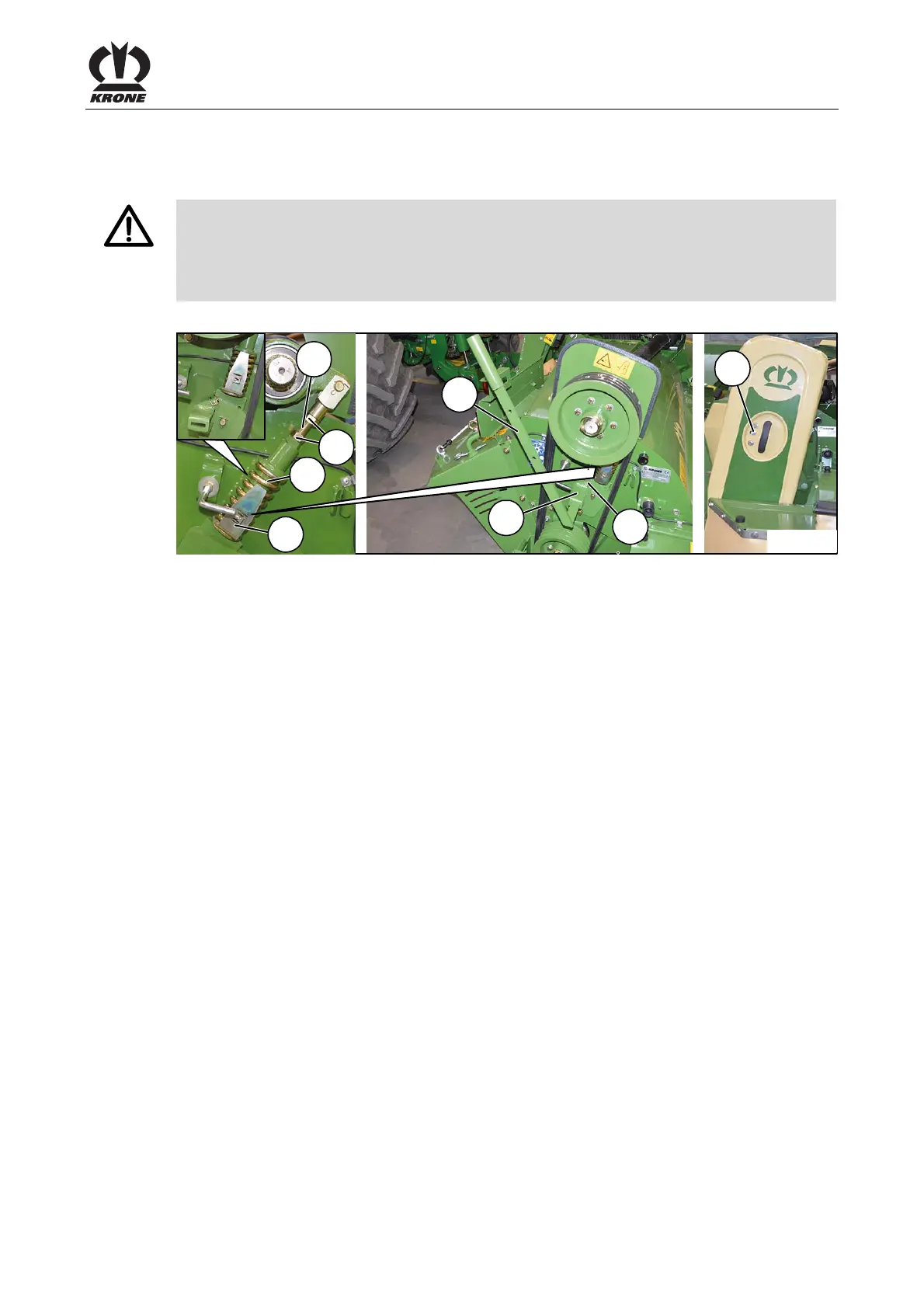

Fig. 60
Pos: 101 /BA/Einstel lungen/Mähwerke/ Zetterdrehzahl/Spann en des Riementiebes EC F 360 CV/ CR Text @ 248\mod_13965311139 82_78.docx @ 1930716 @ @ 1
When tensioning the V-belts, make certain that the adjustment aid (1) is flush with the upper
edge of the tension spring (2).
• Loosen nuts (3) if the adjustment aid is not flush.
• Tension with threaded rod (4), tension spring (2) and lock with nuts (3) so that the
adjustment aid is flush with the upper edge of the spring.
• Mount V-belt guard (8).
