11.4.4 Deviating Torque
Pos: 73.16 /BA/W artung/Drehmomente / Anziehdr ehmomente/Abweic hendes Drehmoment Big M 400 @ 0\m od_1196949184374_78.d ocx @ 15274 @ @ 1
Screws / nuts MA [Nm]
Nut for shear protection (rotary hub) 300
Bearing housing for cutting disc 42
Bearing housing for blade drum 42
Pos: 73.17 /Übersc hriften/Überschri ften 2/U-Z/Zwischengel enkwelle @ 3\mod_12047 02241039_78.docx @ 7148 1 @ 2 @ 1
11.5 Intermediate PTO shaft
Pos: 73.18 /BA/Inbetr iebnahme/EasyCut/An bau Gelenkwelle/ Zwischengelenkwell e/Zwischengelenk welle EC F 360 CV/CR @ 245\mod_1395922 648686_78.doc x @ 1914733 @ @ 1
EC-492-0
1
2

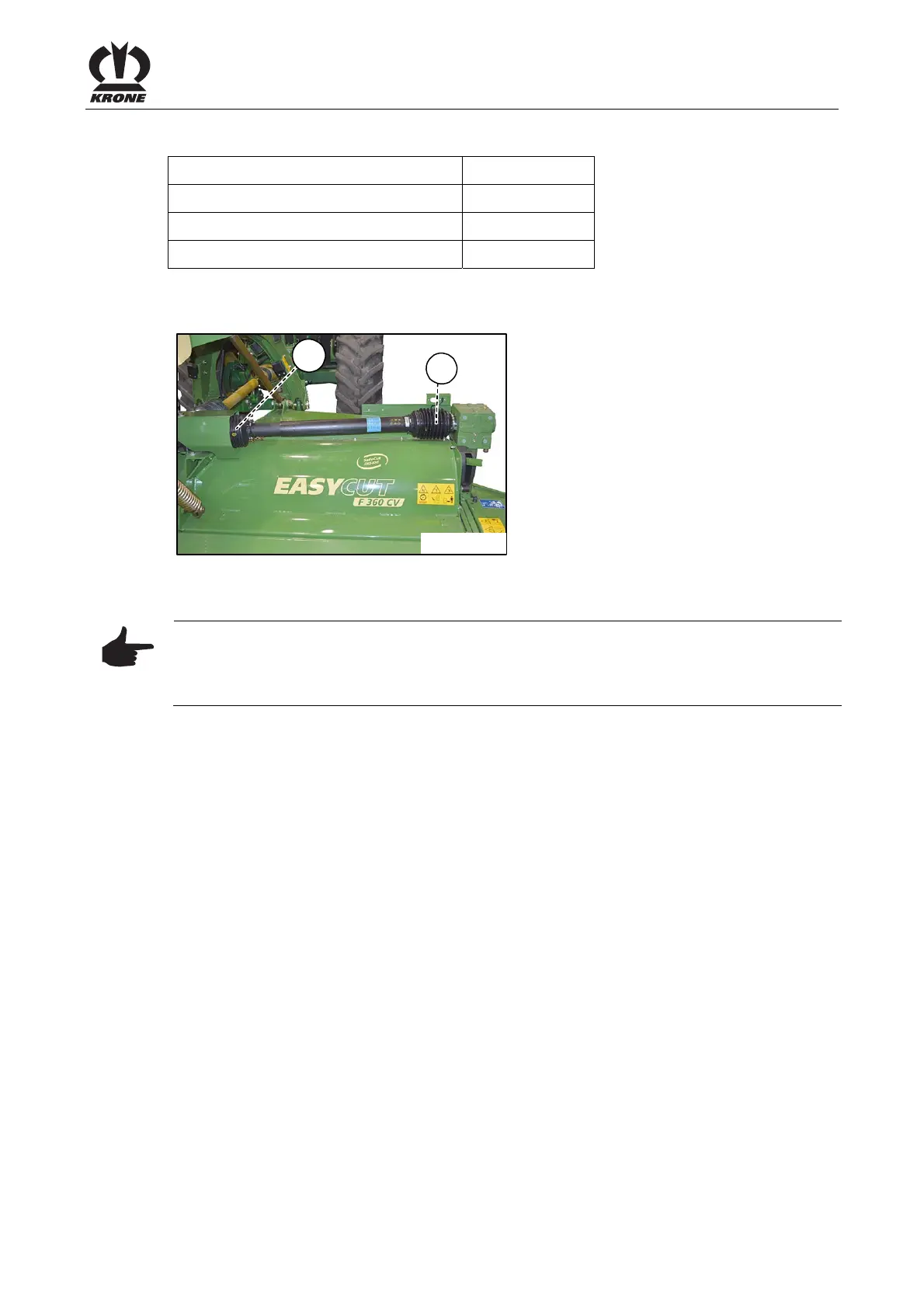

Fig. 51
The intermediate universal shaft is mounted with the freewheel (1) to the angular gearbox. The
friction clutch (2) of the intermediate universal shaft is attached to the input gearbox.
Pos: 73.19 /BA/Inbetr iebnahme/EasyCut/ Hinweis Reibkupplung @ 11\mod_1223358975938 _78.docx @ 145593 @ @ 1
Note - Friction Clutch
Effect: Conserve functionality and increased service life
• The friction clutch (2) must be vented prior to commissioning and once a year prior to
harvesting. (See section Before the Start of the New Season "Friction clutch")
