Settings
74
Pos: 70.24 /Übersc hriften/Überschri ften 3/P-T/RRiemensc heibe wechseln @ 328\mod_1 426683455177_78.doc x @ 2514613 @ 3 @ 1
10.3.1 Changing Pulley
Pos: 70.25 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ WARNUNG! – Verletzungsgefahr durch unter Federspan nung stehende Bauteil e! @ 252\mod_13971408361 70_78.docx @ 1946524 @ @ 1
WARNING!
When tensioning and releasing, the blade key is under spring tension. If the blade key is
released too early, then it will spring back.
This may result in injuries.
Do not release the blade key when tensioning and releasing.
Pos: 70.26 /BA/Einste llungen/Mähwerke/ Zetterdrehzahl/ Riemenschibe wechse ln EC F 360 CV/CR Bild @ 245\mod_13960 07294829_78.docx @ 19167 39 @ @ 1
1
2
EC-520-0
4
3
5
6
7
8
8
7

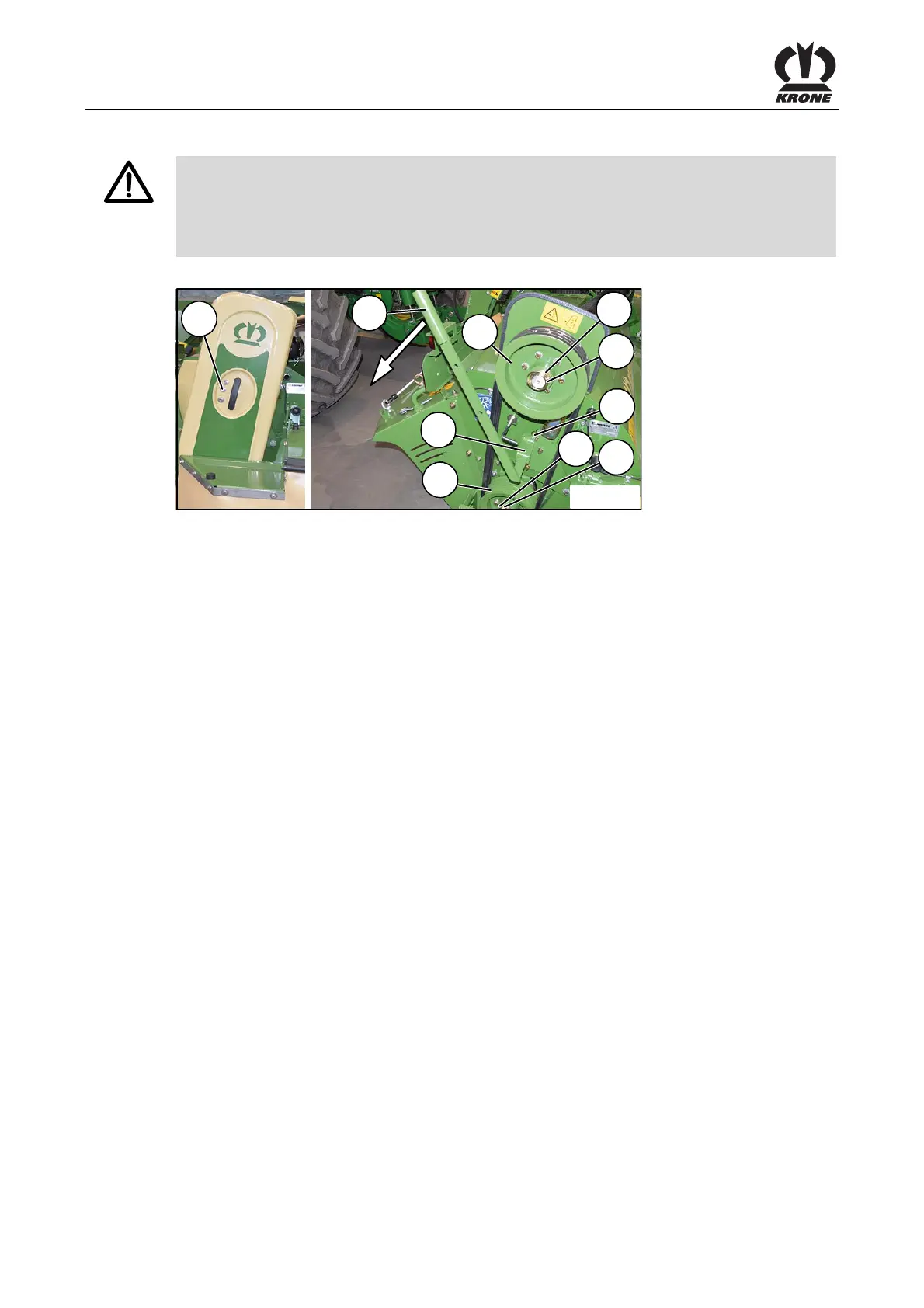

Fig. 44
Pos: 70.27 /BA/Einste llungen/Mähwerke/ Zetterdrehzahl/ Riemenschibe wechse ln EC F 360 CV/CR Text @ 245\mod_13960049 44381_78.docx @ 1916621 @ @ 1
Unlock the drive guard on the locking screw (1) and remove it.
Pull out linch pin (2).
To release the belt drive, insert the blade key (3) in the tensioning device (4) and pull it to
the rear.
• Remove V-belt.
To pull the pulleys (5) and (6) from the shaft, remove linch pin (7) and discs (8).
