Operation
68
Pos: 68.19 /Übersc hriften/Überschri ften 2/A-E/Abbau der Masc hine @ 3\mod_12047923878 24_78.docx @ 73245 @ 2 @ 1
9.6 Detaching the machine
Pos: 68.20 /BA/Sic herheit/EasyCut/Gefa hr - Maschine abstelle n_ohne Hydrauliksch lauch @ 3\mod_1204793072 152_78.docx @ 73283 @ @ 1
Danger! - Unexpected movements of the machine
Effect: Danger to life, serious injuries
• No one is permitted inside the danger zone.
• Park the machine on a solid and even surface.
• You should not unhitch the machine until the engine has been switched off and the ignition
key has been removed.
• Secure the tractor against rolling.
• Use extreme caution when attaching implements to or detaching them from the tractor! The
accident prevention regulations must be complied with absolutely.
• When detaching the machine, do not walk between the tractor and the machine!
Pos: 68.21 /Übersc hriften/Überschri ften 2/F-J/Halteket ten demontieren @ 240\mod_13 95128934085_78.doc x @ 1889511 @ 2 @ 1
9.7 Dismounting Retaining Chains
Pos: 68.22 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Einstellung an de n Halteketten @ 4\mod_1211 349830489_78.doc x @ 83185 @ @ 1
Danger! - Adjustment on the retaining chains
Effect: Danger to life or serious injuries
• The retaining chains may be removed in transport position only. In the working position the
retaining chains are subject to high tensile stress.
• Severe injury may occur if the retaining chains are removed while in the working position.
Pos: 68.23 /BA/Bedienun g /EasyCut/Abbau EC F 320 CV / F360 CV/CR @ 332\mod_142858966 8168_78.docx @ 2540608 @ @ 1
4
EC-498-1
6
5
1
8
2
3
7

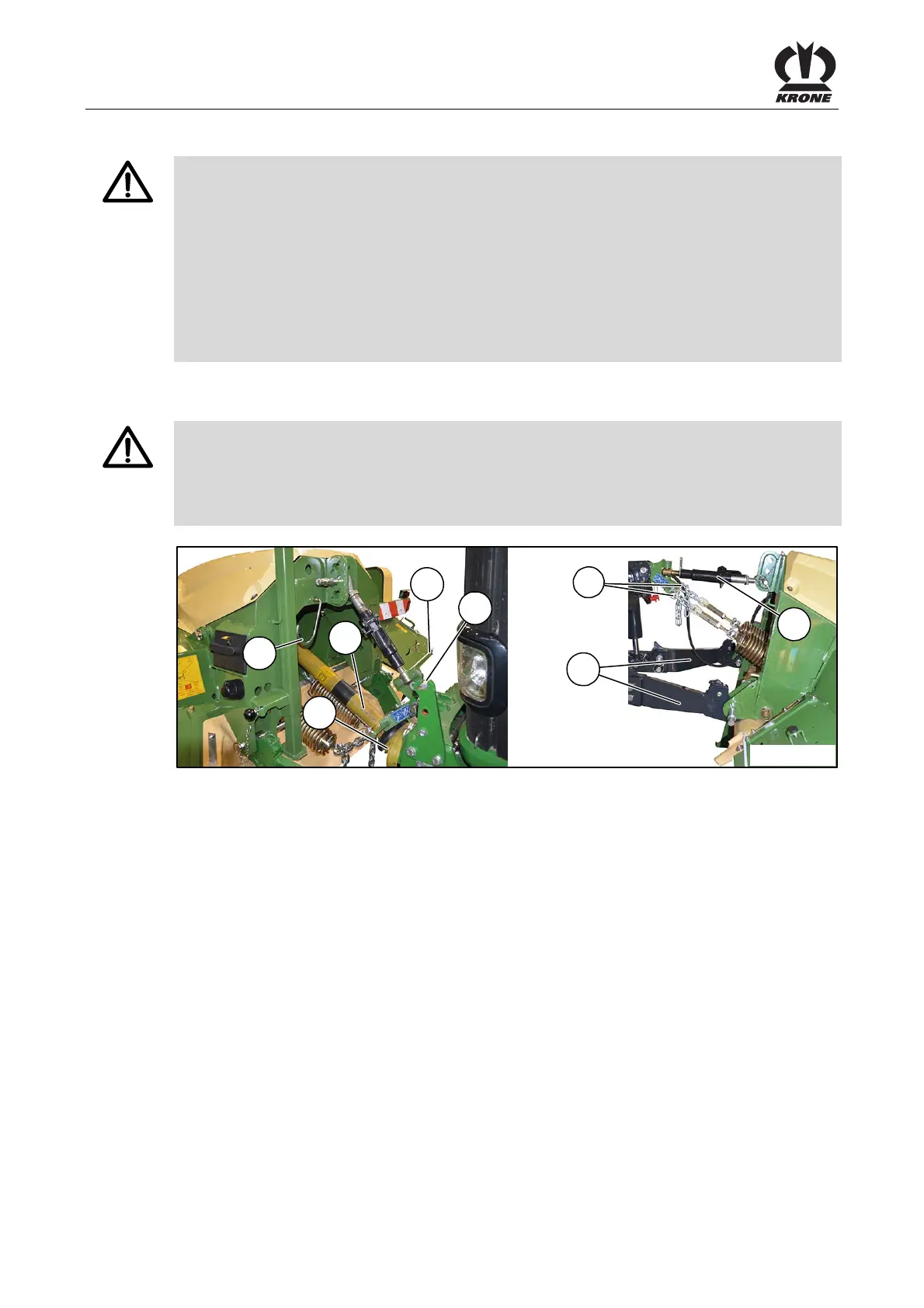

Fig. 38
• Move front mounted mower into transport position.
• Lower parking support.
• Remove supporting chain (1) from the tractor.
• Lower front mounted mower.
• Remove lighting cable on tractor side and put it down on the machine.
• With hydraulically folding side guards design: Disconnect hydraulic hoses on tractor side.
• Remove top link (2) on machine side and fasten it in the support (3) on the tractor.
• Loosen guard cloth (4) on both sides.
• Remove supporting chain (5) of universal shaft on tractor side.
• Remove universal shaft (6) on tractor side and put it down on universal shaft bracket (7).
• Carefully lower front hydraulics (8).
• Carefully move out of the holder.
