Start-up

Pos: 64.39 /Übersc hriften/Überschri ften 2/A-E/Beleuchtung a nschließen @ 33\mod_12 54385308979_78.doc x @ 319105 @ 2 @ 1

7.6 Lighting connection

Pos: 64.40 /BA/Inbetr iebnahme/EasyCut/Be leuchtung/Ansc hluss Beleuchtung Bi ld EC F 360 CV/CR @ 245\mod_1395923526 865_78.docx @ 1914853 @ @ 1

EC-493-0

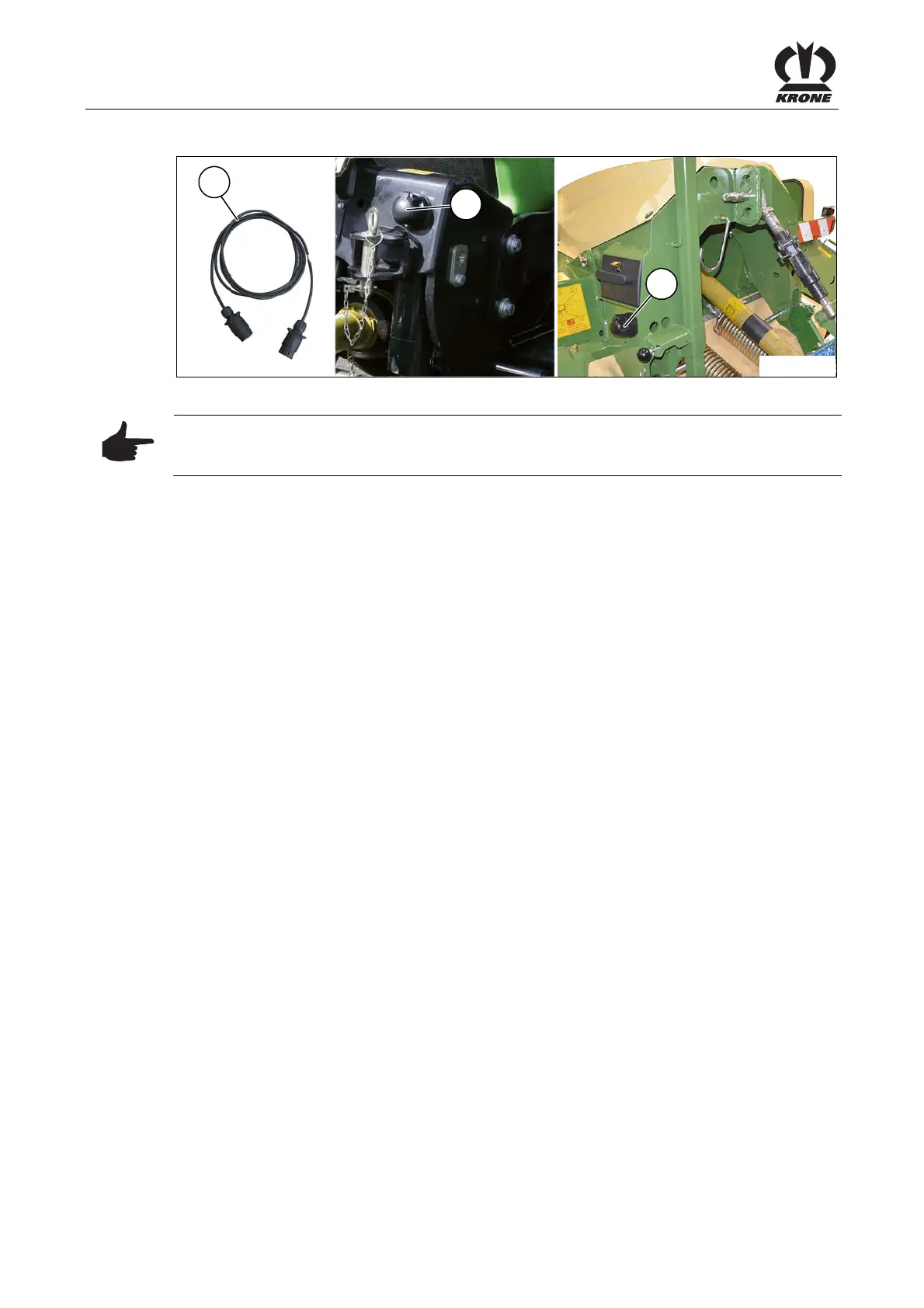

Fig. 29

Pos: 64.41 /Layout Module /----------------Leerzeile 5 Pt.-------------------- @ 120\mod_134259291814 5_0.docx @ 1092566 @ @ 1

Pos: 64.42 /BA/Inbetr iebnahme/Schwader /Hinweis Sauberkei t der Stecker und Steckdose n @ 2\mod_1202399563131_7 8.docx @ 59273 @ @ 1

Note

Before inserting the plugs, make certain the plugs and sockets are clean and dry. Dirt and

moisture may result in short circuits!

Pos: 64.43 /BA/Inbetr iebnahme/Schwader /Anschluss Beleucht ung/Anschluss Beleuc htung Text @ 36\mod_126078 3798936_78.docx @ 336718 @ @ 1

The lighting system is connected via the 7-pin connection cable (1).

To do this:

• Insert the 7-pin plug of the connection cable (1) into the relevant socket (2) of the tractor.

• Insert the 7-pin connection cable plug (1) into the appropriate socket (3) of the machine.

• Position the cable so that it will not come in contact with the wheels.

Pos: 64.44 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0. docx @ 4165 @ @ 1
