Krone EasyCut F 360 CV User Manual

Maintenance - Gearbox
91
Pos: 80 /Überschrif ten/Überschrif ten 2/U-Z/Winkelgetri ebe @ 0\mod_1197005918299_ 78.docx @ 15435 @ 3 @ 1
12.2 Angular gearbox
Pos: 81 /Abkürzungen / CV-Ausführung @ 95\mod_ 1328530180147_78.doc x @ 799128 @ @ 1
CV-Design
Pos: 82 /BA/Wartung/ Hinweis Ölstandskon trolle in Arbeitsstel lung und in waagerechter Stellung der Maschine vornehmen @ 194\mod_1383554 973754_78.doc x @ 1649577 @ @ 1
Note
Perform oil level check and oil change while the machine is in a horizontal position!
Pos: 83 /BA/Wartung/ Ölkontrolle_Wec hsel/Mähwerke/Wi nkelgetriebe EC F 360 CV Bild @ 248\mod_139 6592486182_78.doc x @ 1932134 @ @ 1
EC-522-0
1
2

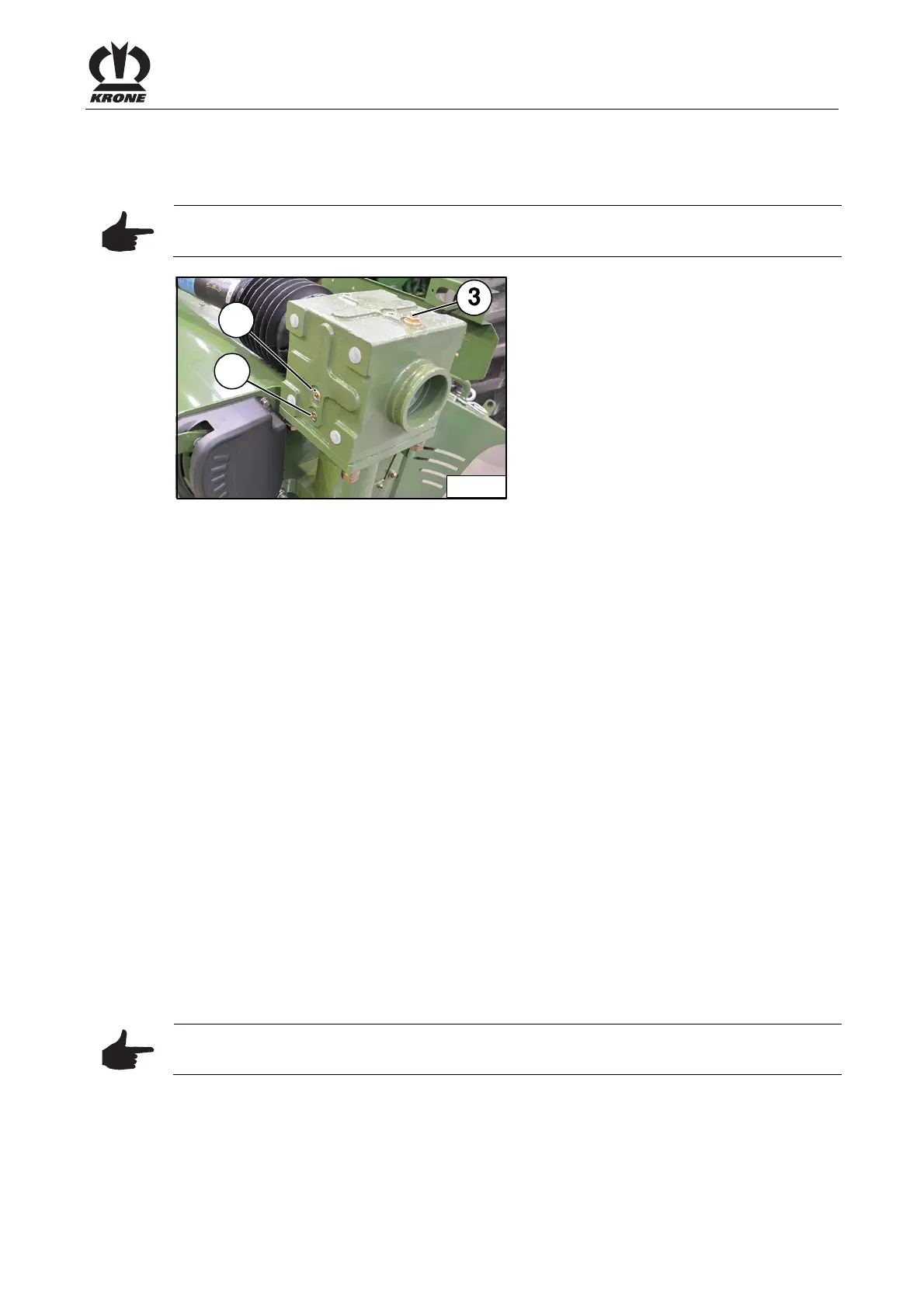

Fig. 56
Pos: 84 /BA/Wartung/ Ölkontrolle_Wec hsel/Ölwechsel / Ölkon trolle:Legende zu Grafi k Kontrollschraube / Ablassschraube / Einf üllschraube @ 194\mod_138 3288259662_78.doc x @ 1647783 @ @ 1
1) Inspection screw / control hole 2) Drain plug
3) Filler plug / oil filling hole
Pos: 85 /BA/Wartung/ Ölkontrolle_Wec hsel/Ölqualität /Ölmen ge: siehe Kapitel Technisc he Daten @ 134\mod_1350483 480921_78.doc x @ 1188085 @ @ 1
Oil Quality / Amount of Oil: Refer to Chapter Technical Data “Lubricants”
Pos: 86 /BA/Wartung/ Ölkontrolle_Wec hsel/Ölkontrolle / Ölwec hsel Intervall: siehe Ka pitel Wartung „W artungstabelle“ @ 134\mod_13 50483605921_7 8.docx @ 1188115 @ @ 1
Interval for oil level check and oil change: refer to chapter Maintenance “Maintenance Table”
Pos: 87 /BA/Wartung/ Ölkontrolle_Wec hselÖlkontrolle NEU über K ontrollschraube @ 140\ mod_1355141753680_78. docx @ 1244582 @ @ 1
Oil level check:
• Screw out inspection screw.
• Oil level up to control hole.
If the oil reaches the control hole:
• Screw in the inspection screw and tighten it securely.
If the oil does not reach the control hole:
• Screw out filler plug.
• Top up oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
Pos: 88 /BA/Wartung/ Ölkontrolle_Wec hselÖlwechsel NEU @ 140\mod_1 355142057277_78.d ocx @ 1244610 @ @ 1
Oil change:
Collect escaping oil in a suitable container.
• Screw out oil drain plug and drain the oil.
• Screw out inspection screw and filler plug.
• Screw in oil drain plug and tighten it securely.
• Top up new oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
Pos: 89 /BA/Wartung/ Ölkontrolle_Wec hsel/Hinweis - Altöl ordn ungsgemäß entsorgen @ 0\mo d_1197008117002_78.doc x @ 15550 @ @ 1
Note
The used oil must be disposed of correctly
Pos: 90 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
