7.4.1 Trailed Design
Pos: 64.33 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Anbau und Ei nstellung der Entlast ungsfedern EC F 360 gezogen Bi ld @ 245\mod_1395916776026_ 78.docx @ 1914270 @ @ 1
EC-491-0
2
1

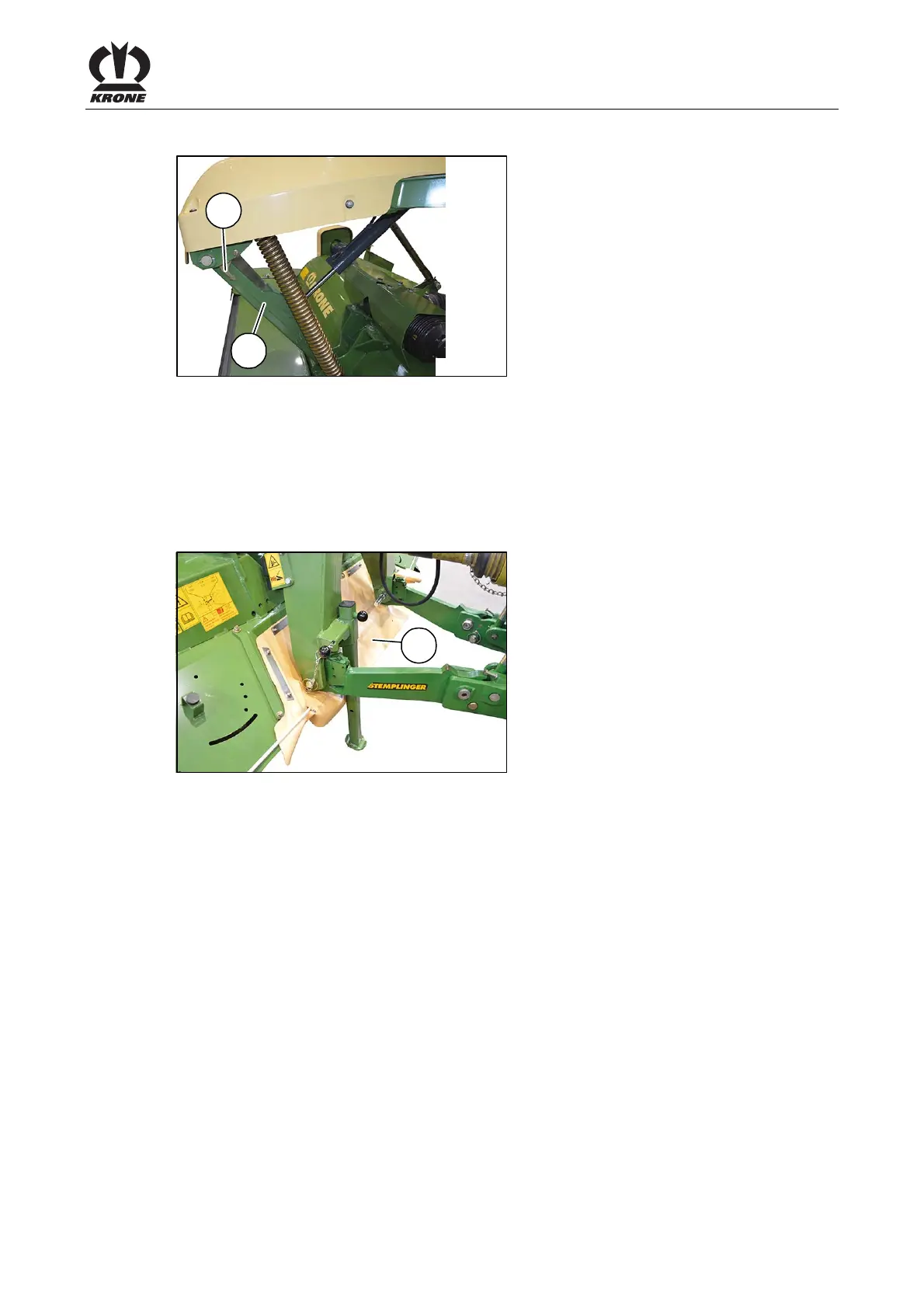

Fig. 27
Pos: 64.34 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Anbau EC F 360 gezo gen Text @ 248\mod_1396516 596602_78.doc x @ 1930203 @ @ 1
Mounting trailed machines
• Move the mowing unit to working position.
• Set the cutting height, refer to Settings “Setting the Cutting Height”.
• Lower front hydraulics until the arrow head (1) points on centre link (2).
Pos: 64.35 /Übersc hriften/Überschri ften 2/P-T/Schutztuc h spannen @ 248\mod_13965113 42845_78.docx @ 1929282 @ 2 @ 1
7.5 Tensioning Guard Cloth
Pos: 64.36 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Schutz tuch spannen EC F 360 Bild @ 248\mod_13 96507762276_78.doc x @ 1928999 @ @ 1
EC-518-0
1
Fig. 28
Pos: 64.37 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Schtuz tuch spannen EC F 360 CV Text @ 248\ mod_1396507907275_78. docx @ 1929028 @ @ 1
• Every time before using the mower, tension the guard cloth (1) so that it cannot be caught
by the CV roller.
