Commissioning

Pos: 62.11 /Übersc hriften/Überschri ften 2/A-E/Anbau an den Trak tor @ 0\mod_1199717845194_ 78.docx @ 34039 @ 2 @ 1

6.4 Mounting onto the Tractor

Pos: 62.12 /Übersc hriften/Überschri ften 3/K-O/Kuppelpunkt e @ 9\mod_1220531326398_7 8.docx @ 126608 @ 2 @ 1

6.4.1 Clutching points

Pos: 62.13 /BA/Er stinbetriebnahme/Easy Cut/Kuppelpunkte/ Unterlenker @ 236\mod _1394446154303_78.doc x @ 1871601 @ @ 1

Lower links

Pos: 62.14 /Abkürzun gen /Abkürzungen Beschr eibung/EasyCut geschob en @ 327\mod_14260802 72248_78.docx @ 2506386 @ @ 1

EasyCut pushed

Pos: 62.15 /BA/Inbetr iebnahme/EasyCut/Vor bereitung am Trak tor Bild EC F 360 CV/CR geschoben @ 243\ mod_1395736145610_78. docx @ 1905942 @ @ 1

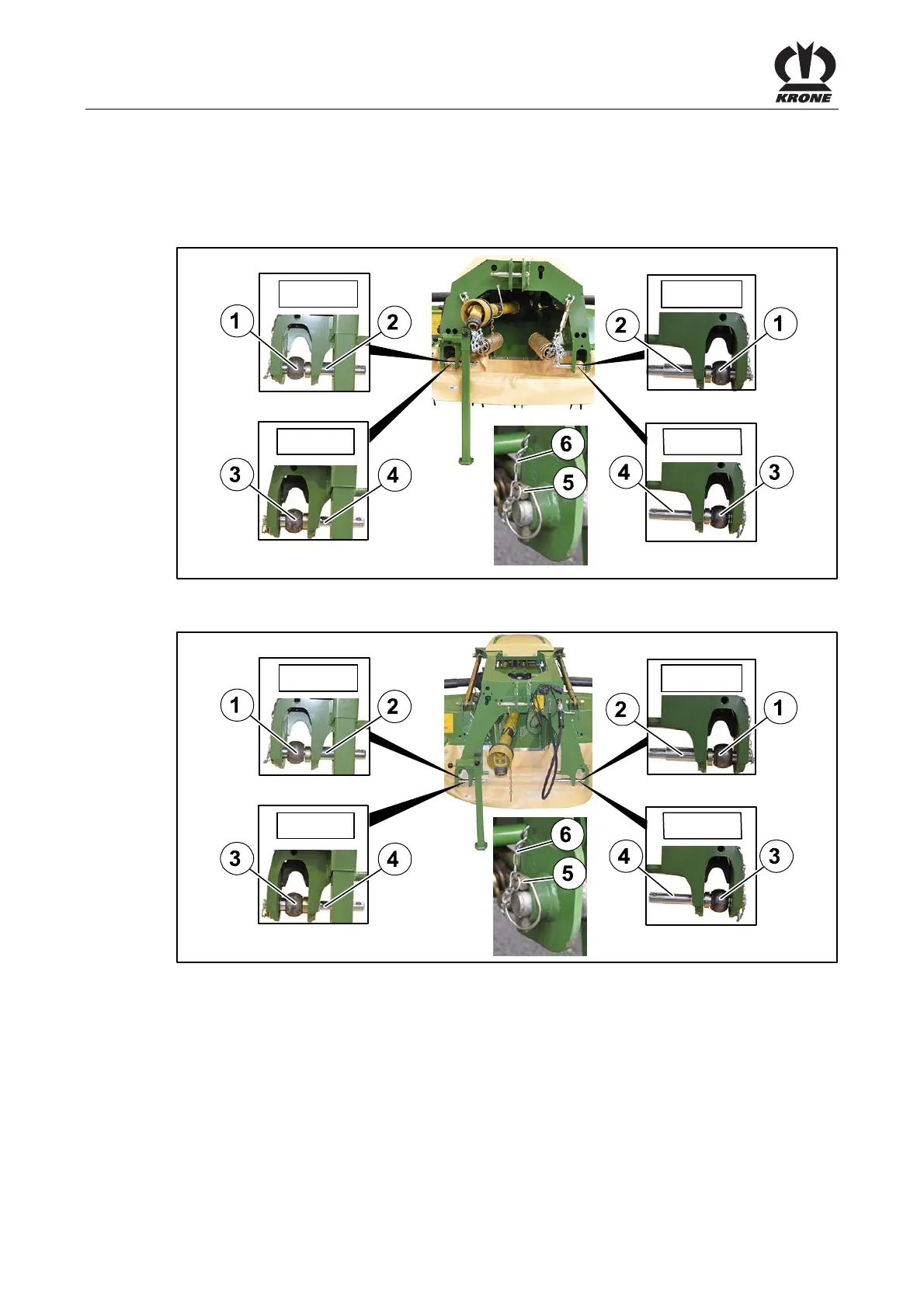

EC-484-0

Kat.II

Kat.III

Kat.II

Kat.III

Fig. 14

Pos: 62.16 /Abkürzun gen /Abkürzungen Beschr eibung/EasyCut gezogen @ 327\mod_1426080348 028_78.docx @ 2506417 @ @ 1

EasyCut trailed

Pos: 62.17 /BA/Inbetr iebnahme/EasyCut/Vor bereitung am Trak tor Bild EC F 360 CV/CR gezogen @ 244\ mod_1395760597843_78. docx @ 1907909 @ @ 1

EC-485-0

Kat.II

Kat.III

Kat.II

Kat.III

Fig. 15

Pos: 62.18 /BA/Er stinbetriebnahme/Easy Cut/Kuppelpunkt e/Kuppelpunkte Text Easy Cut Kat II und III @ 223\mod_13921247394 08_78.docx @ 1810172 @ @ 1

For EasyCut, the three-point coupling is designed for category II and III.

EasyCut is prepared as standard for category II.

• Mount ball sleeve (1) category II on lower link bolt (2).

• Secure lower link bolt with linch pin (4) and safety chain (5).

Refitting to category III:

• Pull out lower link bolt (2) and install it again rotated by 180 degrees (the longer pin must

face outwards).

• Install the ball sleeve (3) category III on the lower link bolt (2).

• Secure lower link bolt with linch pin (4) and safety chain (5).
