Start-up
53
Pos: 64.6 /BA/Er stinbetriebnahme/EasyCu t/Kuppelpunkte/ Oberlenker @ 236\mod_139 4445969901_78.doc x @ 1871543 @ @ 1

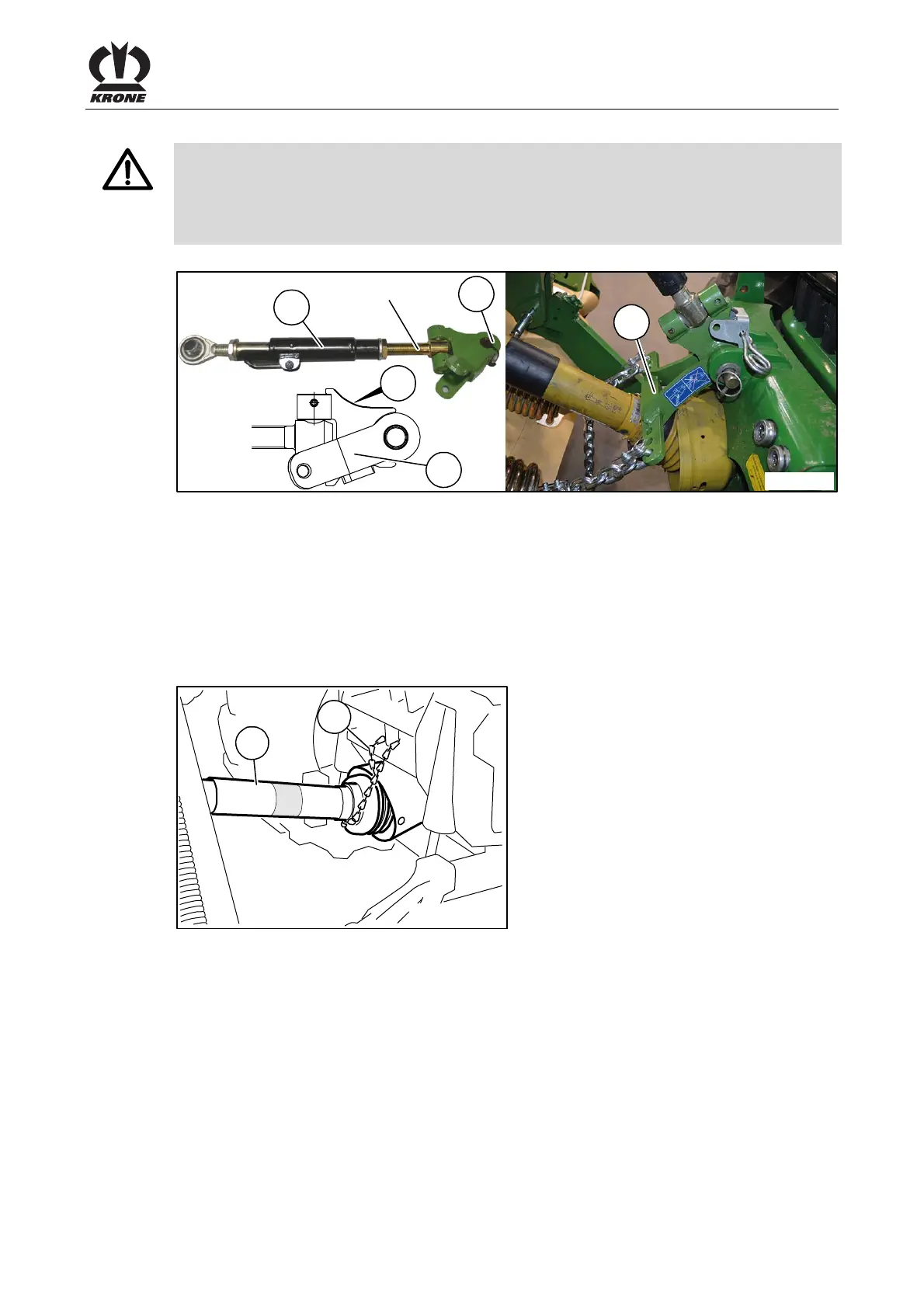

Top link
Pos: 64.7 /BA/Er stinbetriebnahme/EasyC ut/EasyCut 32 CV Float/ WARNUNG - Oberlenkergabel falsch angebaut @ 180\m od_1376383491102_ 78.docx @ 1544935 @ @ 1
WARNING!
If the top link fork has been fitted incorrectly, the threaded spindle may break and the
machine may disconnect unintentionally and cause serious injuries.
When fitting the top link fork, make certain that the rounded off side (X) points upward and that
the fork (3) below the straight side is attached onto the top link fork.
Pos: 64.8 /BA/Er stinbetriebnahme/EasyCu t/F 360 CV/CR/Oberlen kergabel montieren Bild F 36 0 CV/CR @ 244\mod_1395762 840133_78.docx @ 1908701 @ @ 1
EC-486-0
2
1
x
M30x3,5
3
3
Fig. 20
Pos: 64.9 /BA/Er stinbetriebnahme/EasyCu t/EasyCut 32 CV Float/ Oberlenkergabel montier en Text @ 181\mod_137700 6979231_78.doc x @ 1553293 @ @ 1
• Screw the top link fork (1) (order no. 20 035 149 0) into the top link M 30 x 3,5 (2) (optional
telescopic upper suspension arm).
• Attach the fork (3) below the straight side onto the top link fork.
• Install the top link fork with the rounded off side (X) to the top on tractor side.
• Make certain via visual inspection that the forks (3) point downward.
Pos: 64.10 /Übersc hriften/Überschri ften 2/F-J/Gelenkwel le montieren @ 2\mod_12023983 42788_78.docx @ 59253 @ 2 @ 1
7.2 Install the PTO shaft
Pos: 64.11 /BA/Inbetr iebnahme/EasyCut/An bau Gelenkwelle/ Zwischengelenkwell e/Anbau Gelenkwelle EC F 360 CV/ CR @ 245\mod_139592836050 7_78.docx @ 1915241 @ @ 1
AFA-0-005
2
1
Fig. 21
• Slide universal shaft (1) onto PTO shaft end of the tractor and secure it.
• Secure universal shaft guard with retaining chain (2) against turning.
