14 Maintenance – lubrication chart
Pos: 109.2 /Übersc hriften/Überschri ften 2/P-T/Spezielle Sic herheitshinweise @ 0\ mod_1196660495760_78. docx @ 9134 @ 2 @ 1
14.1 Special Safety Instructions
Pos: 109.3 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Warnung - Reparatur_W artung_Reinigungs_4 al lgemein EasyCut @ 292\ mod_1410941423112_78. docx @ 2299026 @ @ 1
WARNING!
When performing repair, maintenance or cleaning work or in case of technical
intervention, drive elements may start moving (caution: cutting discs continue to run).
Effect: Danger to life, injuries or damage to the machine.
• Turn off the PTO shaft.
• Move the machine to the working position and lower it to the ground.
• Switch off the engine of the tractor, remove the ignition key and carry it with you.
• Secure the tractor against accidental start-up and against rolling.
• After the repair, maintenance, cleaning work or technical modifications are completed,
mount all protective covers and safety devices properly again.
• Avoid skin contact with oils, greases, cleaning agents and solvents.
• In the event of injuries or burns due to oils, cleaning agents or solvents, contact a physician
immediately.
• All other safety instructions must also be followed to avoid injuries and accidents.
Pos: 109.4 /Übersc hriften/Überschri ften 2/A-E/Antriebsge lenkwelle @ 116\mod_1340 698247730_78.doc x @ 1018167 @ 2 @ 1
14.2 Universally-Jointed Drive Shaft
Pos: 109.5 /BA/W artung/Gelenkwelle sch mieren/Abschmieren Gele nkwelle EasyCut 100 h @ 44\mo d_1275544141265_78.doc x @ 392033 @ @ 1

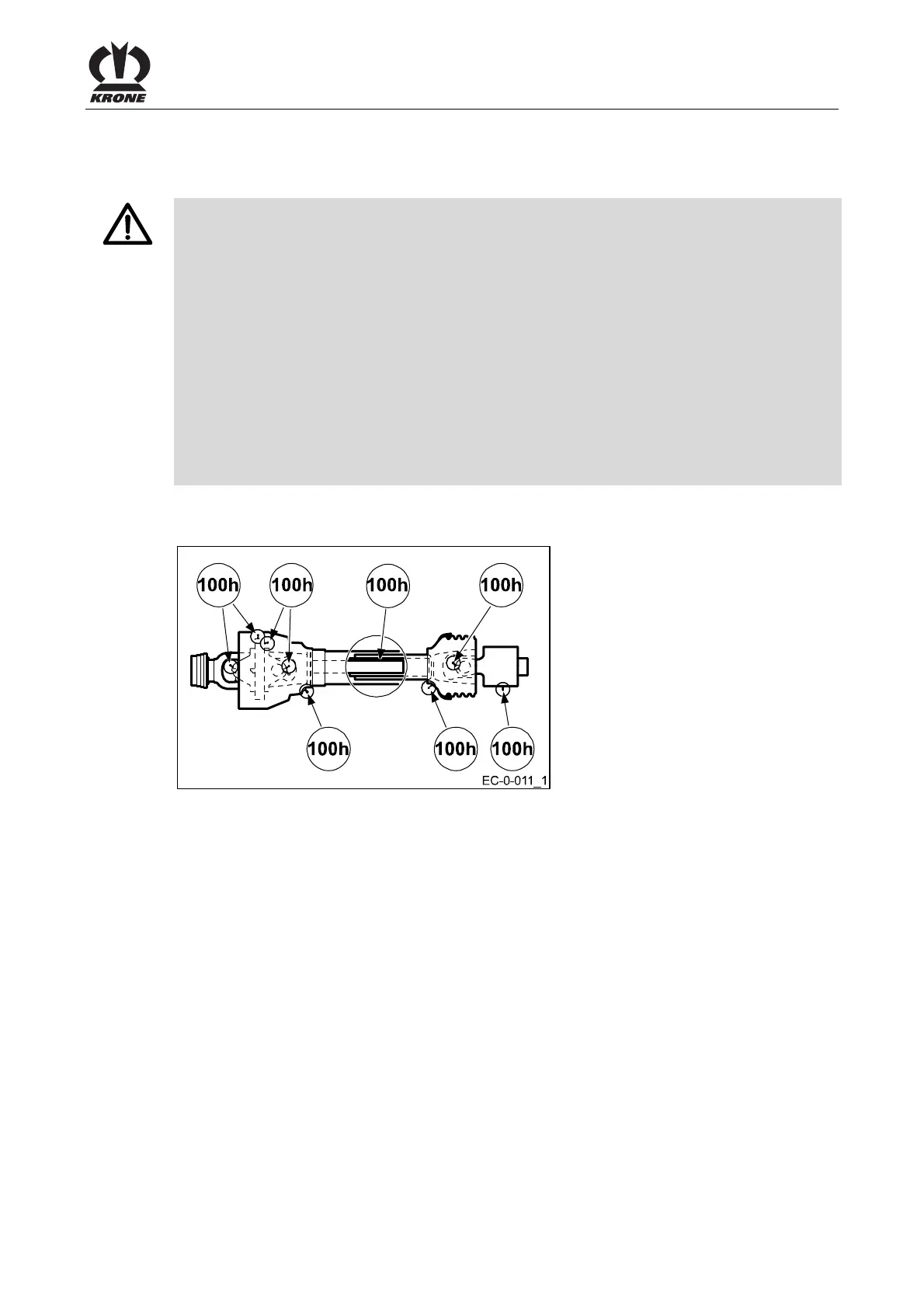

Fig. 74
Lubricate the PTO shafts at the intervals indicated in the drawing with a multi-purpose grease.
Follow the operating instructions of the PTO shaft manufacturer.
