Operation

Pos: 68.12 /Übersc hriften/Überschri ften 2/P-T/Schutze in Tra nsportstellung bri ngen EC F 320 CV @ 236\mod_1394440 817790_78.docx @ 1870726 @ 2 @ 1

9.4 Moving Guards into Transport Position

Pos: 68.13 /BA/Bedienun g /EasyCut/Schutz e/Schutze in Transports tellung bringen / hy draulische Außenschutze EC F 320 C V @ 236\mod_139444024950 7_78.docx @ 1870638 @ @ 1

With hydraulic outer guards design

• Fold up the outer guards of the tractor by using the double-action control unit (red1/blue1).

Pos: 68.14 /Übersc hriften/Überschri ften 2/A-E/Abstells tütze @ 17\mod_123631785115 1_78.docx @ 204315 @ 2 @ 1

9.5 Parking support

Pos: 68.15 /BA/Bedienun g /EasyCut/Abste llstütze/Achtung Abst ellstütze muss einge schoben sein @ 72\mod_130 7513370887_78.doc x @ 651311 @ @ 1

Caution! -Parking support not pushed in!

Effect: Damage to the machine

• Make certain before road/transport travel and for work that the parking support is pushed in

and secured

Pos: 68.16 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze ein-/ ausgekla ppt Bild EC F 360 CV/CR @ 245\mod_13 95935991145_78. docx @ 1915631 @ @ 1

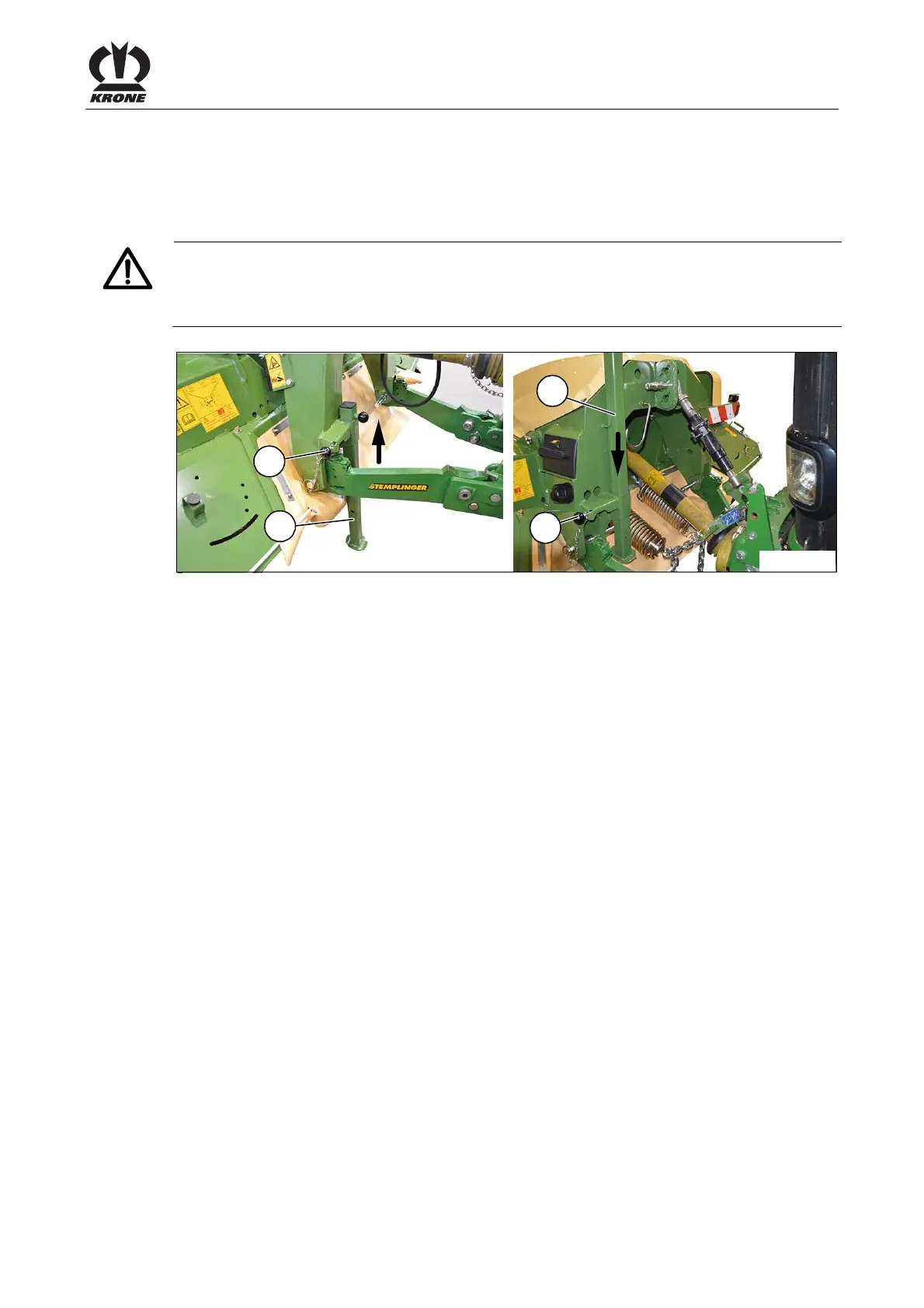

EC-497-0

Fig. 37

Pos: 68.17 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze einschieben / herunterlassen ausgek lappt Text EC F 320 CV/360 CV/ CR @ 235\mod_1394435243810_ 78.docx @ 1870255 @ @ 1

• Raise the machine via tractor hydraulics.

• Switch off tractor engine, remove the ignition key and carry it with you.

Lowering the parking support

• Pull bolt (1), lower parking support (2) and secure with bolt (1).

• Lower machine via tractor hydraulics.

Pushing in the parking support

• Pull bolt (1), push in parking support (2) and secure with bolt (1).
