Krone EasyCut F 360 CV User Manual

Start-up
55
Pos: 64.20 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Anbau mit Sp anschloss EC F 360 geschobe n Bild @ 250\mod_139694881 5816_78.docx @ 1936768 @ @ 1
EC-513-0
3
1
2
4
5

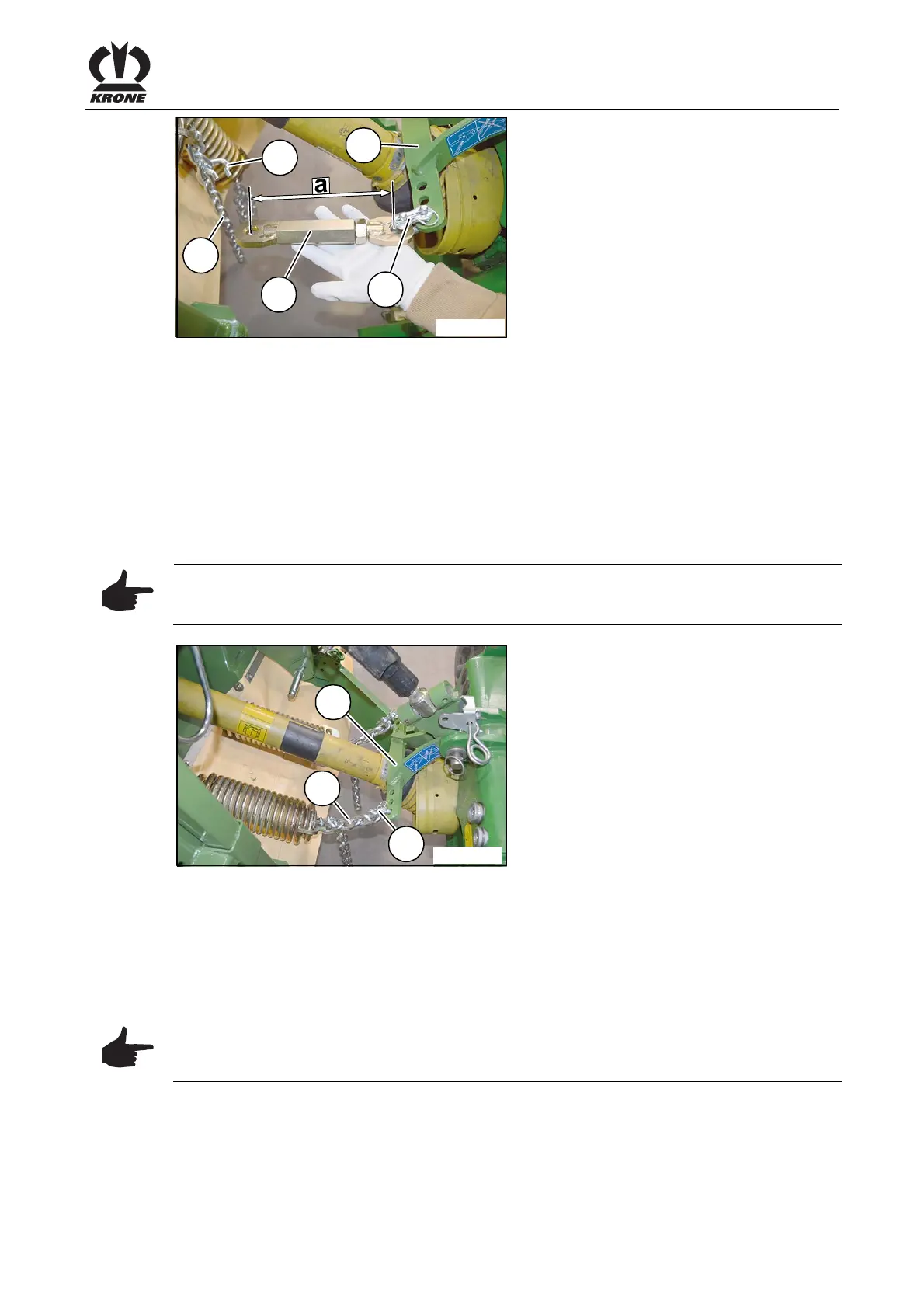

Fig. 24
Pos: 64.21 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Anbau mit Sp annschloss EC F 360 geschob en Text @ 244\mod_13957633 46385_78.docx @ 1908838 @ @ 1
Fitting with tension jack
• Mount tension jack (1) with connecting link (3) on the clevis of top link (2).
• Hinge relief springs on both sides with the same length.
• Set the tension jack to a maximum value of a = 230 mm.
• Raise mowing unit, switch off tractor engine, remove the ignition key and carry it with you.
• Fasten the chain (4) as short as possible with connecting link (5) on the tension jack (1).
• Lower mowing unit into mowing position.
Pos: 64.22 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Übersc hüssige Kette abtrenn en EC F 360 CV Text @ 245\mod_139591258 5351_78.docx @ 1913766 @ @ 1
• Separate surplus chain and fasten it at a suitable point.
Pos: 64.23 /BA/Inbetr iebnahme/EasyCut/ Hinweis Entlastungsf edern einstellen 35° @ 245\ mod_1395914748947_78. docx @ 1914099 @ @ 1
Note
In mowing position, the inclination of the relief spring chain should be approx. 35° in mowing
position.
Pos: 64.24 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Anbau ohne Spa nschloss EC F 360 geschobe n Bild @ 250\mod_139694911 9980_78.docx @ 193679 7 @ @ 1
EC-514-0
2
3
4
Fig. 25
Pos: 64.25 /BA/Er stinbetriebnahme/Easy Cut/F 360 CV/CR/Anbau ohne Spa nnschloss EC F 360 geschob en Text @ 248\mod_13965143 00230_78.doc x @ 1929938 @ @ 1
Fitting without tension jack
• Raise mowing unit, switch off tractor engine, remove the ignition key and carry it with you.
• Fasten the chain (4) as short as possible with connecting link (3) on the tension jack clevis
(2).
• Lower mowing unit into mowing position.
Pos: 64.26 /BA/Inbetr iebnahme/EasyCut/ Hinweis Entlastungsf edern einstellen 35° @ 245\ mod_1395914748947_78. docx @ 1914099 @ @ 1
Note
In mowing position, the inclination of the relief spring chain should be approx. 35° in mowing
position.
