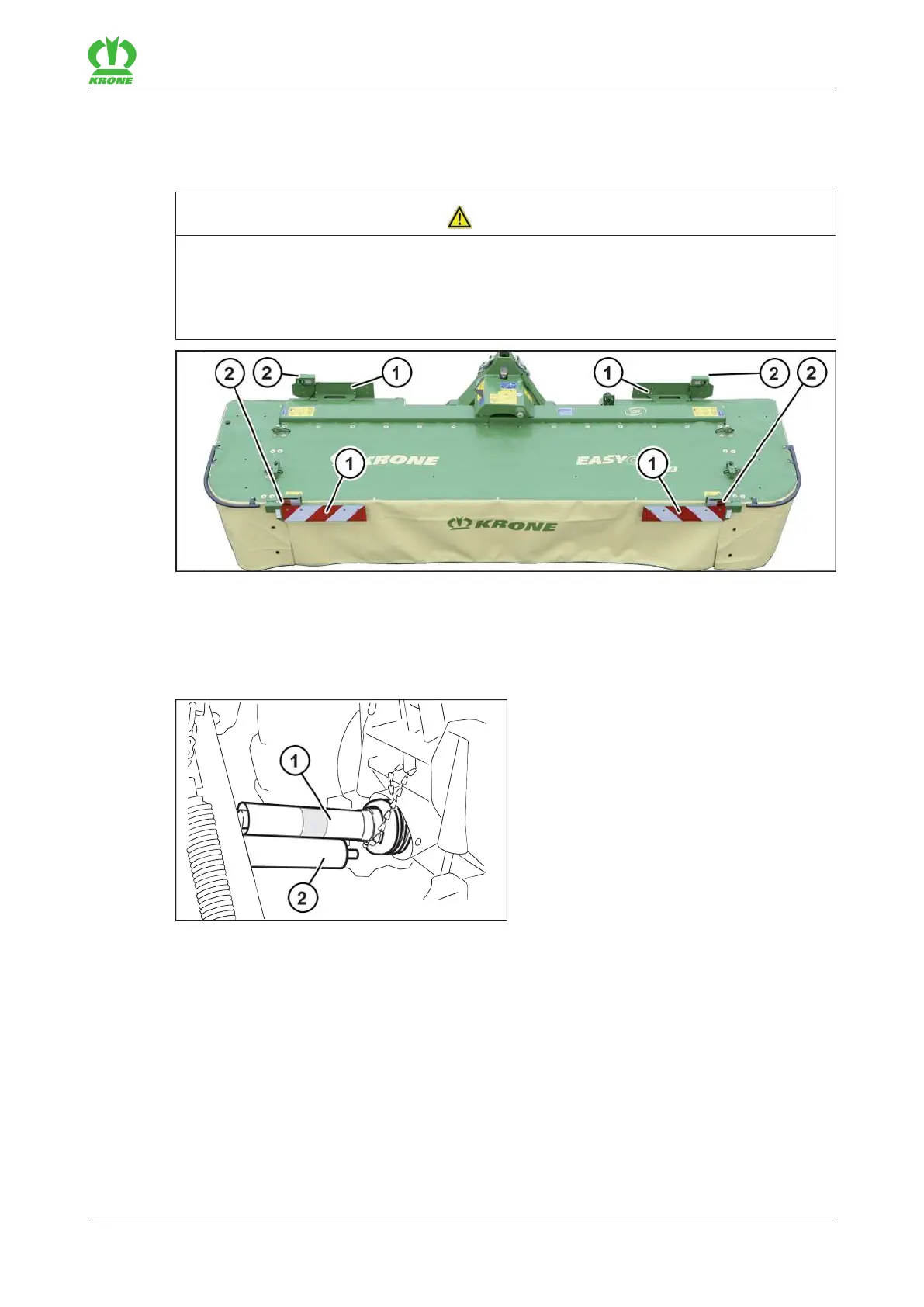

Krone EasyCut F 360 - Mounting Onto the Tractor

Start-up
37
Pos: 94.6 /Übersc hriften/Übersc hriften 2/A-E/A Anbau an d en Traktor @ 0\ mod_11997178 45194_78.doc x @ 34039 @ 2 @ 1
7.2 Mounting onto the Tractor
Pos: 94.7 /BA/In betriebnahme/E asyCut/Vorbereit ung am Tra ktor Bild EC 28/32 @ 10\ mod_122173178613 0_78.docx @ 1 36570 @ @ 1
1
3
2
Fig.
14
Pos: 94.8 /BA/In betriebnahme/E asyCut/WARNUNG - ungeeig neten Federste cker für das Ku ppeldreieck (W eiste-Dreiec k)verwendet @ 136\mod_135 2385119522_78 .docx @ 120852 7 @ @ 1
WARNING!
When using a spring clip which is not suitable, the triangle linkage (Weiste triangle) can
uncouple unintentionally. This can cause serious accidents.
Only use suitable spring clips for securing the triangle linkage.
Pos: 94.9 /BA/In betriebnahme/E asyCut/Vorbereit ung am Tra ktor EC 28/32CV 2 8/32 @ 10\ mod_122172 8655208_78.doc x @ 136257 @ @ 1
• Carefully position the tractor with Weiste triangle (2) in front of the holder (1) of the front-
mounted disc mower.
• The tension spring (3) must not be inside the holder
• Connect the Weiste triangle (2) to the holder (1)
• Set the distance between the ratchet mechanism (4) and latch (5) by adjusting the ratchet
mechanism (4) to 1 mm (using the adjusting screw (7))
• Secure Weiste triangle (2) with spring cotter pin (6).
Pos: 94.10 /BA/I nbetriebnahme/ EasyCut/Achtung Abstand der M aschine zu m Traktor zu geri ng @ 89\ mod_1321957875 595_78.doc x @ 756771 @ @ 1
Caution! - The distance between the machine and the tractor is too small
Effect: damage to the tractor or the machine
Check free space for the front wheels at all steering angles. If the guards or swath flaps come
into contact with the front wheels of the tractor, lower suspension arm adapters must be
installed between the lower suspension arm and the Weiste triangle.
